ENGINE DISASSEMBLY / ASSEMBLY
4.112004 Four Stroke PWC Service Manual
DRY SUMP OIL PUMP ASSEMBLY

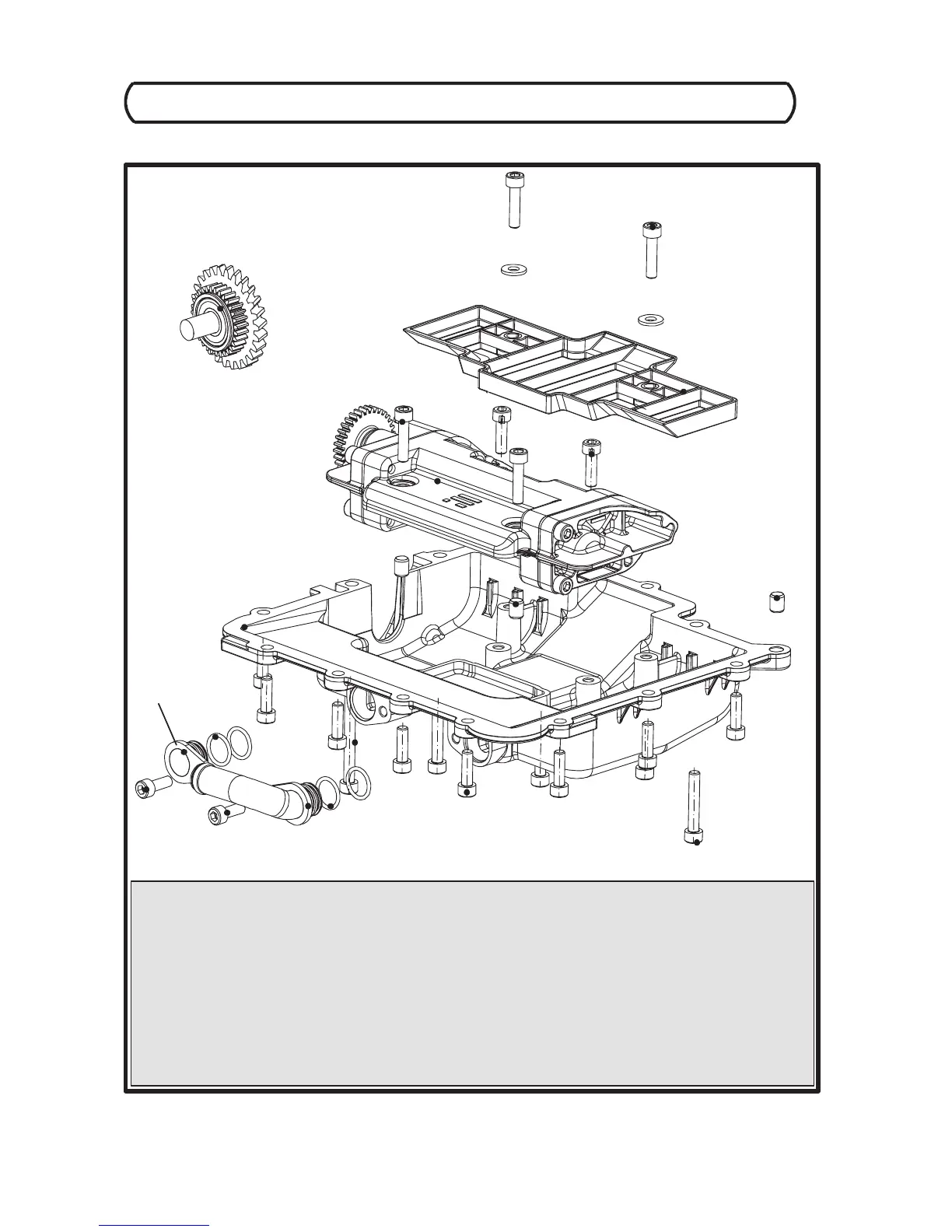

COMPONENT LAYOUT
ASSEMBLY NOTES
Screen Fastener Torque: 7 ft.lbs. (10 Nm) Apply Loctitet 243 to threads.
Oil Pump Fastener Torque: 7 ft.lbs. (10 Nm) Apply Loctitet 243 to threads.
Oil Pump Drive Gear Nut Torque: 28 ft.lbs. (38 Nm) Apply Loctitet 272 to threads.
Plug Fastener Torque: 11 ft.lbs. (15 Nm)
Oil Supply Elbow Fastener Torque: 7 ft.lbs. (10 Nm)
Bedplate Fastener Torque: 7 ft.lbs. (10 Nm)
Clean bedplate and lower crankcase mating surfaces prior to apply silicone. Verify surfaces are free from any oil residue.
Apply a thin bead of Three Bondt 1215 to mating surfaces of bedplate and lower crankcase.
Dry sump oil pump is not serviceable. Replace component if operation is suspect.
FILTER SCREEN
DRY SUMP OIL PUMP
LOWER SUMP BEDPLATE
PLUG
OIL SUPPLY ELBOW (TO OIL COOLER)
DRIVE GEAR
