SPLASH GUARD

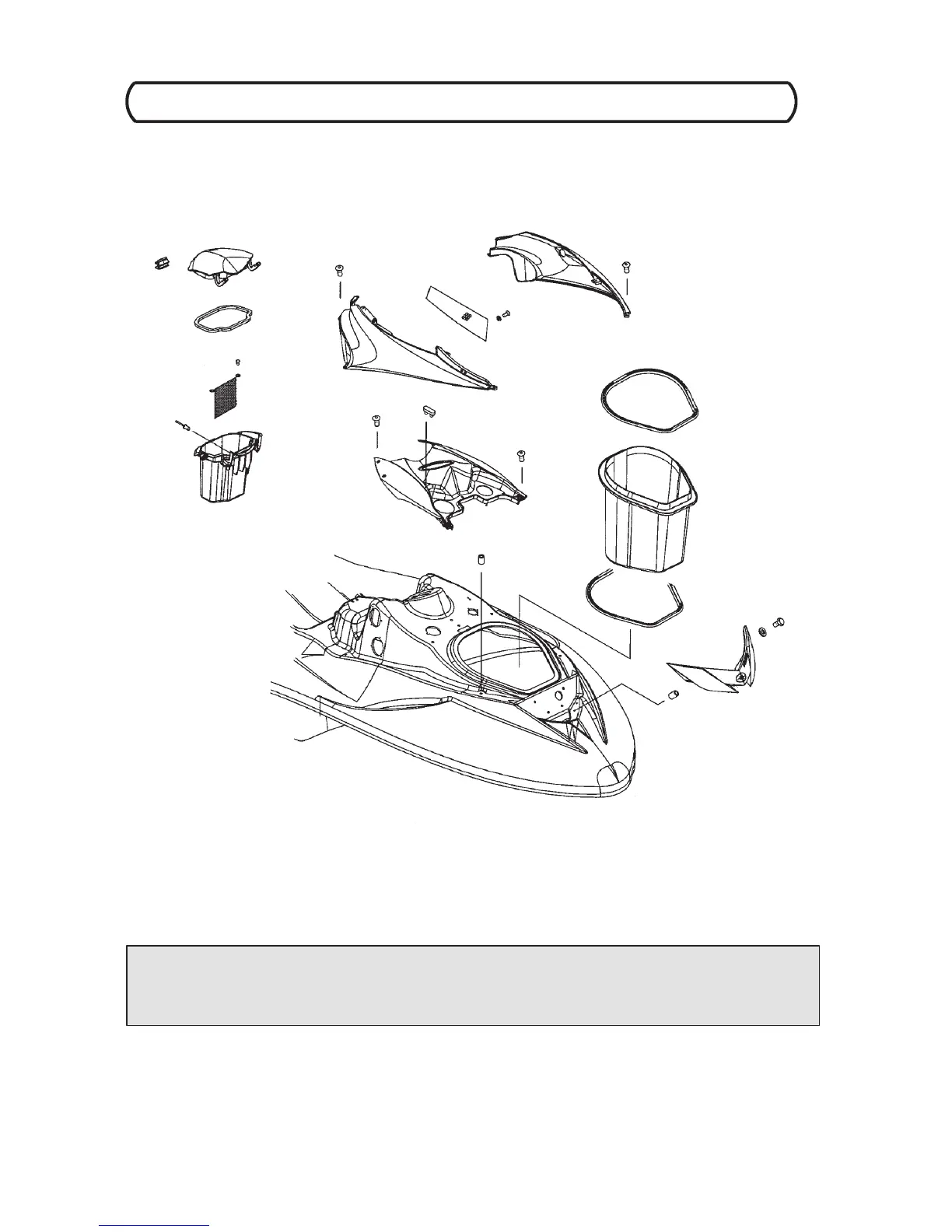

SHROUD AND STORAGE ASSEMBLY NOTES
Splash Guard Fastener Torque: 40 in.lbs. (4.5 Nm)
Side Shrouds -- To -- Upper Shroud Fasteners: 23 ft.lbs. (31 Nm)
Mesh Screen Fastener Torque: 10 in.lbs. (1 Nm)
Shroud Assembly -- To -- Deck Fastener Torque: 5 ft.lbs. (7 Nm)
MESH SCREENS (x2)
SIDE SHROUDS
GLOVE BOX
UPPER SHROUD
HULL AND BODY
7.8
2004 Four Stroke PWC Service Manual
Shroud and Storage Assemblies
