FUEL INJECTION / IGNITION / EXHAUST SYSTEMS
5.332004 Four Stroke PWC Service Manual
Turbocharger

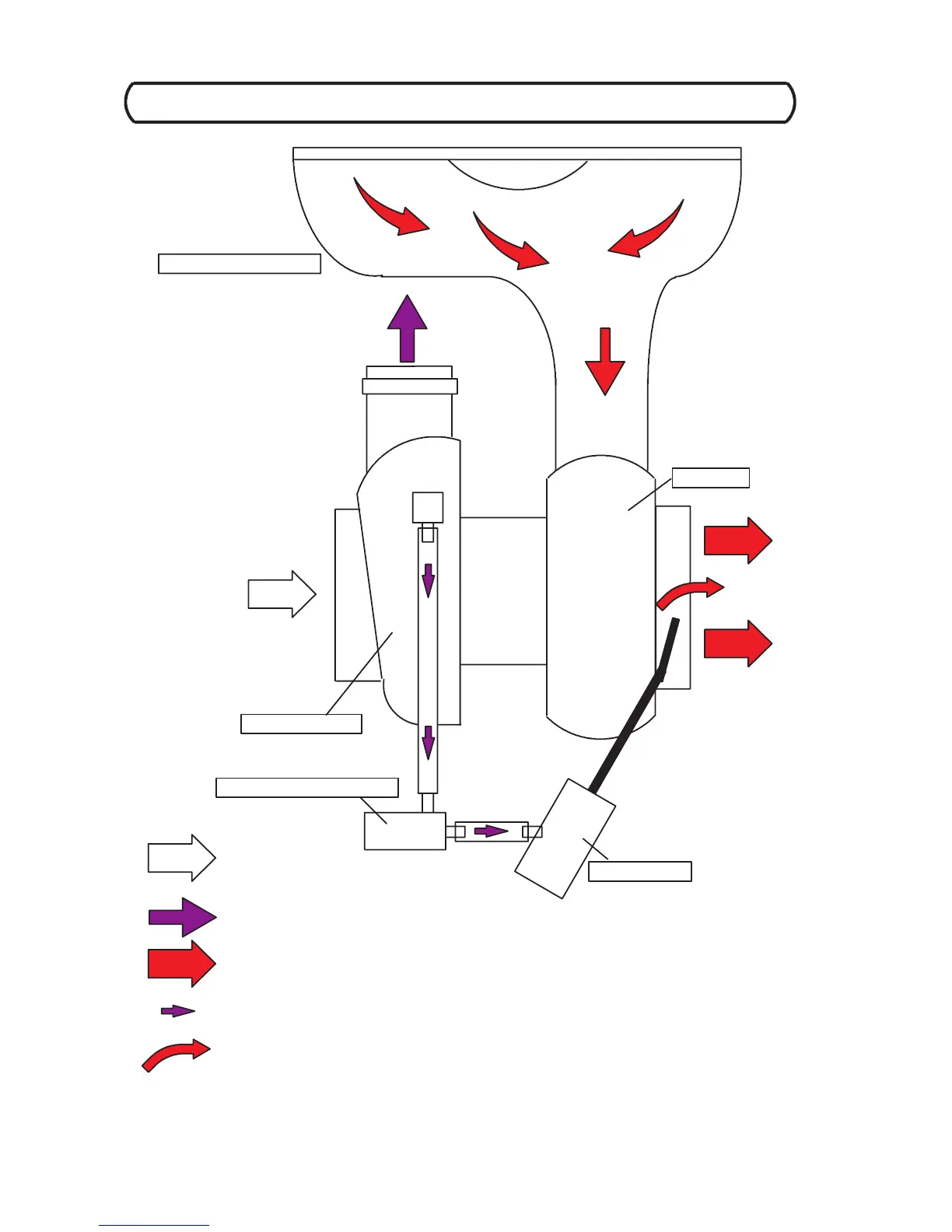

= FRESH AIR
= COMPRESSED AIR
= EXHAUST GASES
= COMPRESSED AIR TO WASTEGATE
= EXHAUST GASES BLED THROUGH WASTEGATE DOOR
COMPRESSOR
TURBINE
WASTEGATE
WASTEGATE SOLENOID
EXHAUST MANIFOLD
