Polaris msx 150 Service Manual

ELECTRICAL SYSTEMS
8.12
2004 Four Stroke PWC Service Manual

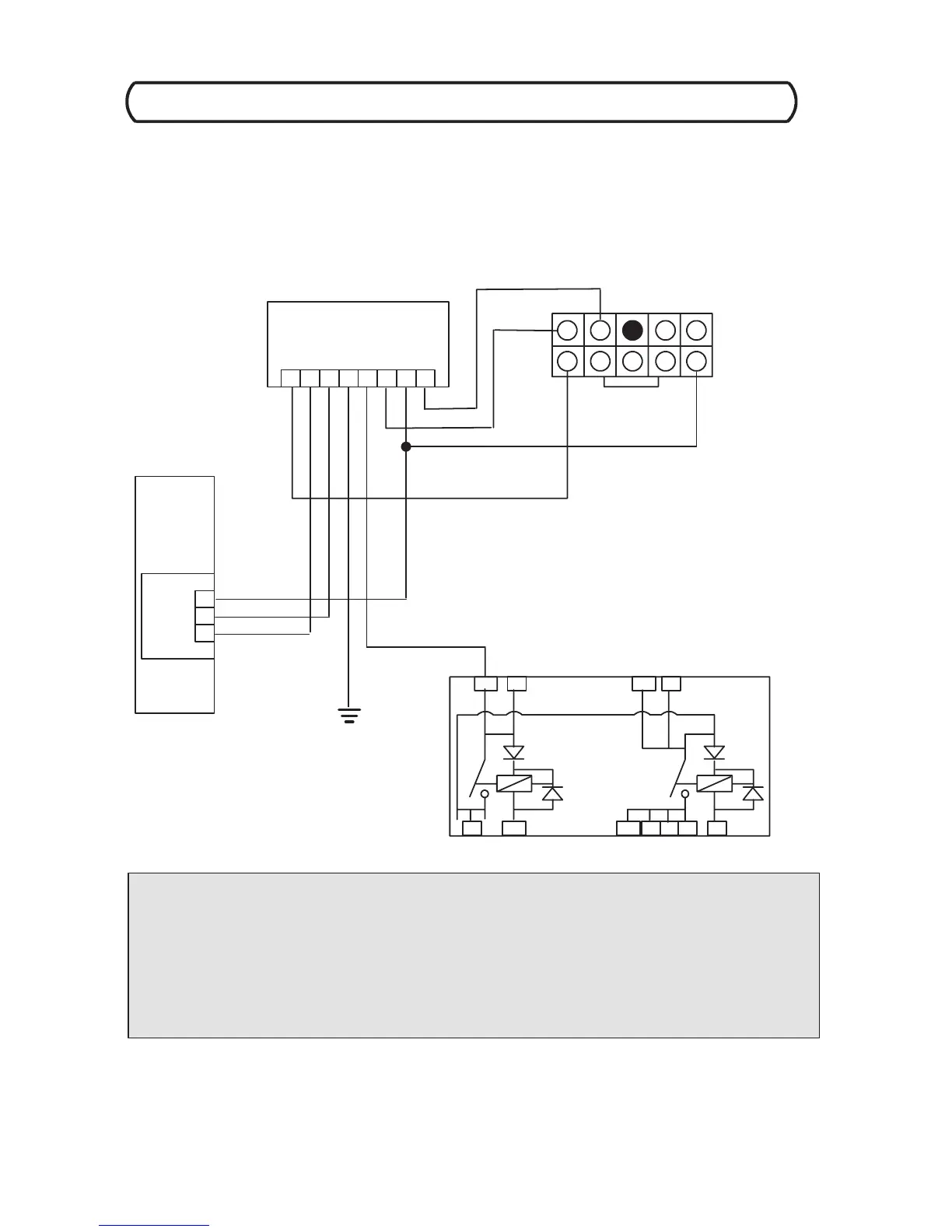

System Interface Box (SIFB)
ECU
ECU 200
E2
B4
J2
RED/YEL
SYSTEM INTERFACE BOX
FEBA CD HG
R1R2
745613102
3 15 8
MAIN RELAY
11
ABDE
KJHGF
ENGINE/CHASSIS HARNESS CONNECTOR
GRN/YEL
BLU/WHT
GRY
RED/PUR
GRY
PURPLE
YEL/GRN
YEL/GRN
BLACK
SYSTEM INTERFACE BOX (SIFB) -- LEGEND
RED/PUR 12V BA TTERY VOLTAGE
BLACK GROUND
GRN/YEL REVERSE SWITCH SIGNAL (FROM IFB)
BLU/WHT IGNITION SWITCHED VOLTAGE (FROM IFB)
GRY TACHOMETER SIGNAL
RED/YEL IGNITION SWITCHED VOLTAGE (FROM START BUTTO N)
YEL/GRN REVERSE SWITCH SIGNAL (FROM REVERSE SWITCH)
PURPLE IGNITION SWITCHED VOLTAGE (FROM TETHER SWITCH)
Rev. A 11/05/2003
