ENGINE DISASSEMBLY / ASSEMBLY
4.232004 Four Stroke PWC Service Manual
Engine Disassembly Process

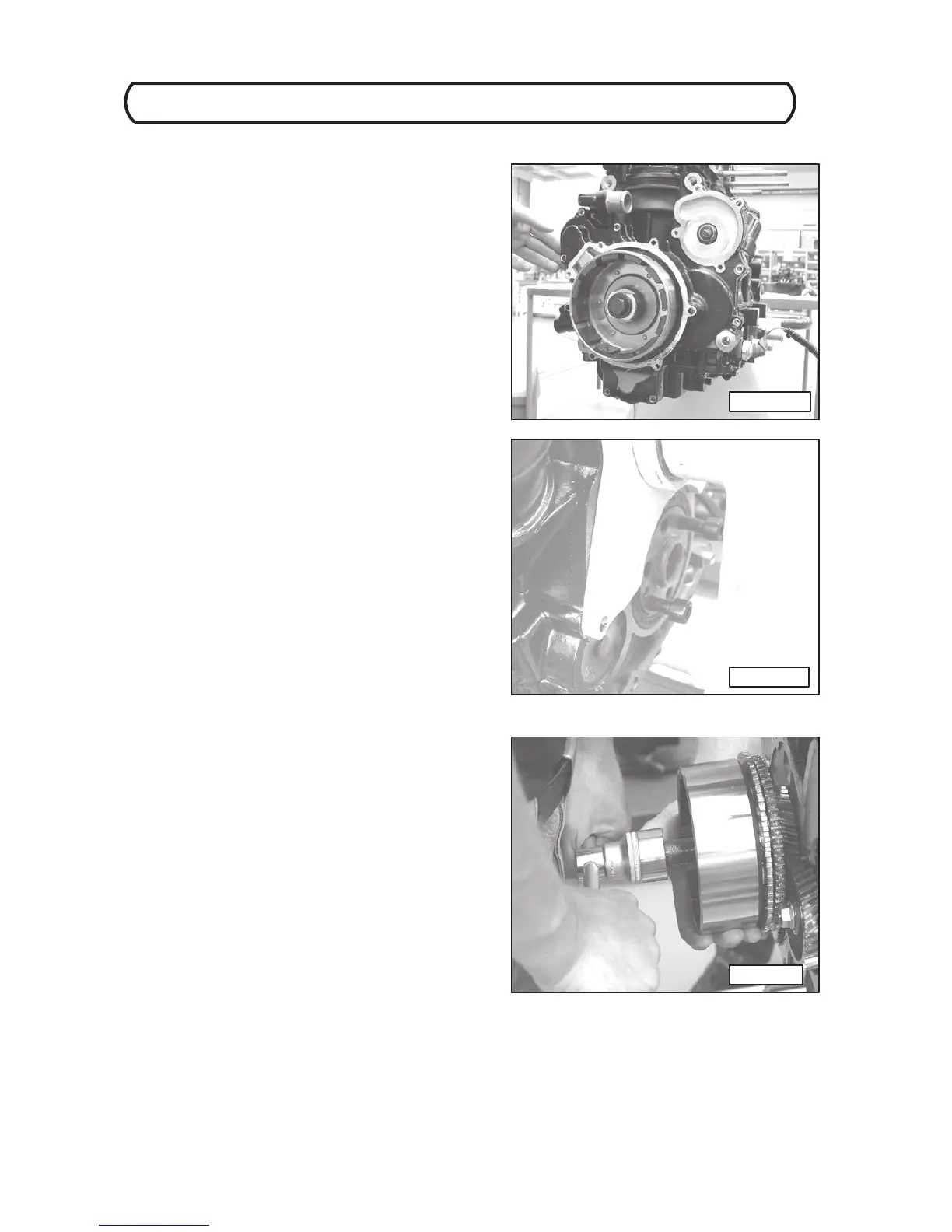

7. Remove the front engine gear cover. (Photo G)
NOTE: Place drain pan underneath cover to catch oil.
8. Install two of the PTO coupler bolts into the PTO--end
of the crankshaft. Have an assistant place a pry bar
across these two bolts to prevent the crankshaft from
rotating. (Photo H)
9. Remove the flywheel bolt and washer from the front of
the engine. Install flywheel puller bolt into flywheel
PN--PW--46989. Carefully tighten puller bolt until
flywheel comes off of crankshaft nose. (Photo I)
10. Remove the flywheel timing key and roller bearings
from crankshaft.
