133
Maintenance

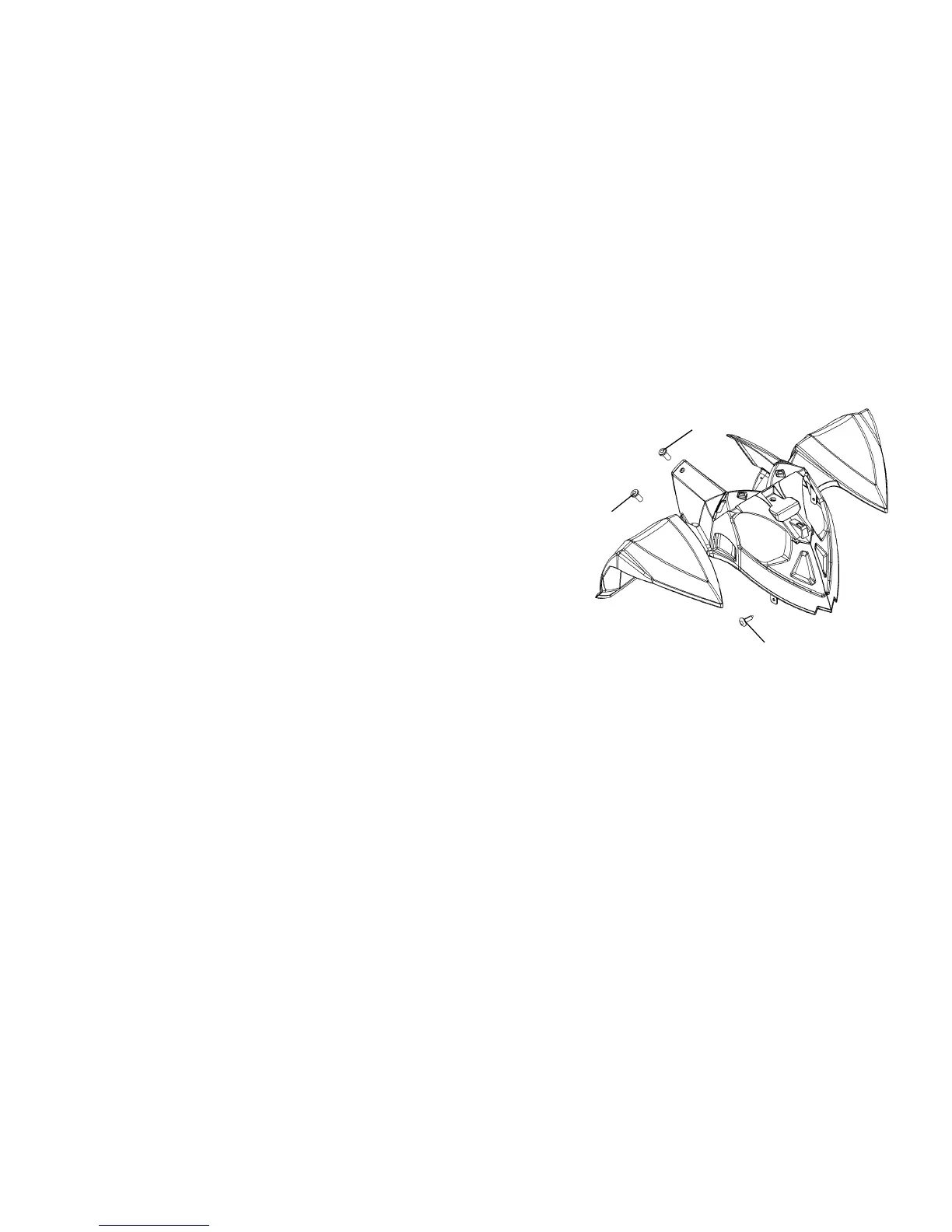

Front Cab Removal
1. Remove the left and right cab mount screws (1).
2. Remove the wire harness connector from the cab.
The connector is located under the left fender.
3. Remove the fuel tank cover screws (2).
4. Remove the four side panel screws (3).
5. Gently pull the cab upward to disengage it from
the stand-off. Place the cab upside down on a soft
protective surface to prevent scratching.
1
3
2
