3. Mark the drive belt direction of rotation so that it can be installed in the same
direction.

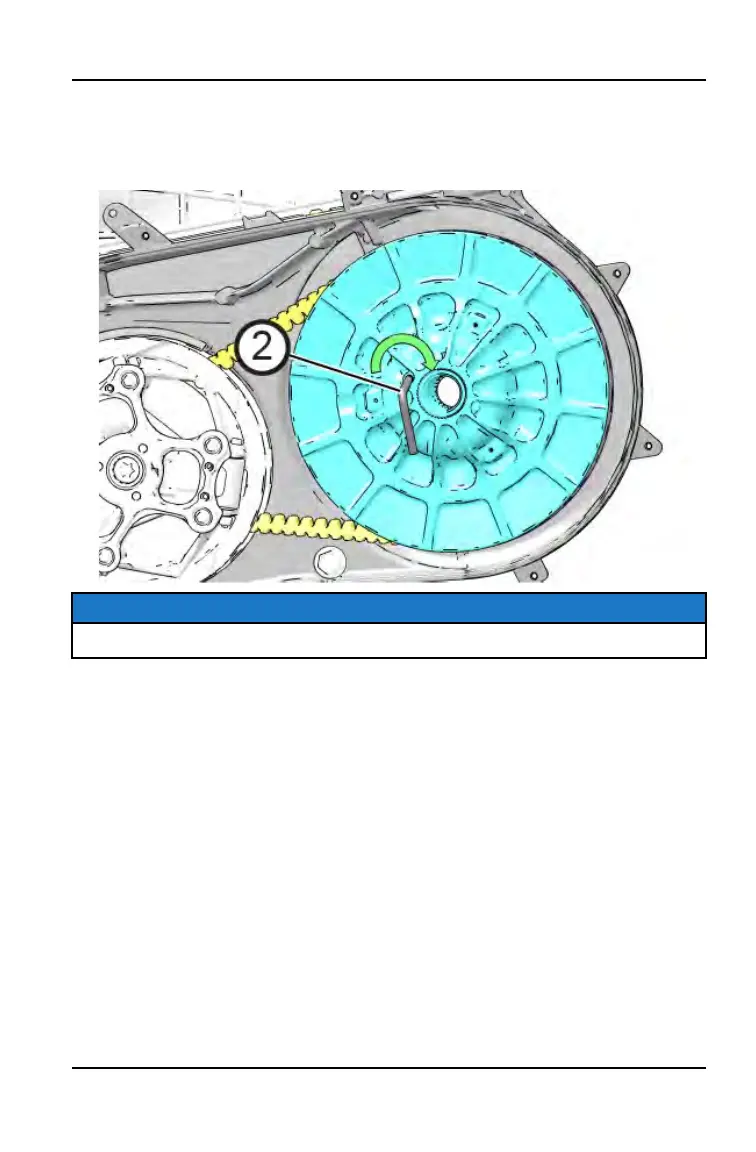

4. Insert clutch spreader tool
w
into threaded hole on driven clutch as shown
and turn clockwise to spread clutch.
NOTE
The part number for the clutch spreader tool is 2875911.
5. Walk the belt out of the driven clutch and drive clutch. Remove the belt from
the vehicle.
BELT INSPECTION
To inspect the drive belt, do the following:
1. Inspect belt for hour-glassing (extreme circular wear in at least one spot and
on both sides of the belt). Hour glassing occurs when the drive train does not
move and the drive clutch engages the belt.
2. Inspect belt for loose cords, missing cogs, cracks, abrasions, thin spots, or
excessive wear. Compare belt measurements with a new drive belt. Replace
if necessary.
3. Belts with thin spots, burn marks, etc., should be replaced to eliminate noise,
vibration, or erratic PVT operation.
121
