INSTRUMENT CLUSTER
OVERVIEW
NOTICE
The use of a high pressure washer may damage the instrument cluster. Wash
the vehicle by hand or with a garden hose using mild soap. Do not use alcohol
to clean the instrument cluster. Do not allow insect sprays to contact the lens.
Immediately clean off any gasoline that splashes on the instrument cluster.

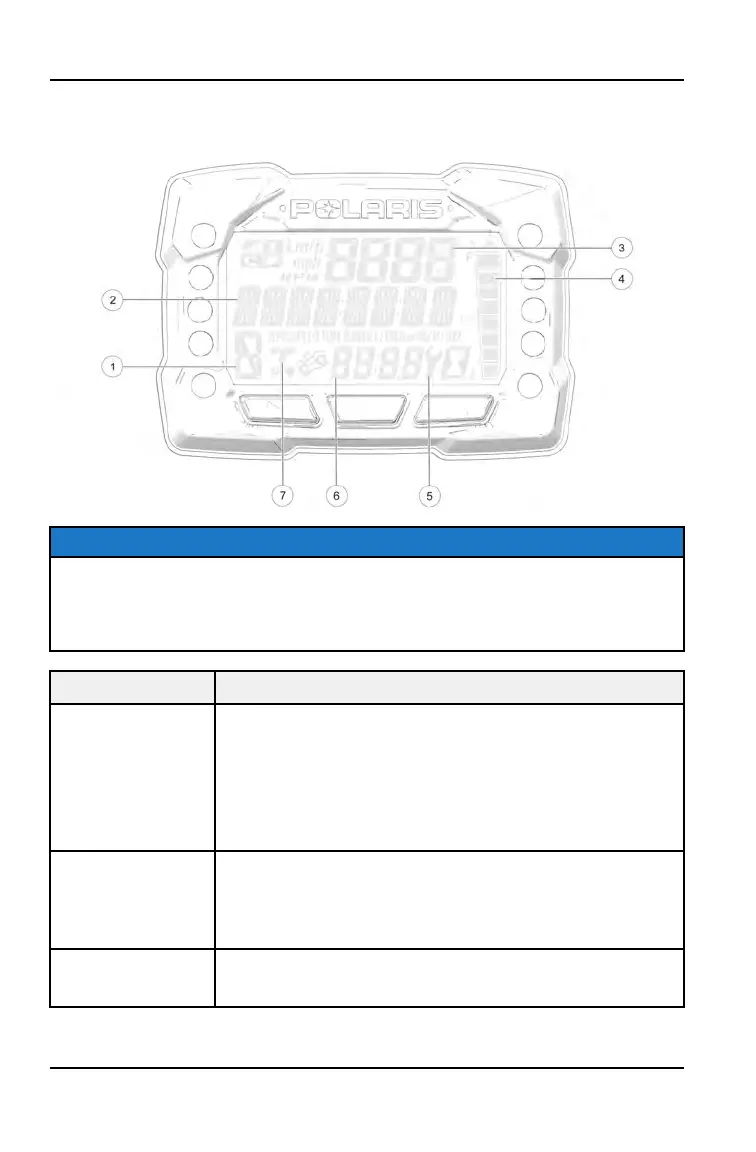

DISPLAY AREA FUNCTION
q
Gear Indicator
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
– = Gear Signal Error (or shifter between gears)
w
Display Area 2
This area displays odometer, trip meter, trip meter 2,
voltage, engine temperature, engine hour meter,
programmable service hour interval, ground speed, or
engine RPM.
e
Display Area 1
This area displays engine RPM, ground speed, or
coolant temperature.
42
FEATURES AND CONTROLS
