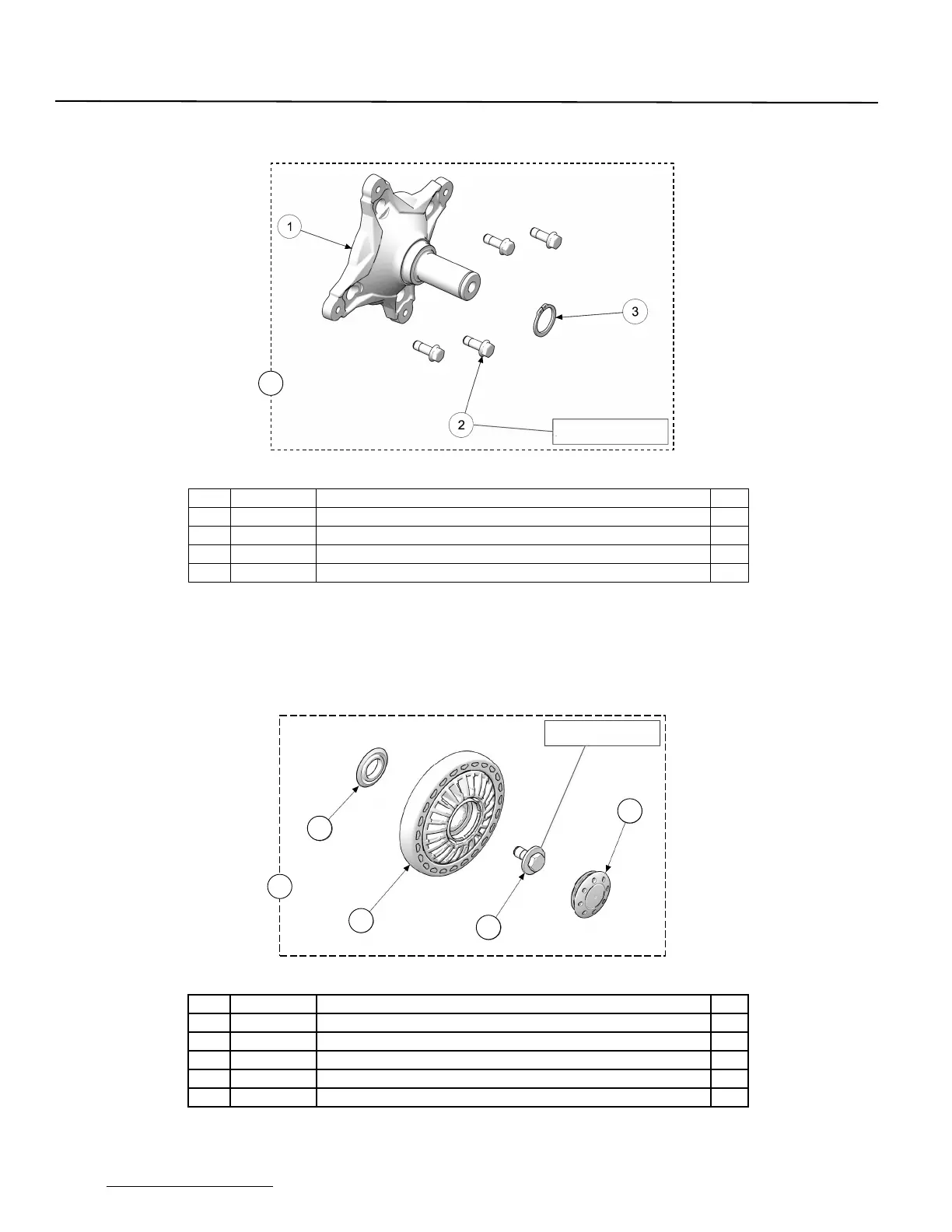

EXPLODED VIEWS
32mm Hub Kit / Ensemble moyeu 32 mm
Narrow Mid Wheel Kit / Ensemble roue 134mm - étroite
#
C
TORQUE 90 Nm [66 ft-lbs]
+ THREAD LOCKER
T
T
+
ITEM # PART # DESCRIPTION QTY
C 2205435 K-HUB, CMPLST, 32mm 1
1 -- HUB-CMPLST XP 32mm, ASSY 1
2 -- HFSCS, M10-1.5X30, 10.9, ZP, TL, DIN6921 4
3 2205454 ERR, 35, 2.4, ZP, SHR-137 1
#
D
TORQUE 30 Nm [22 ft-lbs]
+ THREAD LOCKER
TH
RE
AD
#
1
#
2
#
3
#
4
ITEM #
PART # DESCRIPTION QTY
D 2205122 K-WHEEL, CMPLST, MID, ATV 1
1 -- WHEEL / ROUE -- ATV 134 MM 1
2 -- WHEEL CAP / CAP DE ROUE 1
3 -- HCSW, M10-1.5X25, 8.8, ZP, TL, DIN933 1
4 -- WHEEL SEAL / JOINT D'ÉTANCHÉITÉ -- (25 ID X 42 OD) 1
