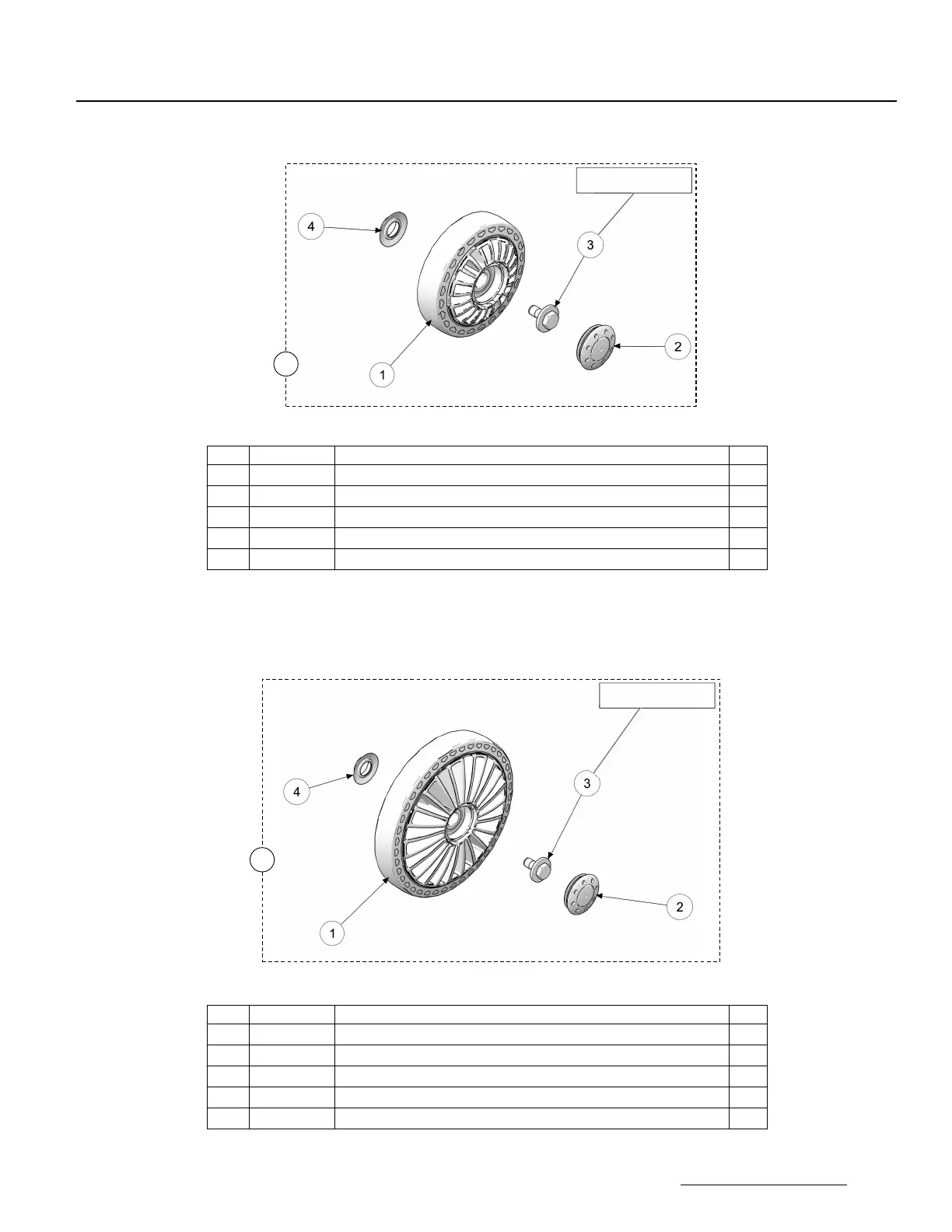

EXPLODED VIEWS
Wide Mid Wheel Kit / Ensemble roue 134mm - large
Idler Wheel Kit / Ensemble roue 202mm
#
(
72548(1P>IWOEV@
7+5($'/2&.(5
+5($'

/
2&
ITEM # PART # DESCRIPTION QTY
E 2209514 K-WHEEL, CMPLST, MID, ATV 2.0 1
1 -- 134MM INJECTION WHEEL, ASSY / 134MM ROUE INJECTION, ASS. 1
2 -- WHEEL CAP / CAP DE ROUE 1
3 -- HCSW, M10-1.5X25, 8.8, ZP, TL, DIN933 1
4 -- SHAFT SEAL / JOINT D'ÉTANCHÉITÉ DE ROUE 1
)
72548(1P>IWOEV@
7+5($'/2&.(5
7+5($'
ITEM # PART # DESCRIPTION QTY
F 2209515 K-WHEEL, CMPLST, IDLER, ATV 2.0 1
1 -- 202MM INJECTION WHEEL, ASSY / 202MM ROUE INJECTION, ASS. 1
2 -- WHEEL CAP / CAP DE ROUE 1
3 -- HCSW, M10-1.5X25, 8.8, ZP, TL, DIN933 1
4 -- SHAFT SEAL / JOINT D'ÉTANCHÉITÉ DE ROUE 1
