BRAKES
9.22

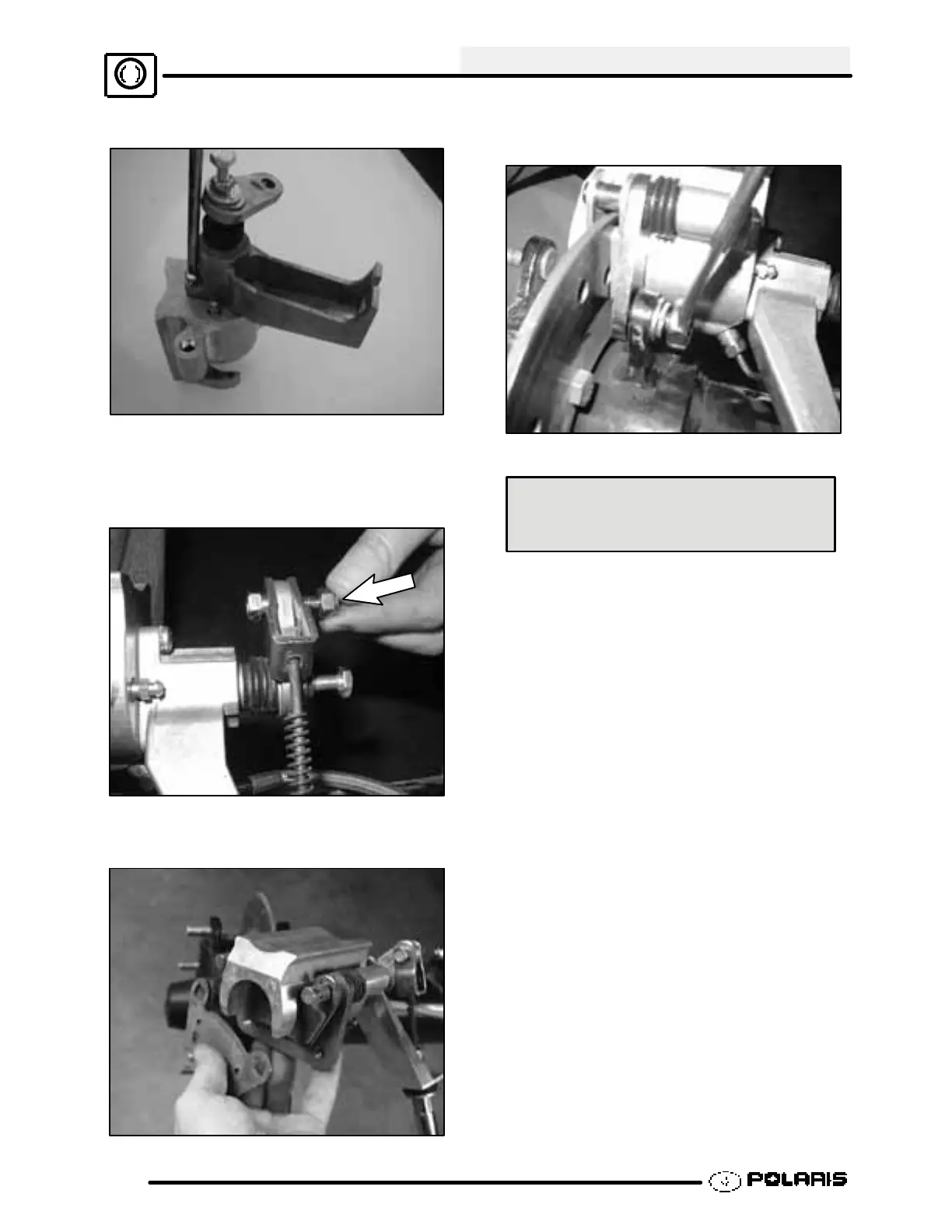

9. Tighten the screws on the caliper assembly.
10. Reinstall the emergency brake cable and
assembly onto the brake caliper . Secure the
emergency brake cable with the nut and bolt.
11. Install brake pads in caliper body with friction
material facing each other.
12. Install caliper and torque mounting bolts. Install
brake lines and tighten with a flare nut wrench.
Caliper Mounting Bolt Torque:
18 ft. lbs. (24.9 Nm)
13. Follow bleeding procedure outlined on Pages
9.6-9.7 of this section and refer to system
overview and illustration on Page 9.5.
14. Field test unit for proper braking action before
putting into service. Inspect for fluid leaks and
firm brakes. Make sure the brake is not dragging
when lever is released. If the brake drags,
re-check assembly and installation.
