BRAKES
9.21

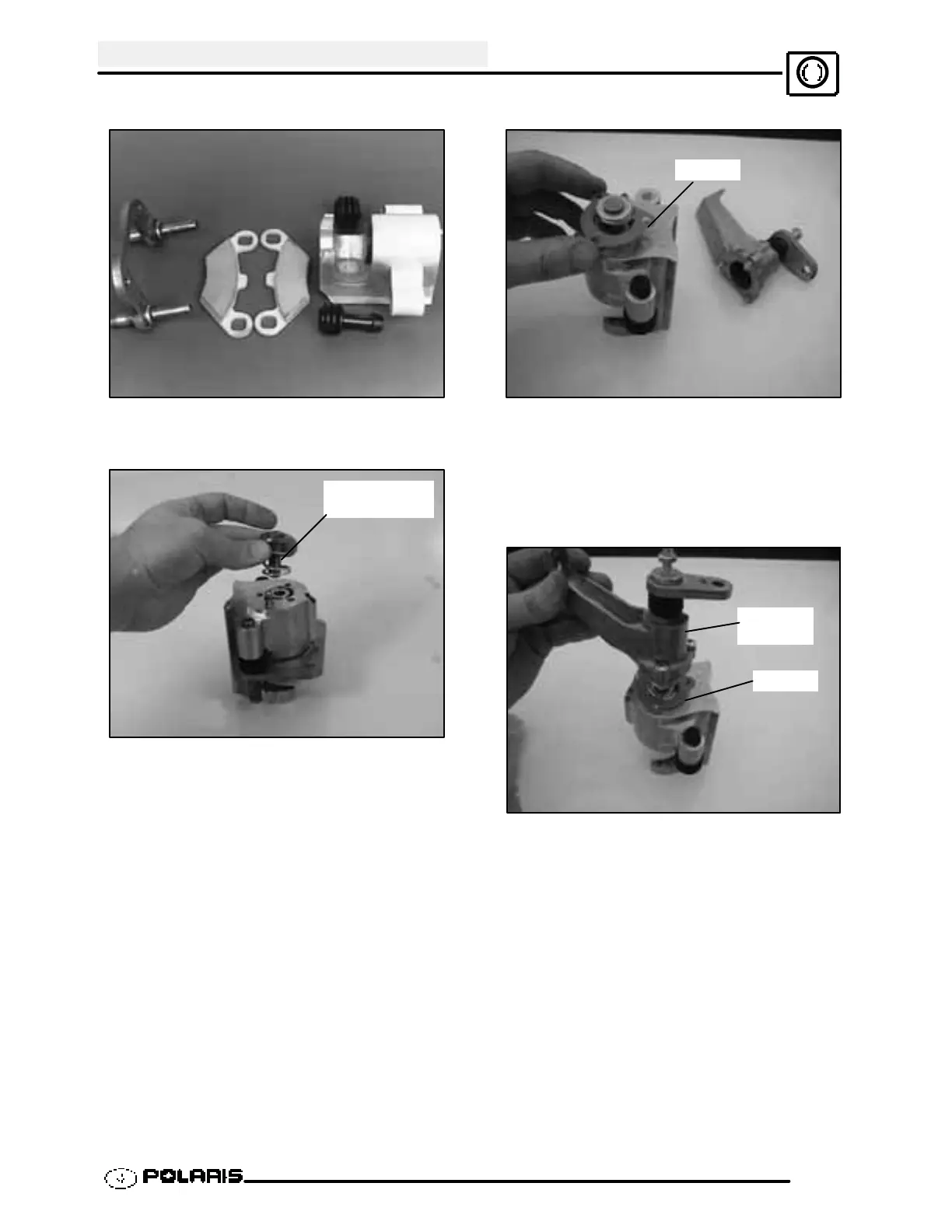

6. Install the spring , washer, and plunger into the
caliper assembly.
Spring and
Plunger
7. Install the gasket onto the caliper body. Align the
gasket with the three holes in the caliper body.
Gasket
8. Install the emergency brake actuator onto the
caliper body. Be sure the gasket holes line up with
the caliper body holes and emergency brake
actuator holes, to ensure no damage is done to
the gasket.
Gasket
Brake
Actuator
