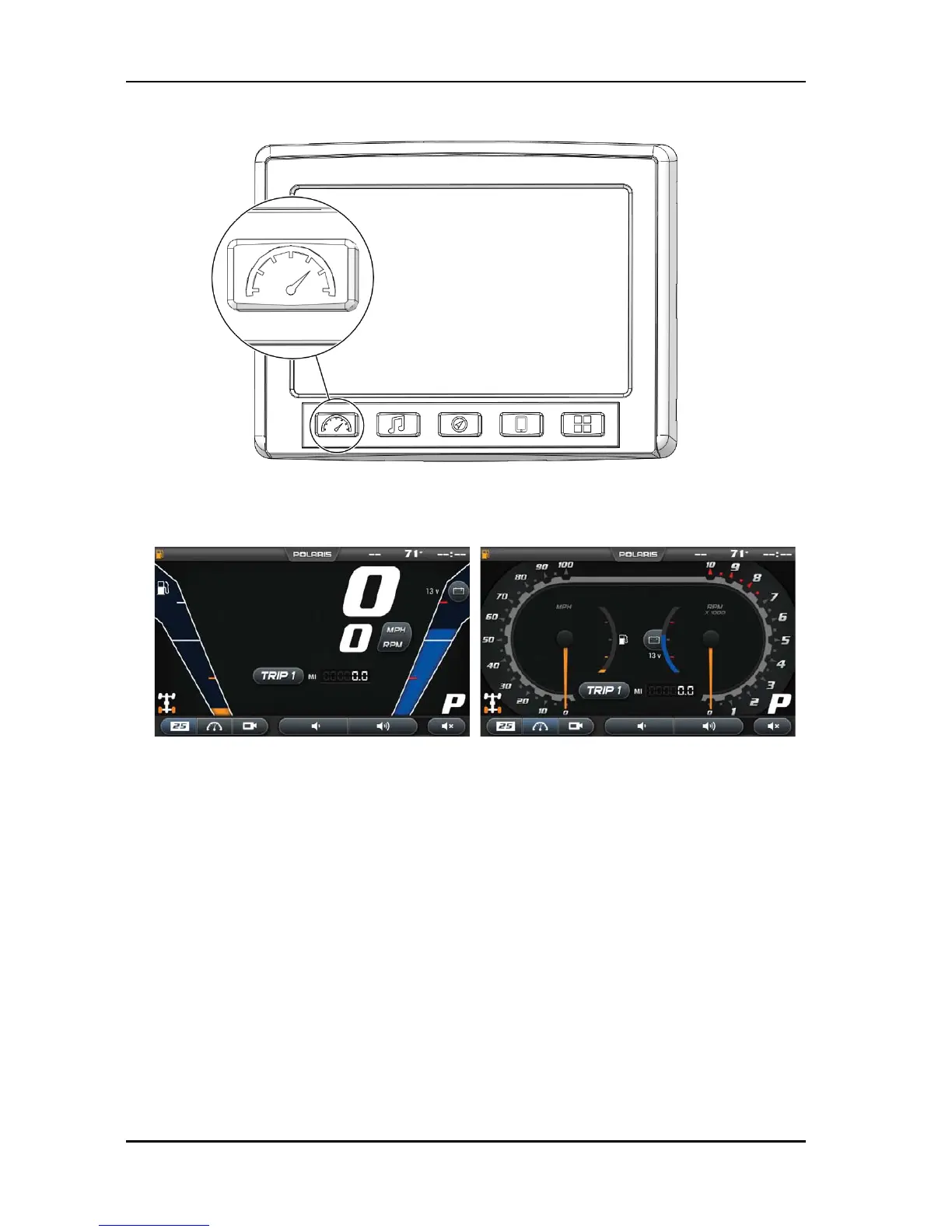

GAUGE SCREEN
1. Press the Gauge Button to display the main gauge screen.
2. Use the gauge button again to move between gauge and camera screens.
These can also be selected with the touch screen buttons in the lower left
corner.
3. The grey buttons on the gauge screen are touch selectable. Press on the
“ODO” icon to toggle between trip 1, trip 2, time traveled, total hours, and
total miles. To reset trip 1, trip 2, or time traveled, press and hold this icon on
whichever output you wish to reset.
4. Pressing the MPH/RPM button will change whether miles per hour or RPM is
shown on top.
5. Press on the coolant icon to cycle to battery voltage, and turbo boost
pressure (if applicable), then back to engine temperature.
12
FEATURES AND CONTROLS
