Polaris RZR 570 2016 - Exploded View

4
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
4.17

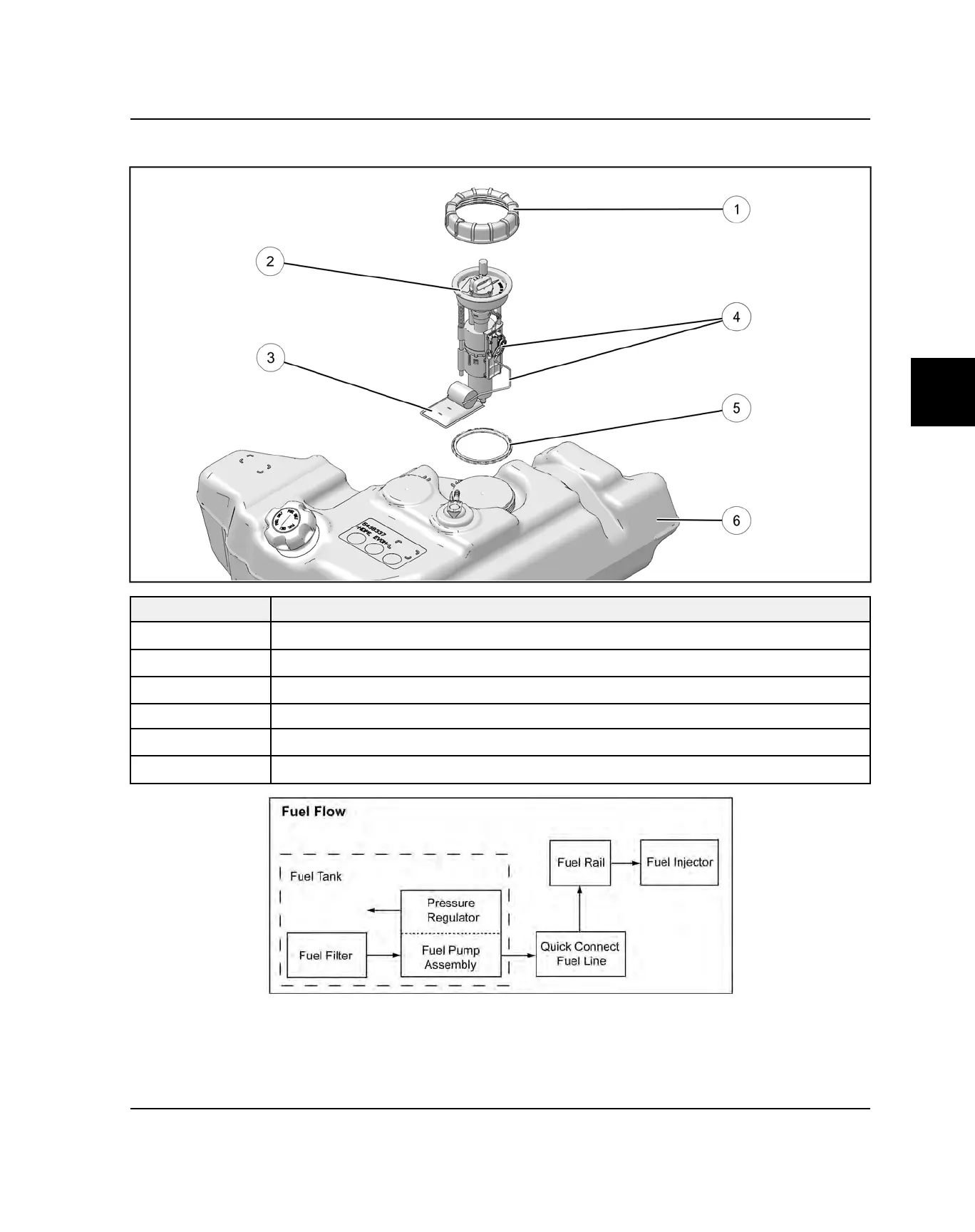

EXPLODED VIEW
ITEM
DESCRIPTION
1 PFA Nut 70 ft-lbs (95 Nm)
2 Fuel Pump
3 Preliminary Fuel Filter
4
Fuel Sender Float Arm
5
Gasket (replace if removed)
6 Fuel Tank Assembly
FUEL SYSTEM
