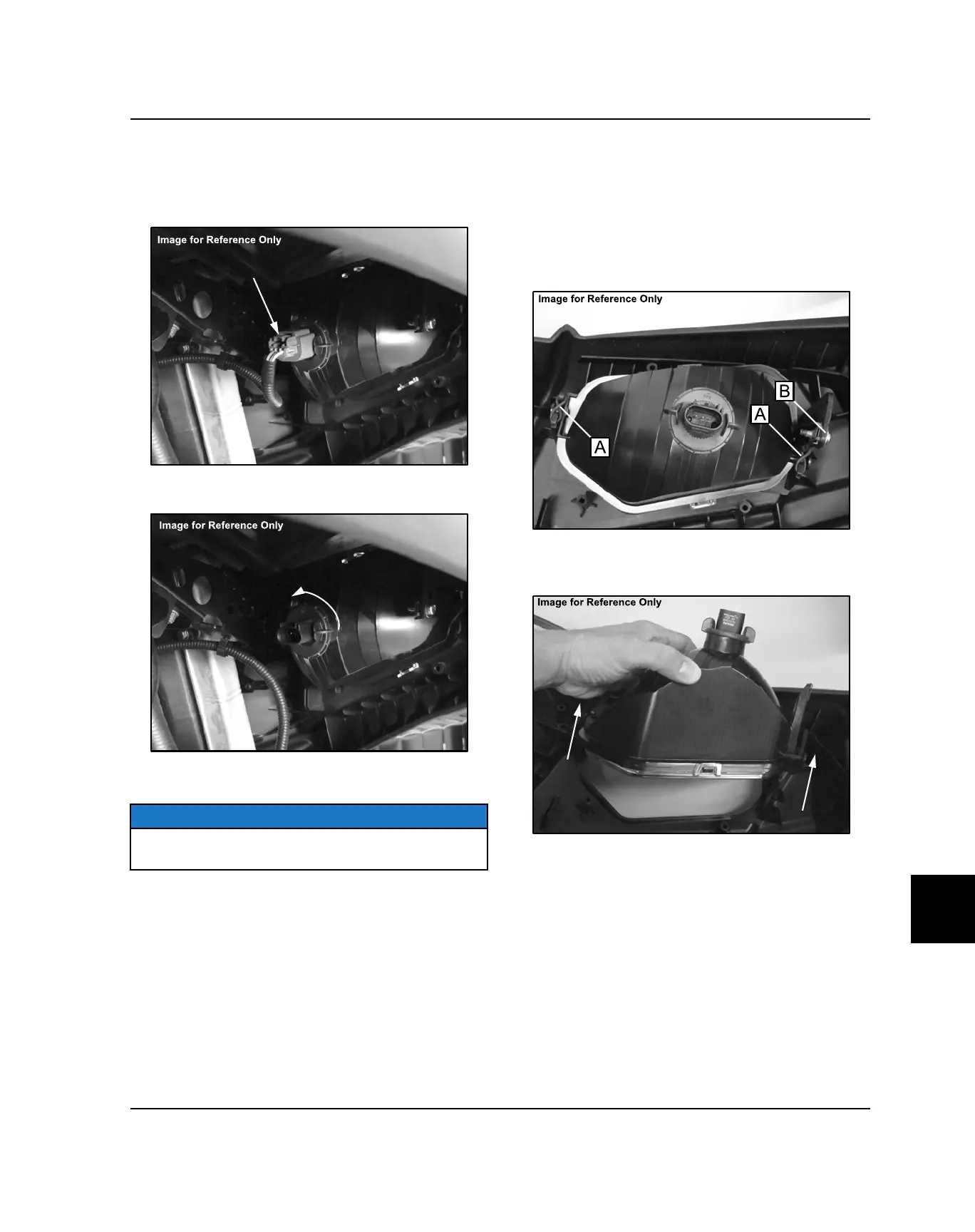

HEADLAMP BULB REPLACEMENT
1. Disconnect the wire harness from the headlamp
bulb. Be sure to pull on the connector, not on the
wiring.
2. Turn the bulb counterclockwise to remove it.
3. Insert new bulb. Reinstall the wire harness onto the
headlamp assembly.
NOTE
Make sure the tabs on the bulb locate properly in the
housing.
HEADLAMP HOUSING REMOVAL
1. Disconnect the wire harness from the headlamp
bulb. Be sure to pull on the connector, not on the
wiring.
2. Remove the O-rings (A) from the headlamp brackets
on both sides of the headlamp.
3. Remove the adjustment screw (B) from the bracket.
4. Carefully remove the headlamp from the front
bumper.
ELECTRICAL
