3.24
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

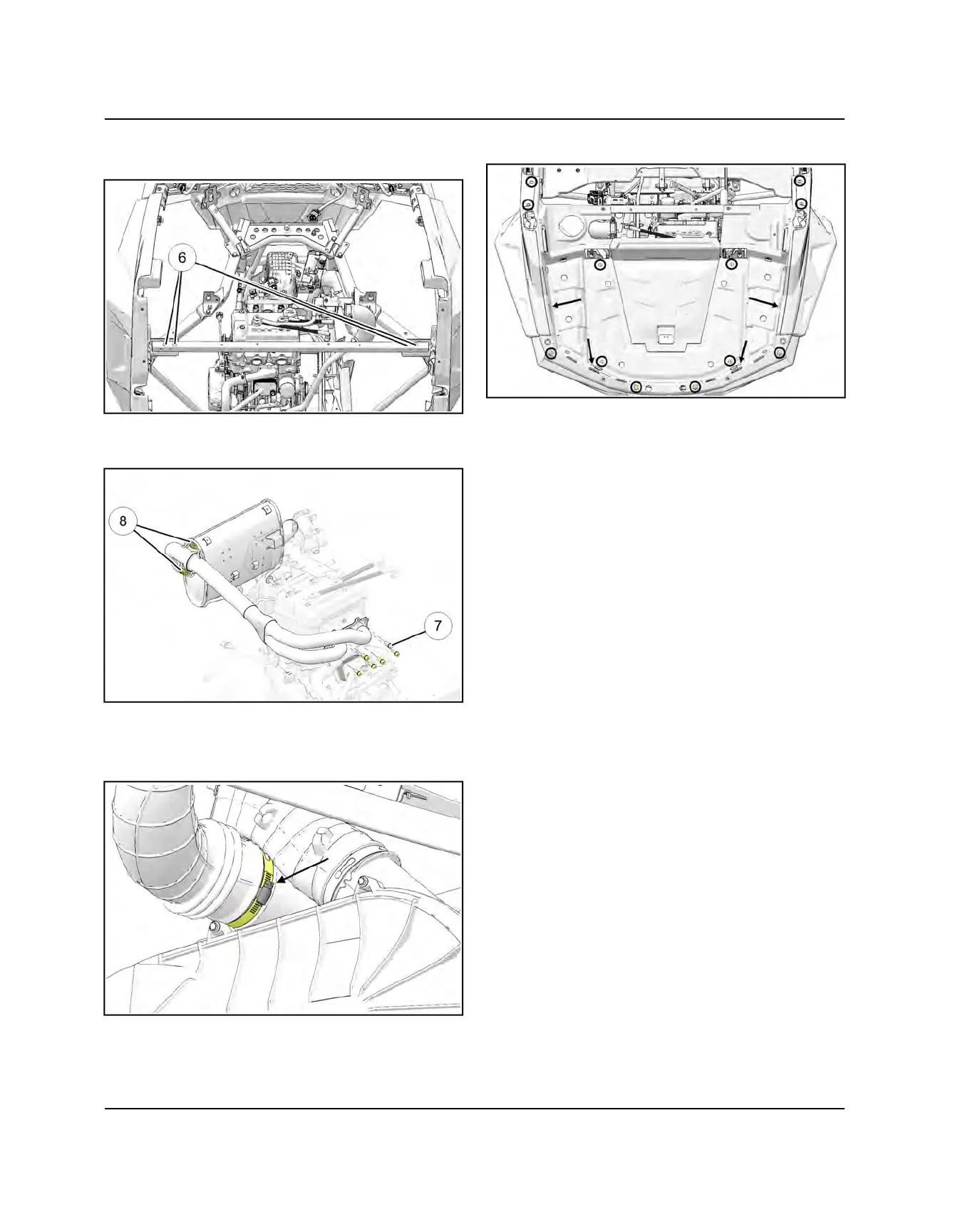

8. Remove the five bolts retaining the frame support bar
above the engine
y
.
9. Remove the six exhaust head pipe fasteners
u
and
the two springs
i
retaining the pipe to the muffler.
10.Remove the four screws retaining the engine and
PVT intake vents.
11. Loosen the PVT intake clamp.
12.Remove the two bolts mounting the air box to the
frame bracket and loosen the clamp on the air box
duct. Remove the air box from vehicle.
13.Remove the 22 screws retaining the cargo box panel.
14.Remove the ignition coil by disconnecting the wiring
leads and removing the two mounting bolts. Remove
the spark plug caps.
ENGINE / COOLING SYSTEM
