9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
3.25

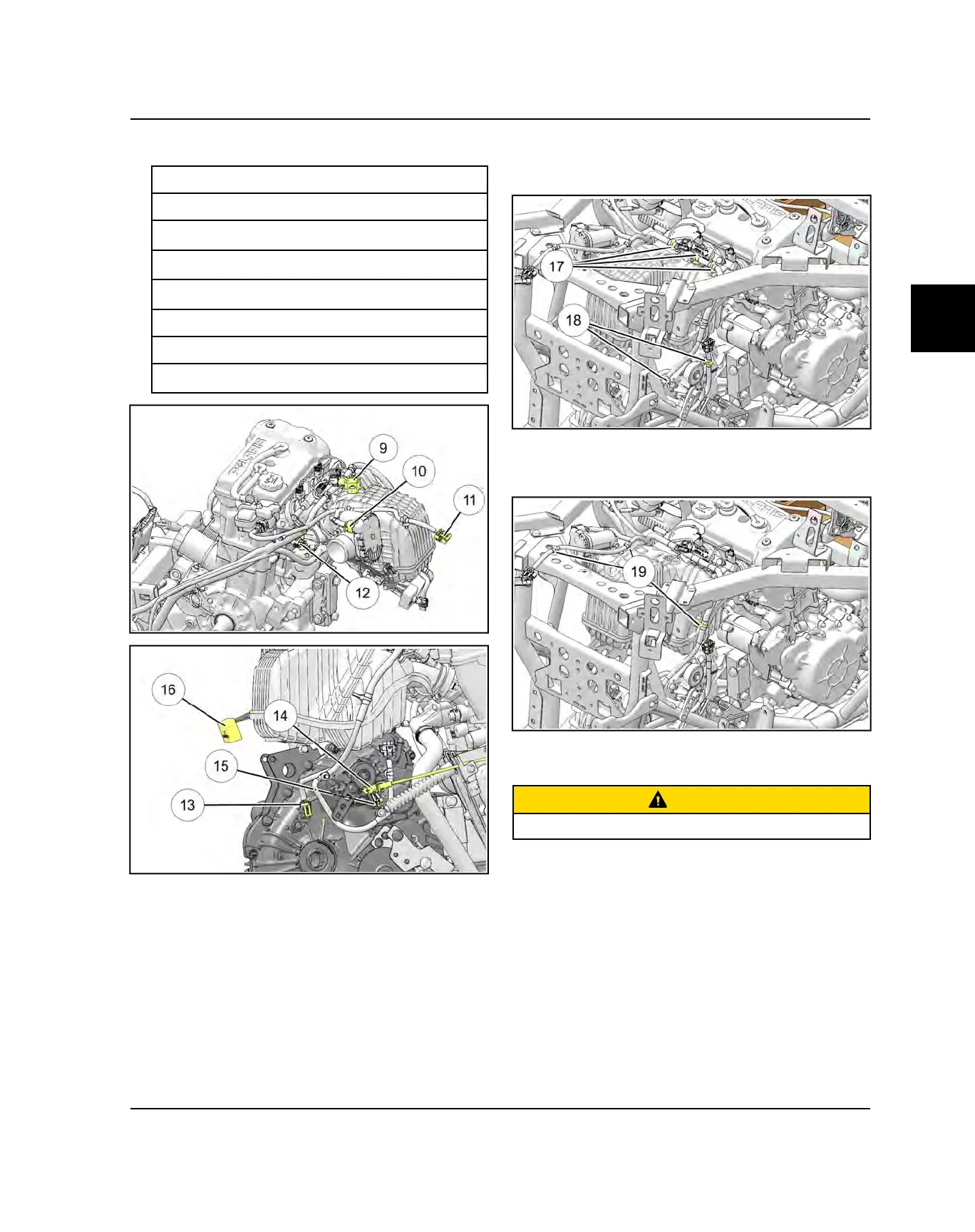

15.Disconnect the following electrical components:
o
TMAP
a
Electronic Throttle Control
s
Taillight Harness
d
Engine Temp Sensor
f
Speed Sensor
g
CPS
h
Transmission Switch
j
Differential Relay (if equipped)
16.Remove the three fasteners retaining the harness to
the intake manifold
k
and two fasteners retaining the
harness by the transmission switch
l
.
17.Remove the three harness clamps on the intake
manifold
1(
. Move the main harness out of the way
towards the driver’s seat.
18.Disconnect the two fuel rail mounting bolts and move
the fuel rail off to the driver’s side.
CAUTION
Be careful not to pinch or kink the fuel rail.
ENGINE / COOLING SYSTEM
