3.26
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

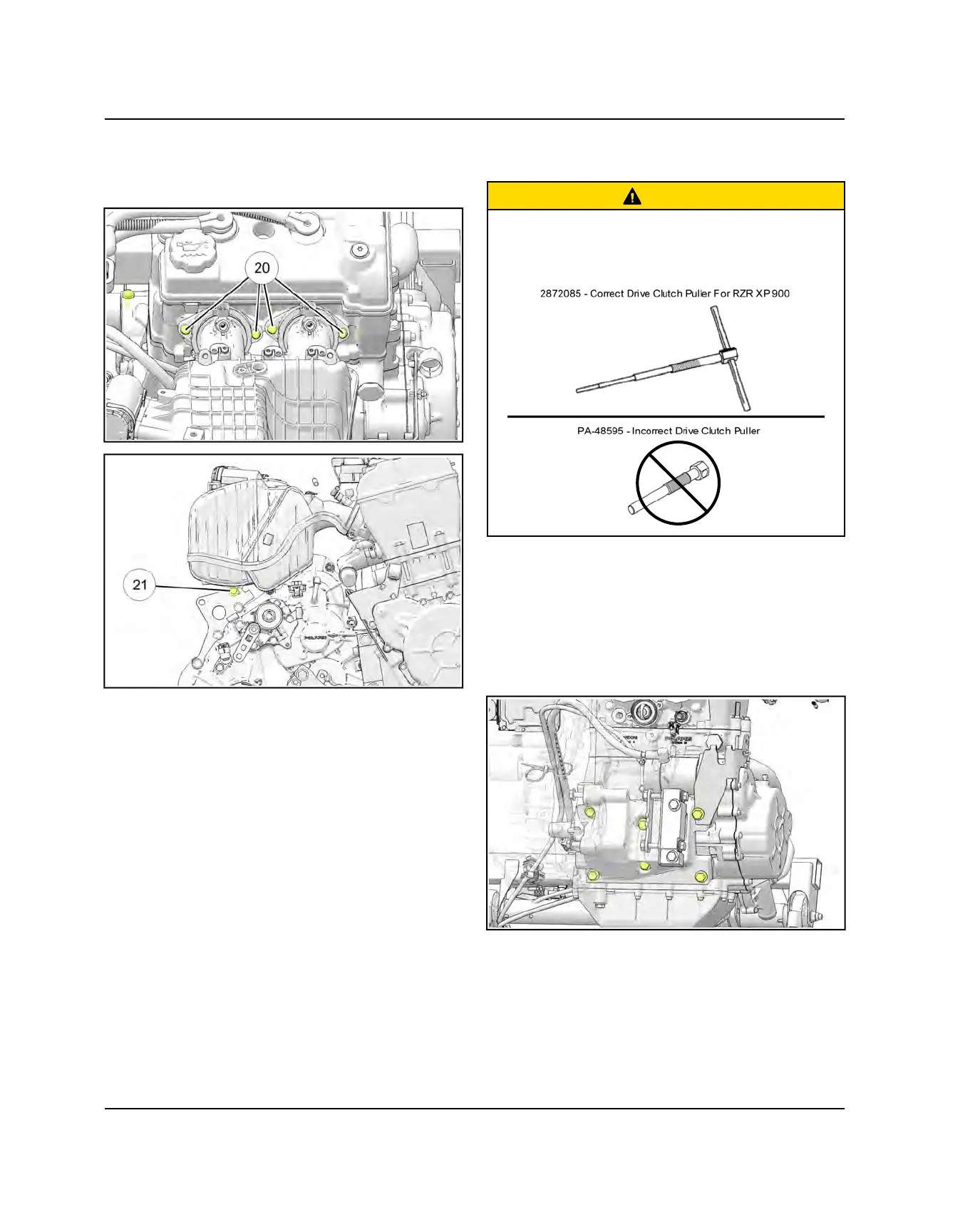

19.Remove the four fasteners retaining the intake
manifold to the engine
2)
and the one retaining the
bottom of the intake manifold to the transmission
bracket
2!
.
20.Remove the PVT outer cover.
21.Remove the belt and driven clutch.
22.Remove the drive clutch from the vehicle using the
correct drive clutch puller (PN 2872085).
CAUTION
Correct Drive Clutch Puller P/N 2872085
Using the incorrect puller may result in a damaged
crankshaft.
23.Remove seven bolts retaining the inner clutch cover.
24.Remove the positive and negative cables going to the
starter.
25.Put a thin block of wood under the engine assembly
to assist with engine mounting fastener removal.
26.Remove the six engine-to-transmission mounting
bolts.
27.Remove the four bolts retaining the engine to the
front engine mount.
28.Remove the engine from the frame.
ENGINE / COOLING SYSTEM
