LABEL VALUE FUNCTION
PULSE PWR 200A ZCASE
Fuse
Battery Power to Polaris Pulse
and 6AWG Cable
AUD AMP 30A Fuse Audio Amplifier

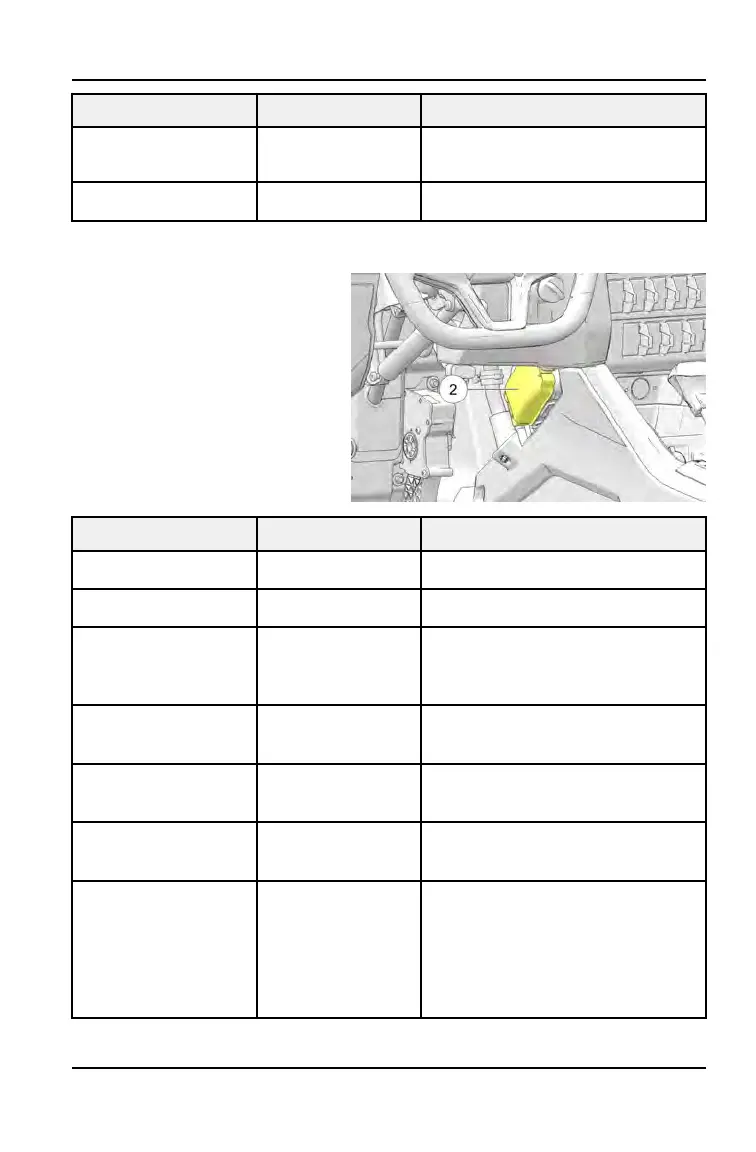

SECONDARY FUSE CENTER
The secondary fuse center
w
is
under the dash, near the
operator’s right knee area.
LABEL VALUE FUNCTION
FUEL 10A Fuse Fuel Pump
TERM BLK 10A Fuse Terminal Block Accessory
INST ACCY 10A Fuse Diagnostic Accessory, Interior
LED Light, Display Accessory
(optional)
PWR PT 1 10A Fuse 12V Socket (in front of gear
selector)
INST UNSW 7.5A Fuse Display (optional), Gauge,
Diagnostic
LIGHTS 7.5A Fuse Headlights, Taillights, Accent
Lights (optional), Brake Lights
CHASSIS 15A Fuse AWD Switch Light, Oxygen
Sensor Heater, EPS Wake-Up,
Vehicle Speed Sensor, Seat Belt
Switch, SCM Wake-Up (optional),
SCM Mode Switch (optional),
AWD Coil, Gauge, Waste Gate
105
