9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.

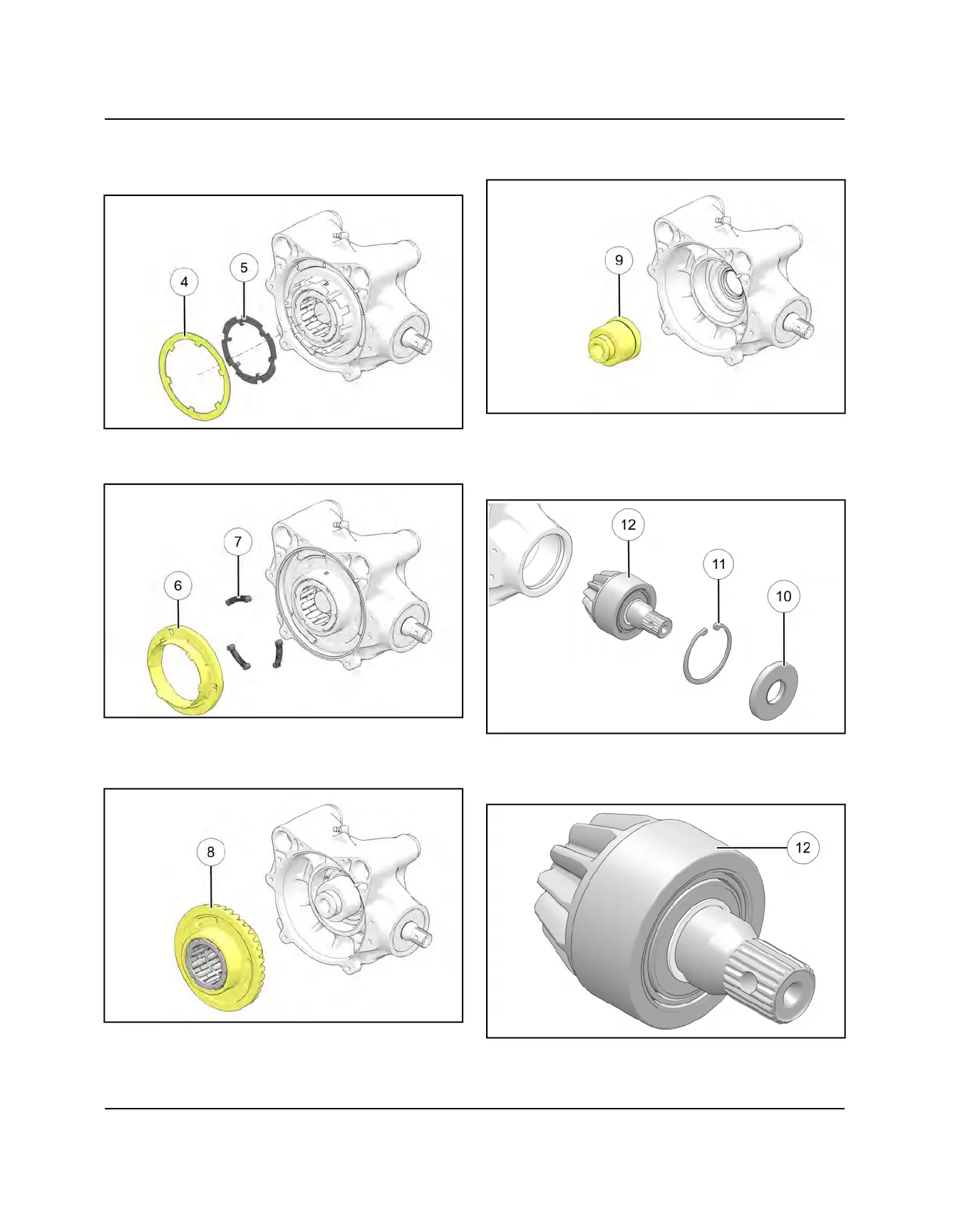

4. Remove and inspect the armature plate
r
and cage
plate
t
. Refer to AWD Diagnosis for detailed
inspection process.
5. Remove the spring retainer
y
and compression
springs
u
from the top of the ring gear.
6. Remove the clutch housing / ring gear, roll cage and
plastic spacer assembly
i
from the gearcase
housing.
7. Remove the RH output hub assembly
o
from the
gearcase housing.
8. Remove pinion seal
a
, internal retaining ring
s
, and
pinion gear assembly
d
from the gearcase housing.
Inspect and clean the gearcase housing and replace
all oil seals and O-rings.
9. Inspect the pinion gear for chipped, broken or missing
teeth. Inspect the pinion bearing for signs of wear and
the pinion shaft seal surface for pitting.
FINAL DRIVE
