9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service

Manual

3.77

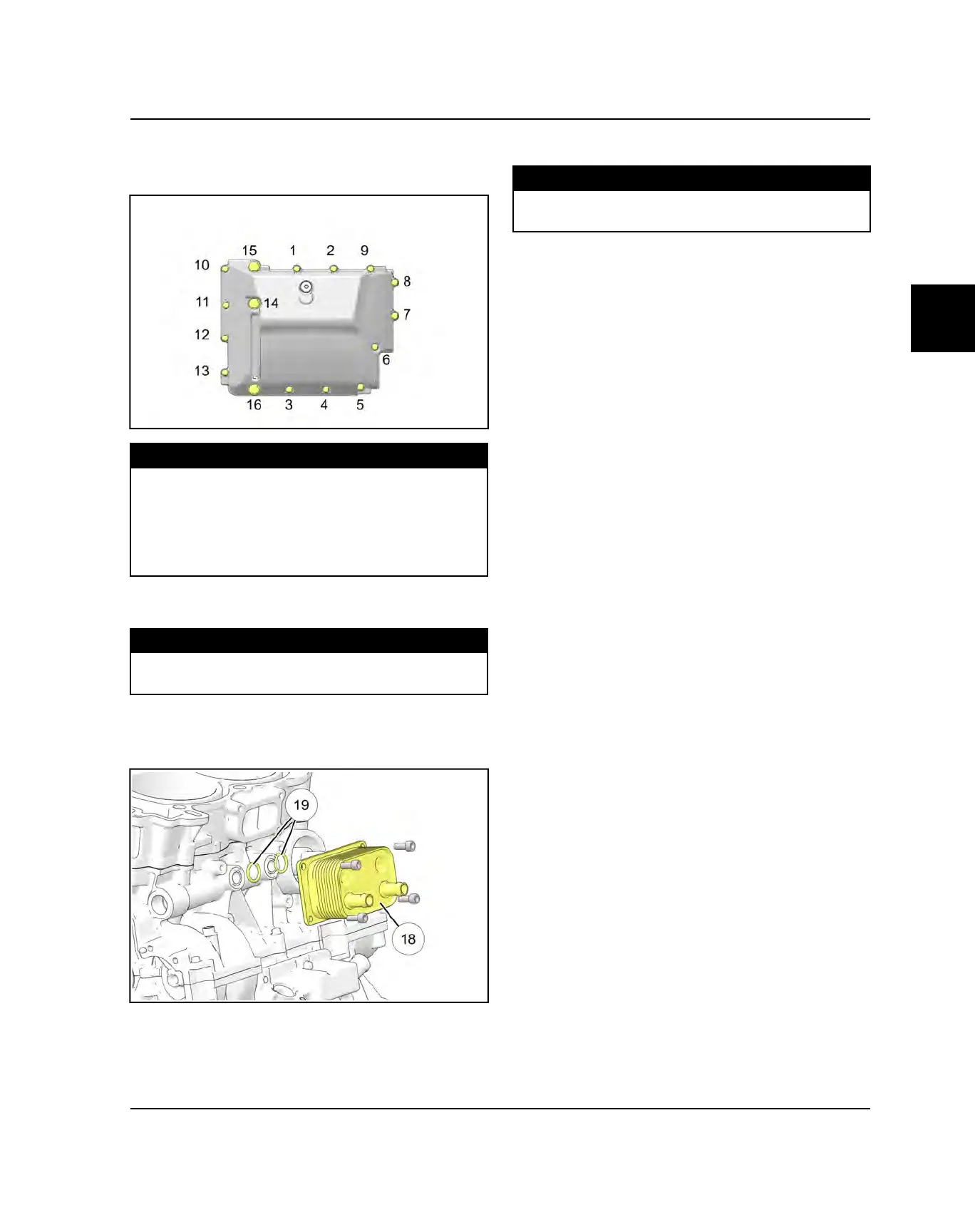

24. Torque the oil sump cover bolts in sequence to

specification. Repeat the sequence to verify final

torque.

TORQUE

Oil Sump Cover Bolts:

M6 Bolts:

9 ft-lb (12 Nm)

M8 Bolts:

26 ft-lb (35 Nm)

25. Reinstall the crankcase drain plug if previously

removed. Torque drain plug to specification.

TORQUE

Crankcase Drain Plug:

11 ft-lbs (15 Nm)

26. Rotate the engine so the cylinder is facing up.

27. Reinstall the oil cooler

, if previously removed. Use

new O-rings upon installation

28. Torque oil cooler retaining bolts to specification.

TORQUE

Oil Cooler Retaining Bolts:

7 ft-lb (10 Nm)

29. Proceed to Flywheel Installation, page 3.78 and then

Cylinder Head Installation, page 3.81.

ENGINE / COOLING SYSTEM
