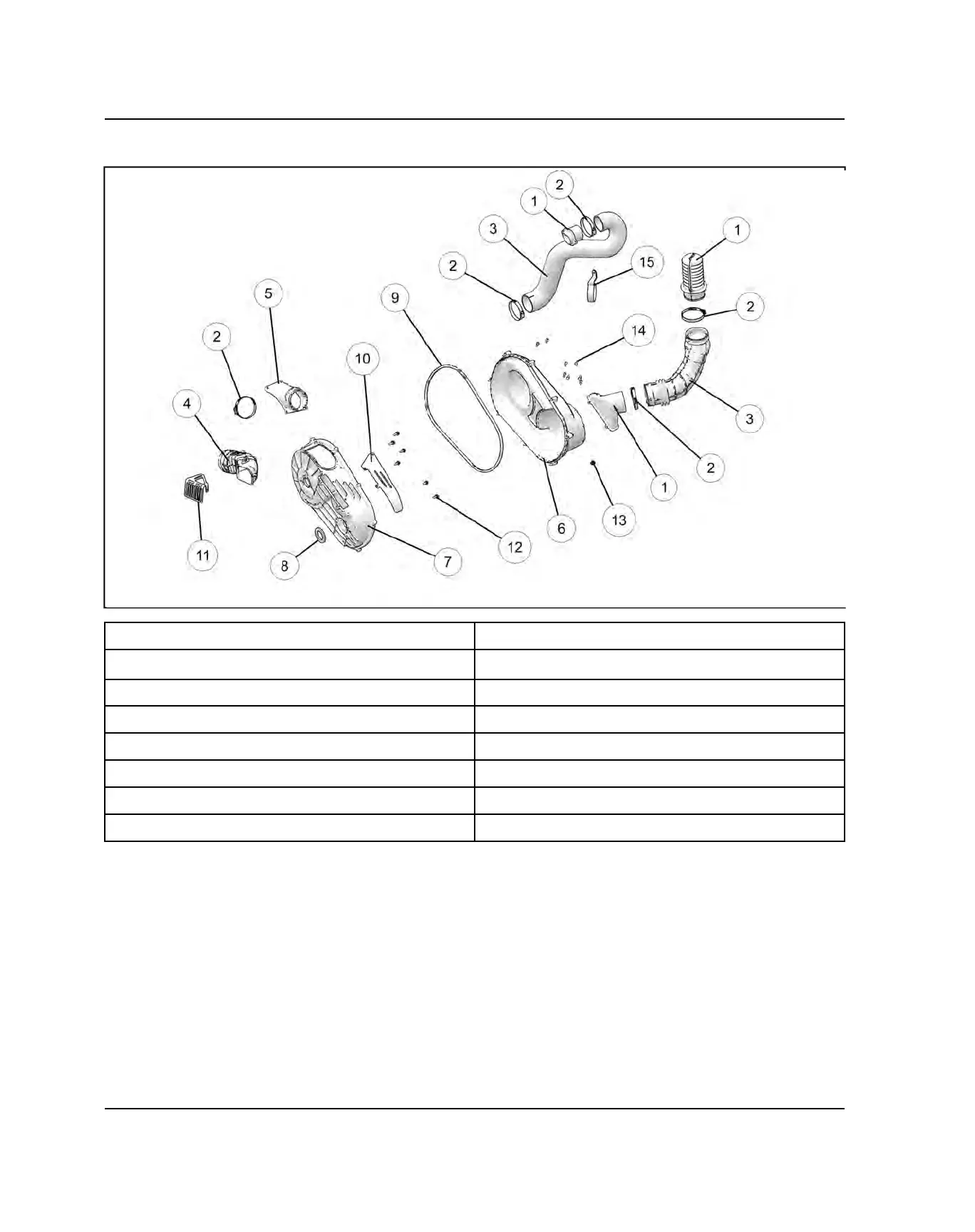

RZR 4 900 / S 1000 PVT COVERS AND DUCTING COMPONENTS
q
Inlet Duct
o
Outer Cover Seal
w
Band Clamp
a
Guard Plate
e
Intake Hose
s
Outlet Duct Screen
r
Outlet Hose
d
Inner Cover Screws
t
Outlet Duct
f
Outer Cover Drain Screw
y
Outer Clutch Cover
g
Outer Cover Screws
u
Inner Clutch Cover
h
Intake Hose Bracket
i
Inner Cover Seal
PVT SYSTEM
