EXHAUST REMOVAL / INSTALLATION

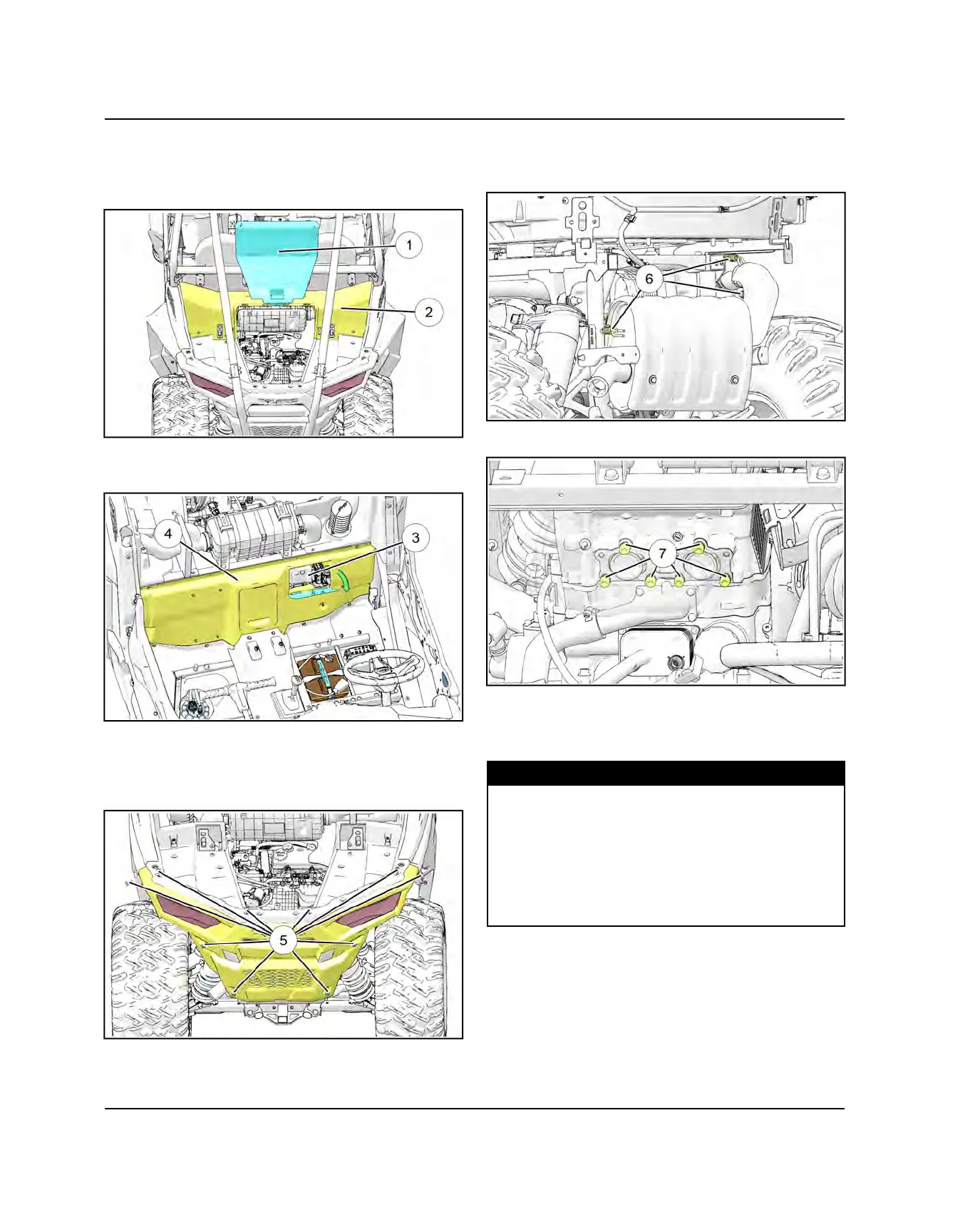

1. Remove the engine access panel
q
and the air
intake housing cover
w
.
2. Remove the seats.
3. Disconnect and remove the ECU
e
.
4. Remove the four plastic rivets retaining the bottom of
the engine / cab divider panel
r
.
5. Disconnect both taillights and remove ten Torx
fasteners
t
retaining the rear fascia.
6. Remove the three springs
y
, two retaining the
muffler to the head pipe and one spring retaining the
muffler to the chassis.
7. Remove the six exhaust head pipe fasteners
u
.
8. Remove the exhaust from the vehicle.
9. To install, reverse procedure. Torque fasteners to
specification.
TORQUE
Exhaust Head Pipe Fasteners:
18 ft-lb (24 Nm)
Body Screws:
8 ft-lb (11 Nm)
Air Box Mounting Fasteners:
8 ft-lb (11 Nm)
