WHEEL HUBS

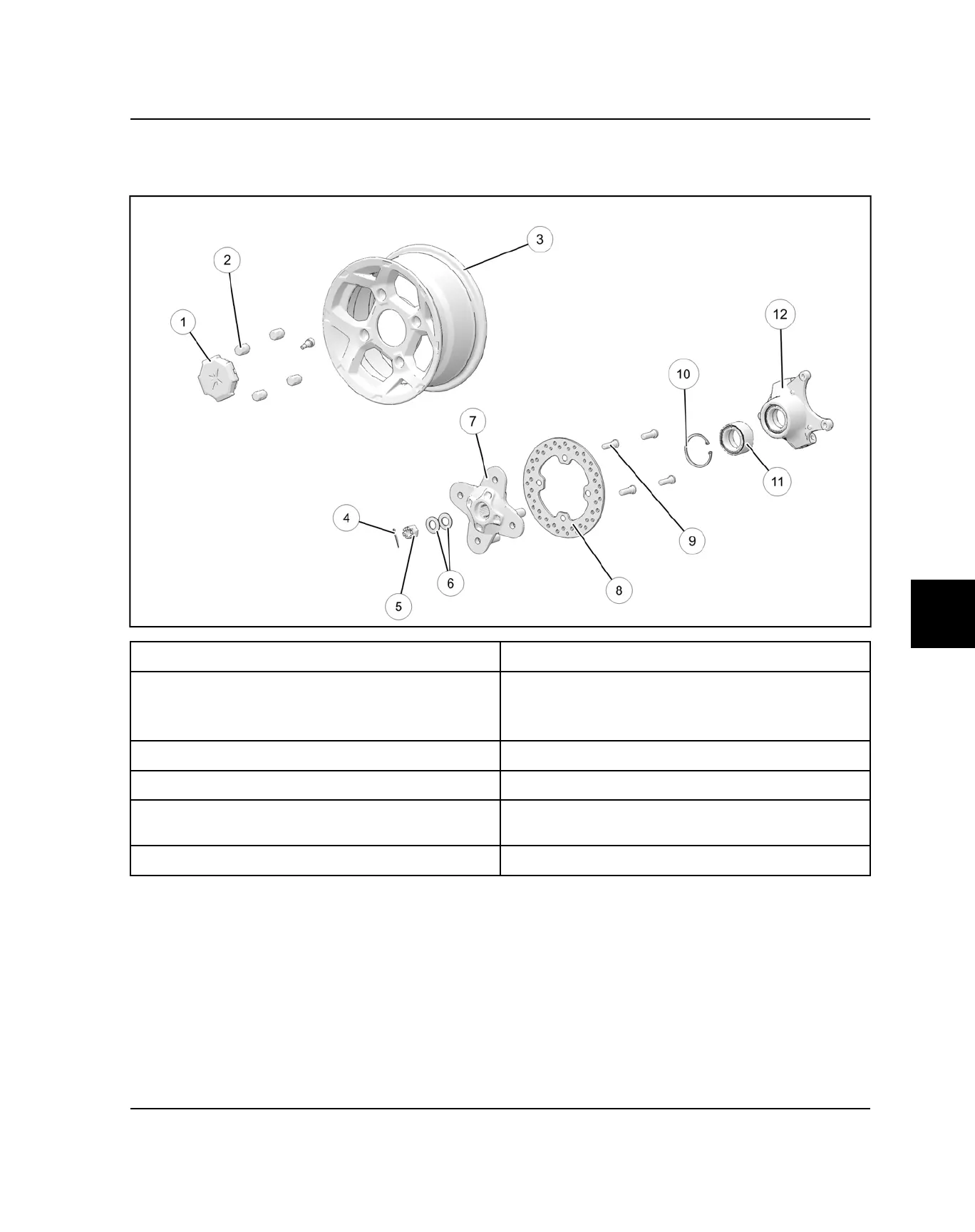

FRONT HUB ASSEMBLY VIEW
q
Wheel Cap
u
Wheel Hub
w
Wheel Nuts
Aluminum: 120 ft-lbs (163 Nm)
Steel: 60 ft-lb (81 Nm)
i
Brake Disc
e
Front Rim (Aluminum shown)
o
Studs
r
Cotter Pin a
Retaining Ring
t
Castle Nut
180 ft-lbs (244 Nm)
s
Sealed Bearing
y
Cone Washer
d
Bearing Carrier
