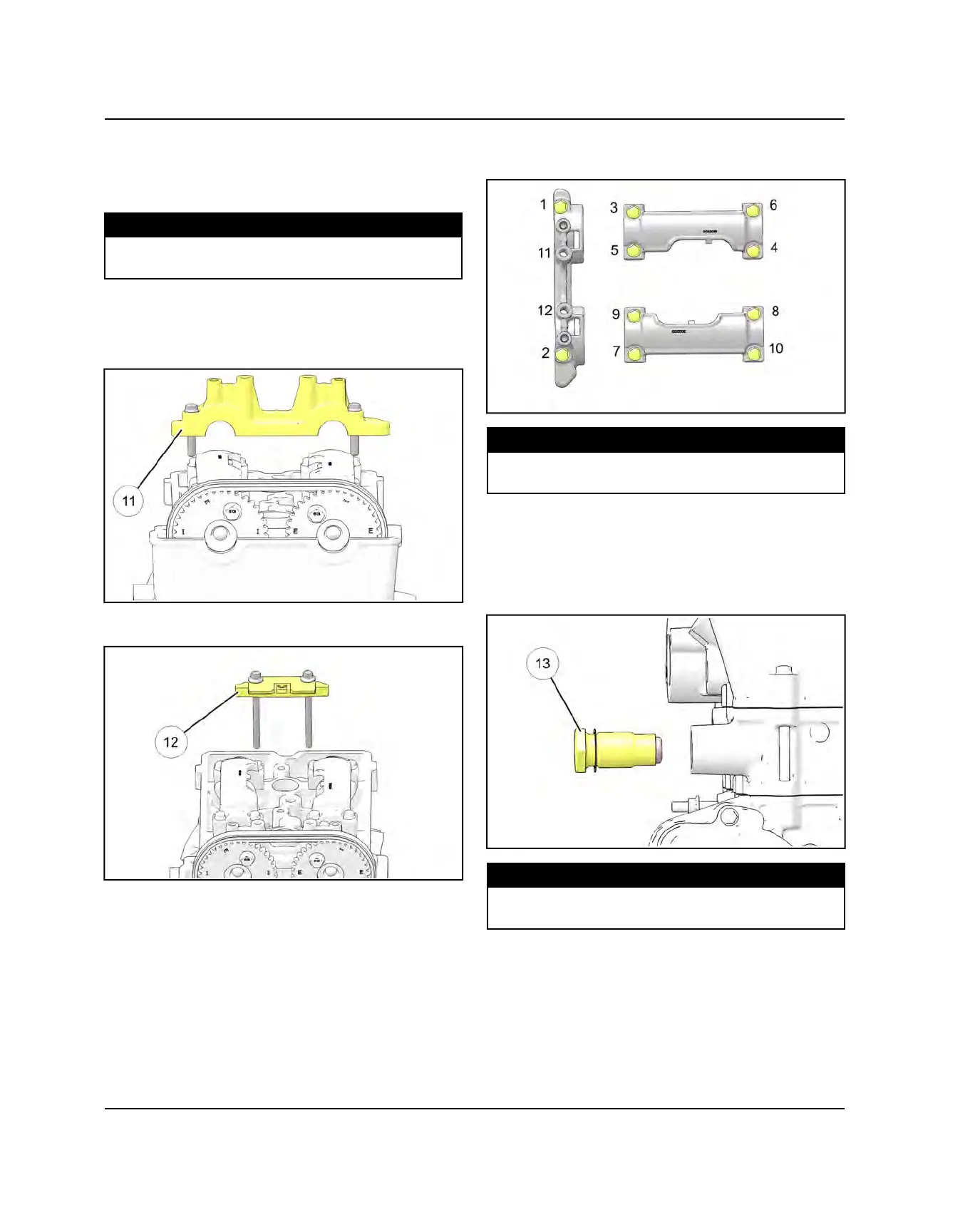

17. Rotate the engine using the flywheel and install the
remaining bolt in each camshaft sprocket. Hold
camshafts in place with an open-end wrench and
torque the sprocket bolts to specification.
TORQUE
Camshaft Sprocket Bolts:
11 ft-lb (15 Nm)
18. Rotate the engine using the flywheel and torque the
remaining sprocket bolts to specification.
19. Install the front camshaft carrier
s
and two outer
retaining bolts.
20. Install the fixed cam chain guide
d
and two retaining
bolts.
21. Torque the camshaft carriers bolts in sequence to
specification.
TORQUE
Camshaft Carrier Bolts:
7 ft-lb (10 Nm)
22. Apply Polaris PS-4 engine oil to the cam chain
tensioner bore prior to assembly. Use a new
tensioner sealing washer.
23. HYDRAULIC TENSIONER ONLY: Install the cam
chain tensioner
f
into the cylinder and torque to
specification.
TORQUE
Hydraulic Cam Chain Tensioner:
29 ft-lb (40 Nm)
ENGINE / COOLING SYSTEM
