9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.
5.35
DRIVEN CLUTCH SERVICE (NON-EBS)

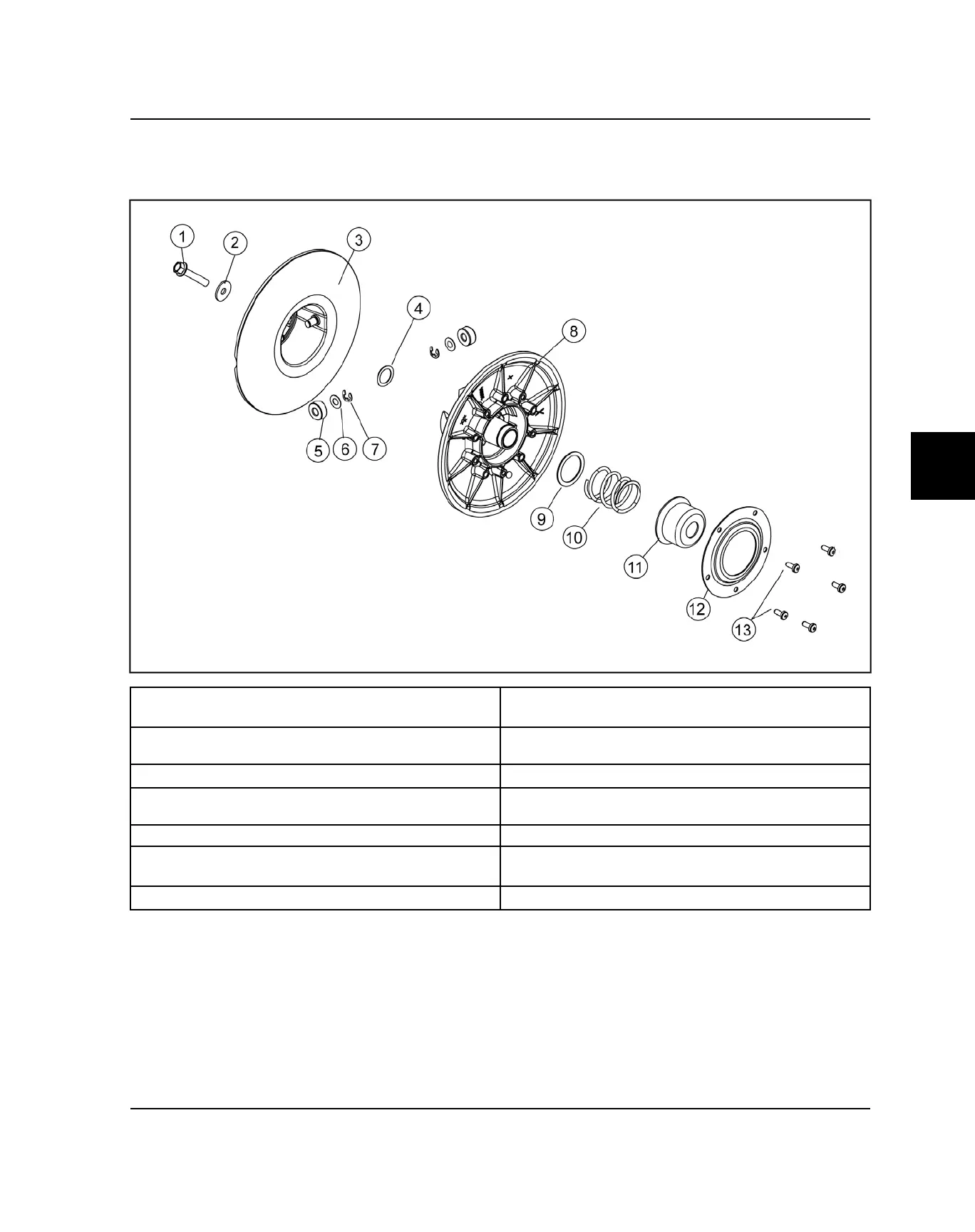

DRIVEN ASSEMBLY VIEW
q
Driven Clutch Bolt
55 ft-lbs (74 Nm)
i
Moveable Sheave
w
Domed Washer
Install dome side out.
o
Spacer
e
Fixed Sheave a
Driven Clutch Spring
r
Thrust Washer
1.189 x 0.838 x 0.12
s
Spring Cup
t
Rollers
d
Plate
y
Washers
f
Screws
12 ft-lbs (16 Nm)
u
E-Clips
PVT SYSTEM
