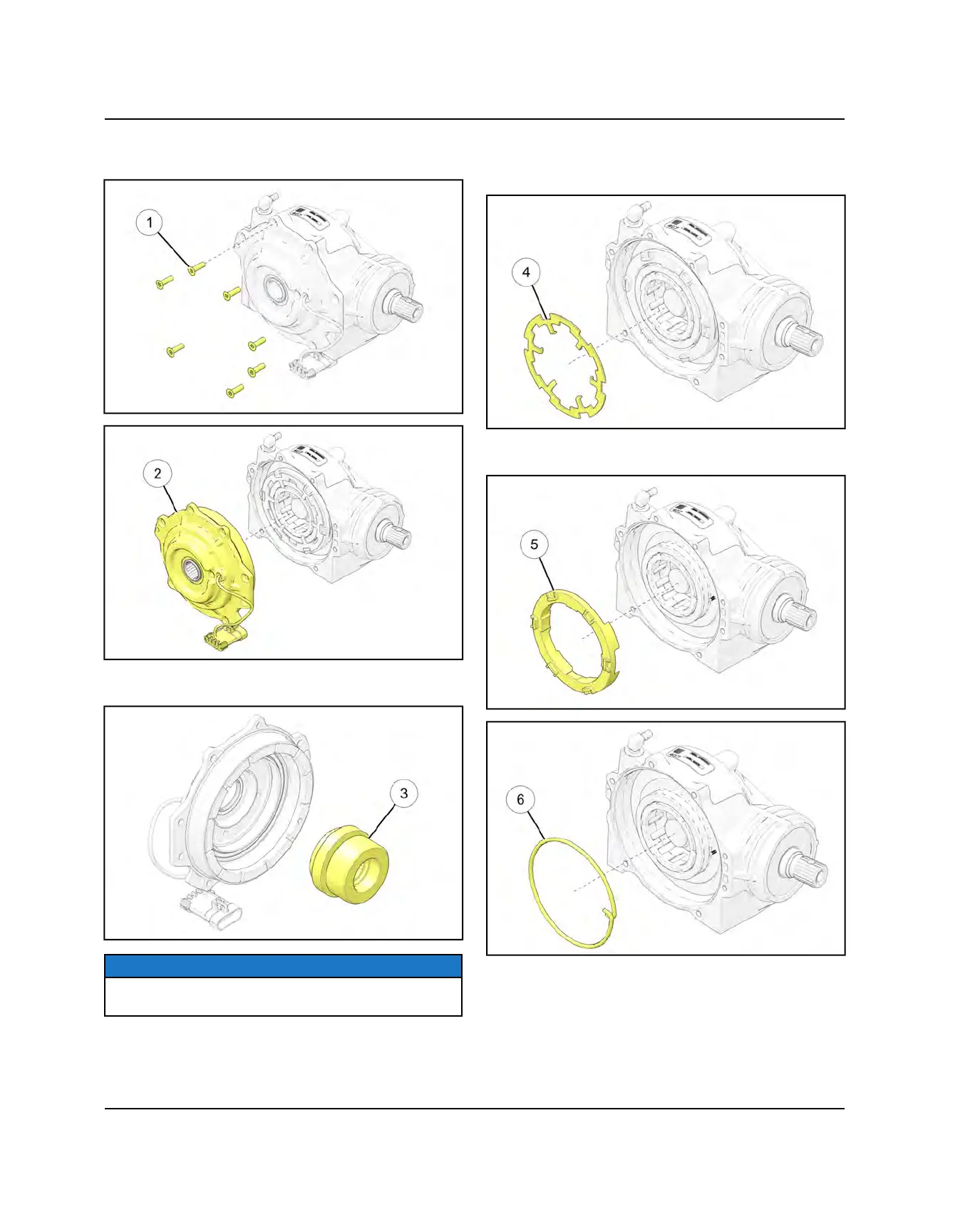

2. Remove the seven cover screws
q
and remove the
cover plate
w
assembly.
3. Remove the LH output hub assembly
e
from the
clutch housing or outer cover plate assembly.
NOTE
Nylon spacer is non-serviceable and should not be
removed.
4. Remove and inspect the armature plate
r
. Refer to
AWD Diagnosis, page 7.24 for detailed inspection
process.
5. Remove the torsion spring retainer
t
and torsion
spring
y
from the top of the ring gear.
FINAL DRIVE
