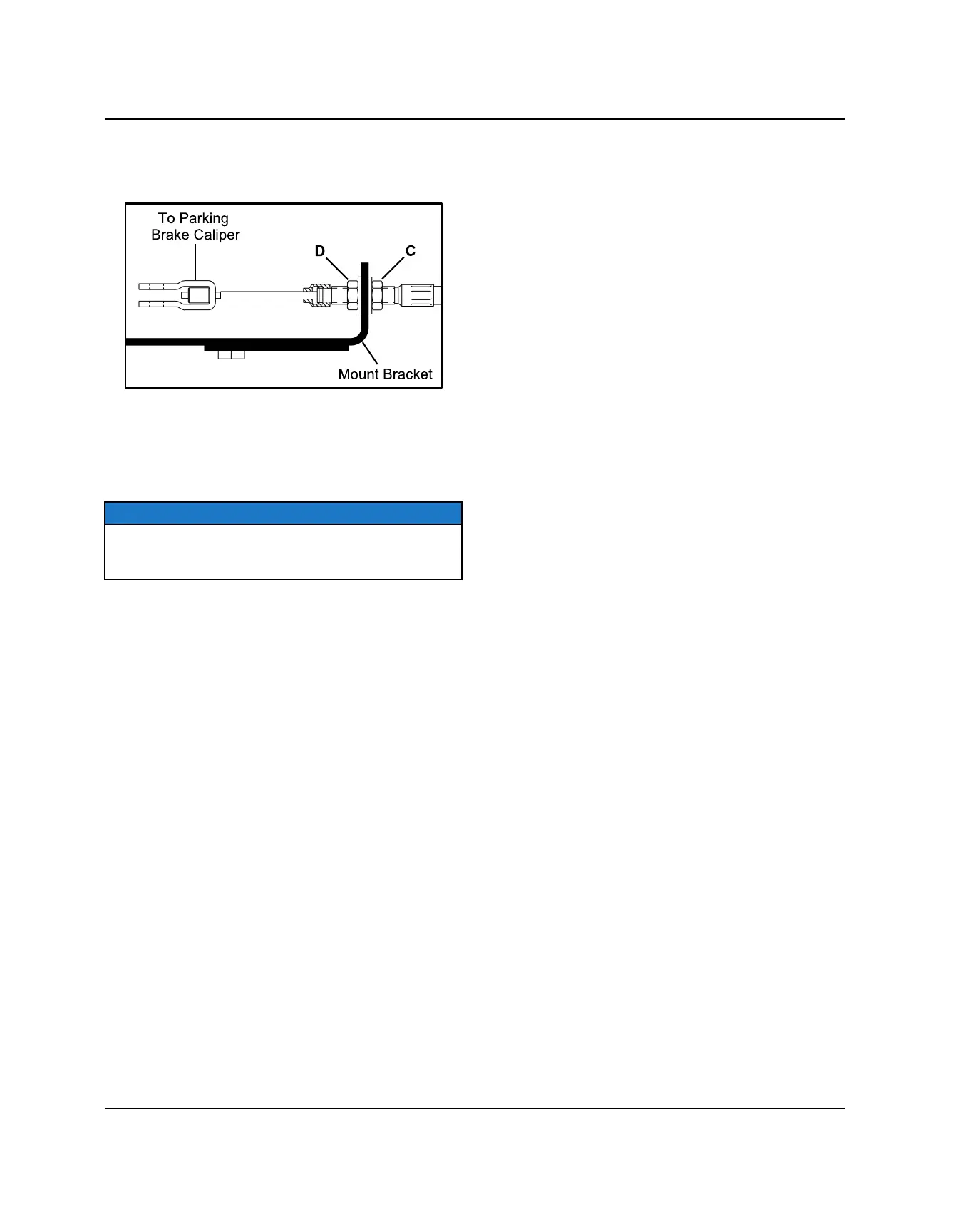

7. Use two open-end wrenches and loosen the outer
jam nut (D). Back out the outer jam nut (D) 1 1/2
turns.
8. Now hold the outer jam nut (D) and turn in the inner
jam nut (C) clockwise, until the jam nut is tight
against the bracket.
9. Repeat Step 3 and Step 4 until the proper
adjustment is obtained for the parking brake.
NOTE
See Chapter 10 – Parking Brake Switch (INT’L/Tractor),
page for more information on the parking brake
switch.
