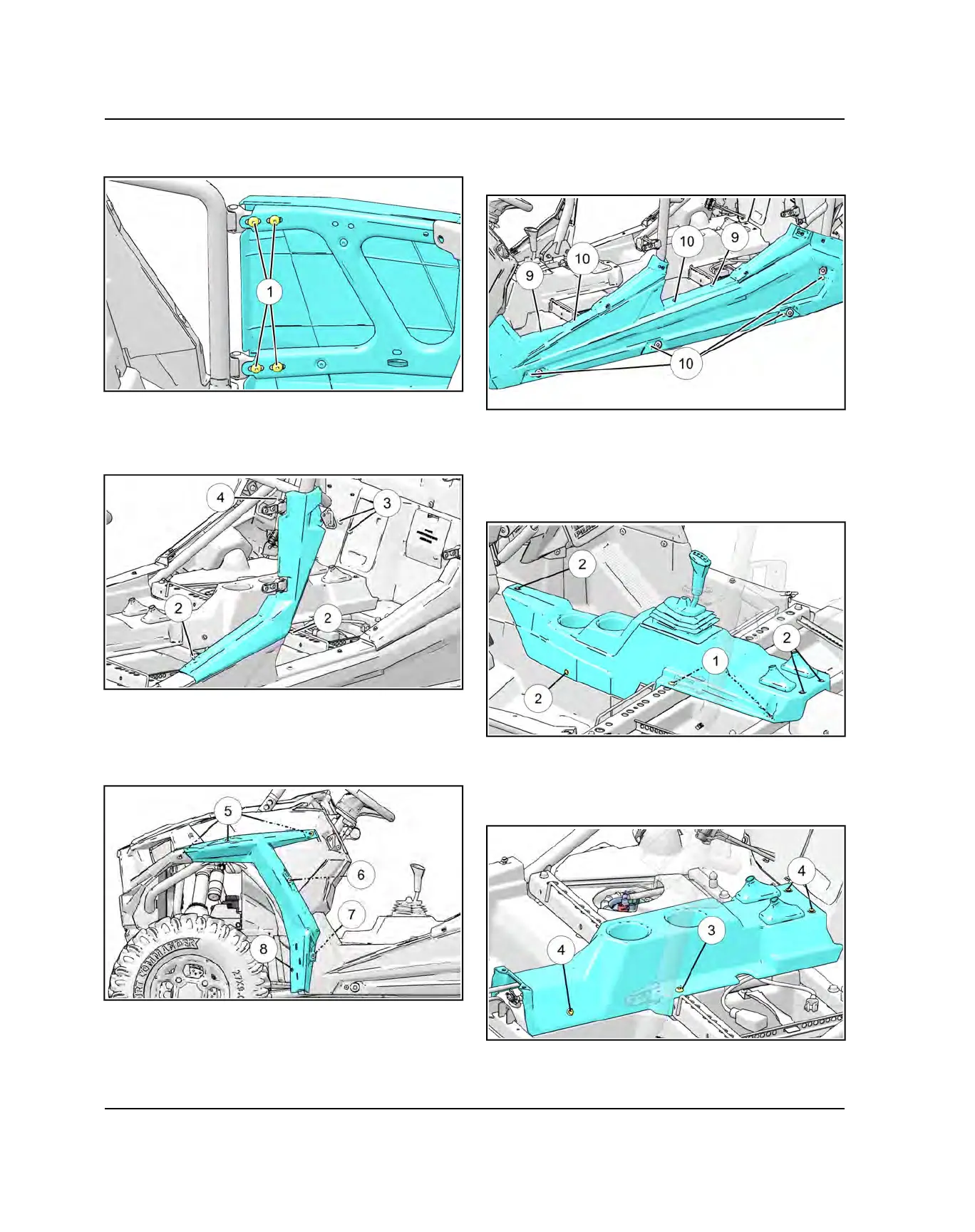

2. Remove the four Torx T40 rear door mounting
fasteners
q
and remove door.
3. Remove two push rivets
w
on the b-pillar. Remove
two Torx T40 door striker fasteners
e
and remove
striker. Remove one Torx T27 fastener
r
retaining
the b-pillar cover and remove cover.
4. Remove three Torx T40 fasteners
t
from top of front
fender flare. Remove two torx T40 fasteners
y
&
u
.
Note length and location of fasteners. Remove push
rivet
i
from front of front fender flare. Remove fender
flare.
5. Remove two push rivets
o
and six Torx T40
fasteners
o
retaining the rocker panel. Remove
rocker panel from the vehicle.
Console and Lower Floor Removal
1. Remove seats and rocker panels (Refer to Rocker
Panel / Console / Floor, page 10.21).
2. Remove four Torx T40 screws
q
and five push rivets
w
retaining the front console to the floor.
3. Remove shift handle knob and remove the front
console.
4. Remove the Torx T40 screws
e
and push rivets
r
retaining the rear console to the rear floor.
5. Remove the rear console.
