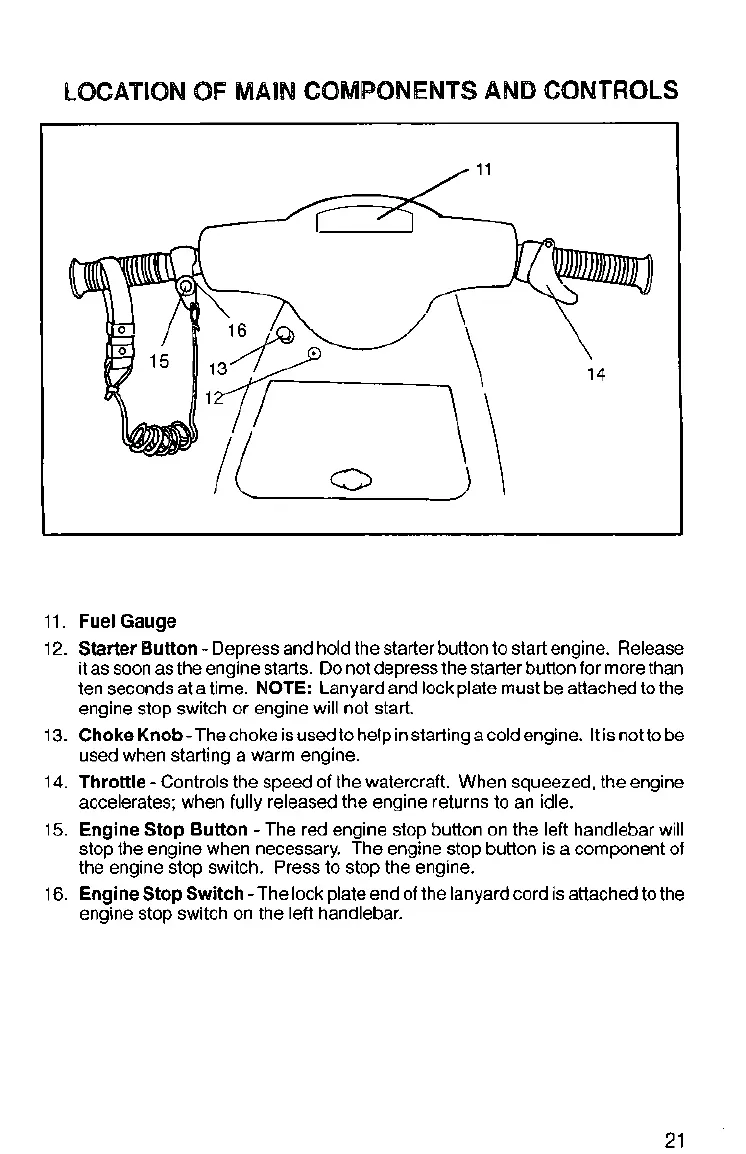

LOCATION
OF
MAIN
COMPONENTS
AND
CONTROLS
11.
Fuel Gauge
12.
Starter Button
-
Depress and hold the starter button to start engine. Release
it as soon as the engine starts. Do not depress the starter button for more than
ten seconds at a time. NOTE: Lanyard and lock plate must be attached to the
engine stop switch or engine will not start.
13.
Choke Knob- The choke is used to help in starting acold engine. It is not to be
used when starting a warm engine.
14.
Throttle
-
Controls the speed of the watercraft. When squeezed, the engine
accelerates; when fully released the engine returns to an idle.
15.
Engine Stop Button -The red engine stop button on the left handlebar will
stop the engine when necessary. The engine stop button is a component of
the engine stop switch. Press to stop the engine.
16.
Engine Stop Switch -The lock plate end of the lanyard cord is attached to the
engine stop switch on the left handlebar.
