Polaris VIRAGE W005197D User Manual

A12

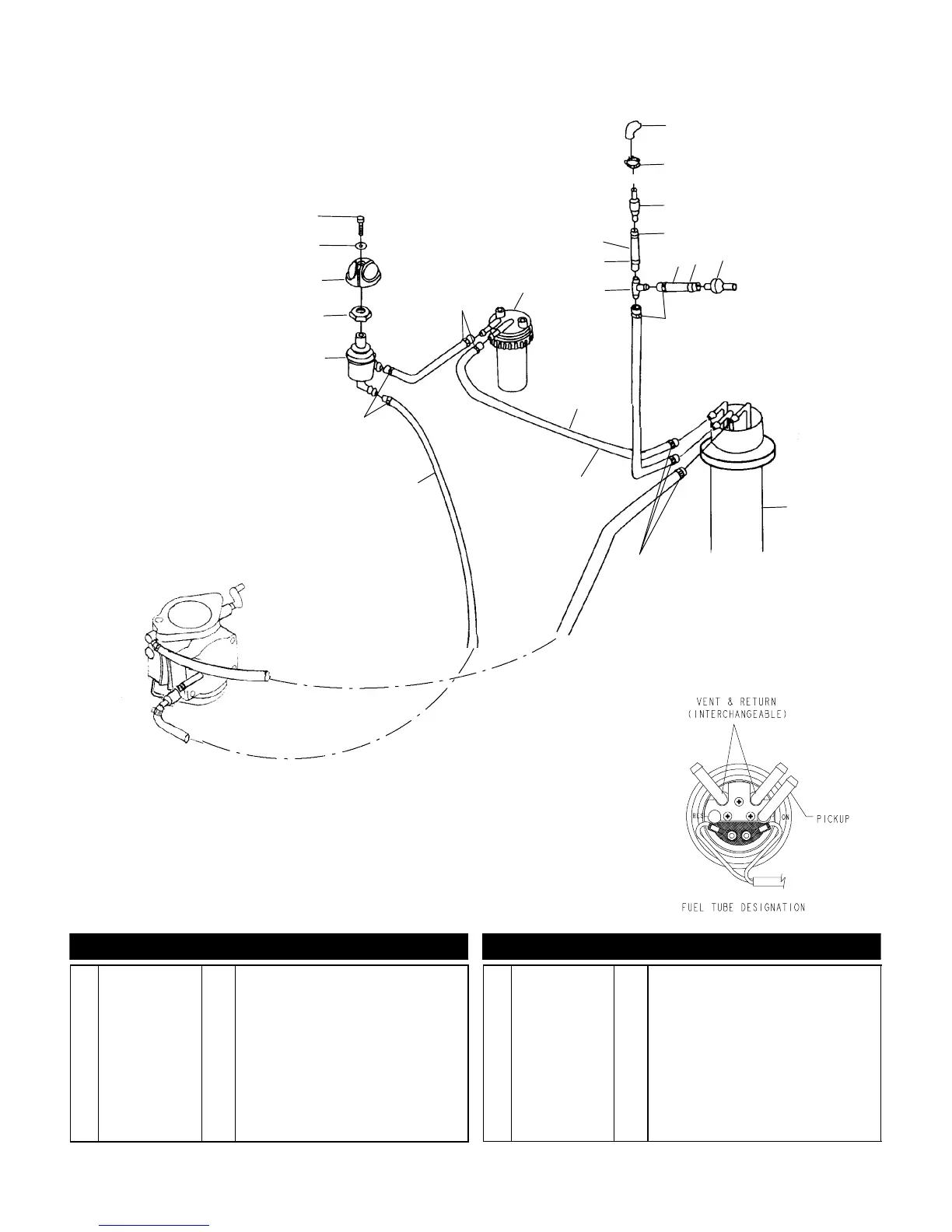

FUEL SYSTEM
VIRAGE W005197D and INT’L VIRAGE W005197I
1
2
3
4
5
6
7
8
14
10
11
9
15
6
7
7
7
6
13
13
6
12
6
NOTE: Fuel line from fuel/water
separator connects to fuel sender
fitting marked “ON.”
SEE NOTE
BELOW
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7516302 1 Screw
2 7555840 1 Washer, Flat
3 5432836-070 1 Knob, Fuel Valve, Black
4 5431451 1 Nut, Fuel Valve
5 7052159 1 Valve, Fuel
6 7080476 12 Clamp, Hose
7 8450046-1525 AR Line, Fuel
8 -- -- -- -- -- -- -- 1 Separator, Fuel/Water (See Fuel/Water
Separator Pg. C10, Ref. 5)
9 7052111 1 Fitting, Tee
10 5410682 1 Grommet, Vent
11 7080483 1 Cable Tie
12 7051015 1 Valve, Check
13 7080138 2 Cable Tie
14 7052118 1 Valve, Vacuum Check
15 -- -- -- -- -- -- -- 1 Asm., Fuel Sender
(See Fuel Tank Pg. A11, Ref. 19)
11/99
