Polaris VIRAGE W005197D User Manual

B4

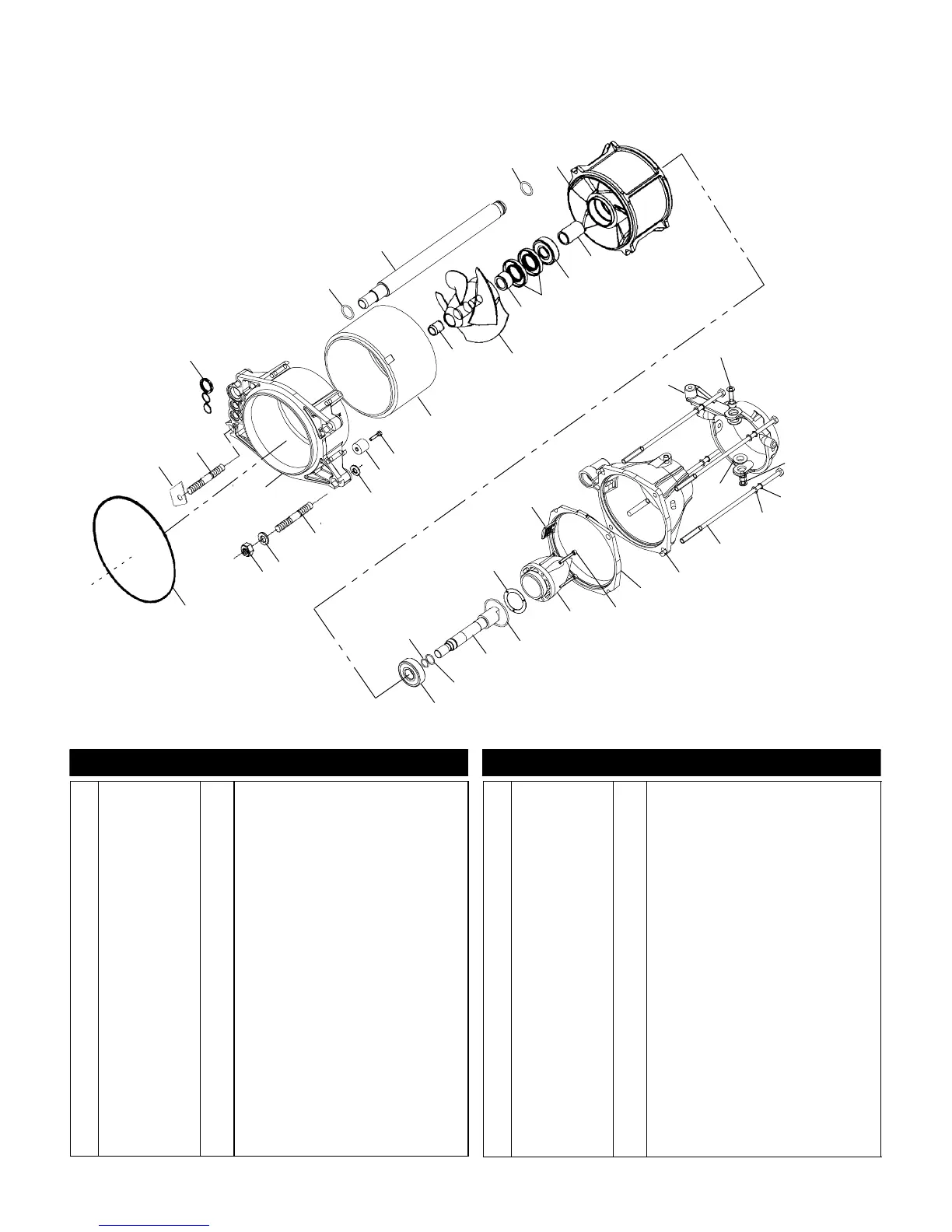

PROPULSION
VIRAGE W005197D and INT’L VIRAGE W005197I
3
37
27
23
28
32
35
36
21
8
25
29
6
4
5
24
34
31
30
7
9
10
11
17
13
8
15
14
18
33
2
1
16
2
26
20
4
19
22
12
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 5244556 1 Bracket, Steering Cable Nut
2 5132111 4 Stud, Mounting, Pump
3 5411107 1 Seal, Water Pipe
4 5410735 2 O-Ring
5 5432269 1 Pipe, Water, Engine
6 5130983 1 Stator, Pump
7 5010294 1 Spacer, Bearing
8 3514008 2 Bearing
9 3610043 2 Seal, Stator Bearing
10 5010295 1 Spacer, Impeller
11 5132372 1 Impeller
12 5411644 1 Seal, Impeller/Shaft
13 5131196 1 Extension, Pump
14 7522019 1 Screw
15 5630598 1 Anode, Zinc
16 7555941 4 Washer, Pump Stud
17 5131573 1 Housing, Pump
18 7555966 3 Washer, Flat
19 7542455 4 Nut, Nylok
20 5410652 1 O-Ring
21 5410817 1 O-Ring
22 5811984 1 Seal, Tailcone
23 5431523 1 Screen, Engine Inlet
24 5130999 1 Nozzle, Steering
25 7515366 2 Screw
26 5130938 2 Collar
27 7552610 4 Washer, Lock
28 7555835 4 Washer, Flat
29 5431518 2 Bearing, Steering Nozzle
30 7515389 4 Bolt
31 5131569 1 Nozzle, Stationary
32 5432841 1 Wedge, Pump
33 7512064 3 Screw
34 5431519 1 Cone, Pump
35 5410819 1 O-Ring
36 5020697 1 Shaft, Stub
37 5410818 1 O-Ring
7/00
