Polaris VIRAGE W005197D User Manual

C9

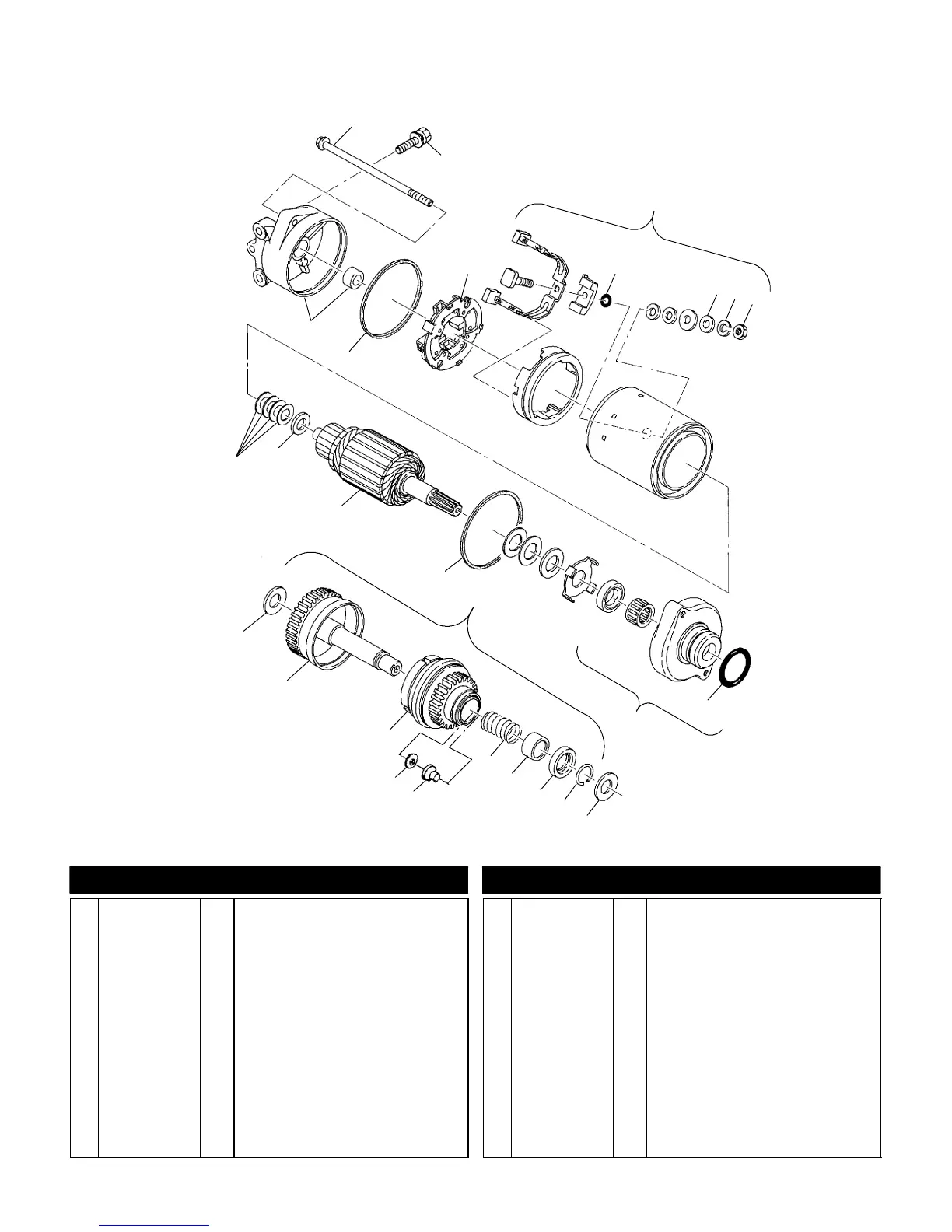

STARTING MOTOR
VIRAGE W005197D and INT’L VIRAGE W005197I
12
1
2
3
5
6
7
8
9
11
9
16
17
18
19
20
21
25
17
13
15
10
22
23
14
4
24
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
4060118 1 Starter, Big Bore
1 3240113 2 Bolt, Through
2 7516807 2 Screw
3 3240111 4 Spring, Brush
4 3240115 1 Asm., Brush (Incl. 3-8)
5 3084408 1 O-Ring
6 3240119 1 Washer
7 3240117 1 Washer, Spring
8 3240116 1 Nut
9 3084405 2 Ring, Rubber
10 3240207 1 Asm., Rear Bracket
11 3240118 AR Washer, Thrust
12 3240112 1 Washer, Thrust
13 3240205 1 Asm., Armature
14 4060119 1 Asm., Bendix (Incl. 17-25)
15 3240206 1 Asm., Front Bracket
16 3240114 1 O-Ring
17 3083737 1 Washer
18 3240126 1 Ring, Snap
19 3240125 1 Stopper
20 3240123 1 Cover
21 7041457 1 Spring
22 3574214 1 Bushing, Flanged
23 7555908 1 Washer, Thrust
24 3240122 1 Asm., Gear
25 3240120 1 Asm., Gear (Incl. 17-24)
10/99
