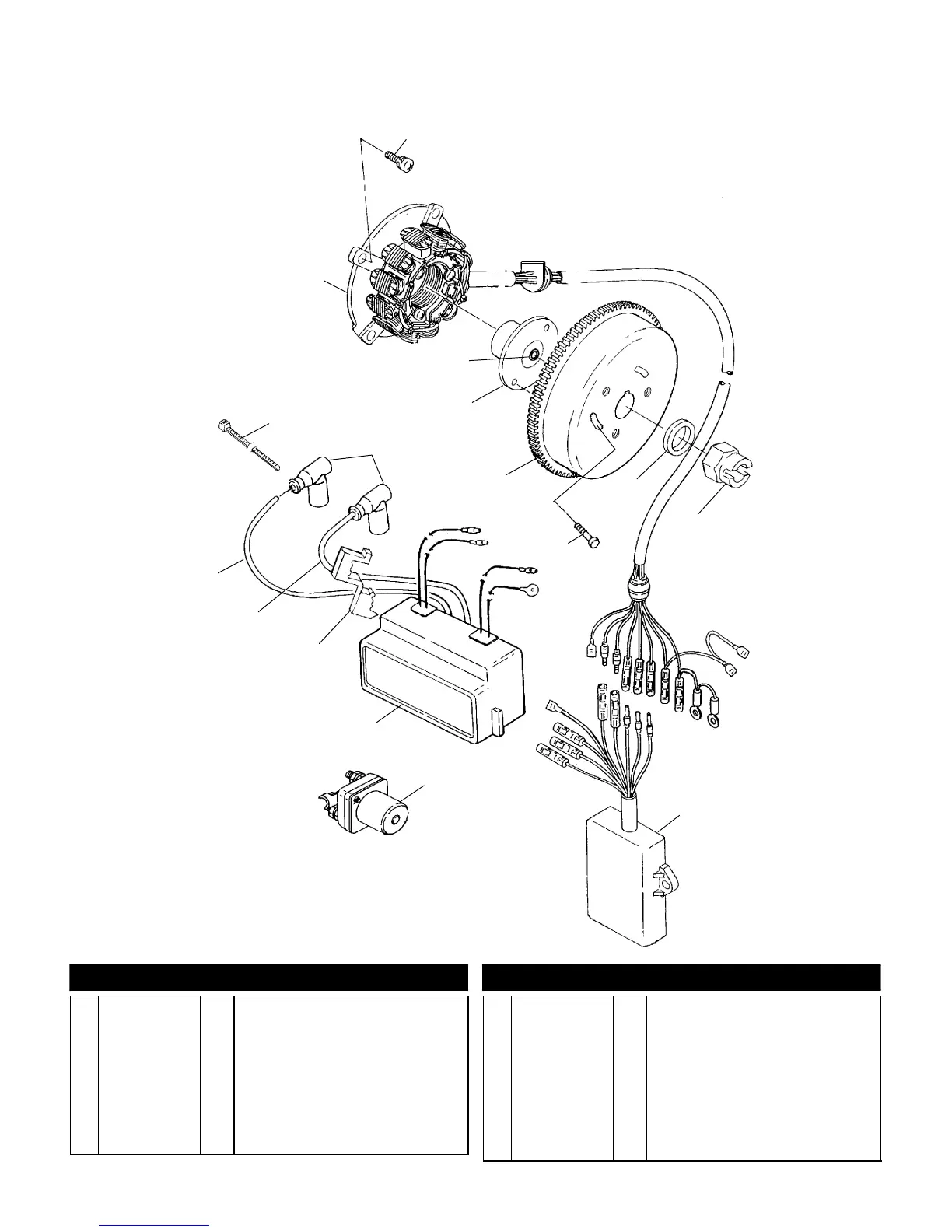

Polaris VIRAGE W005197D

C8
MAGNETO
VIRAGE W005197D and INT’L VIRAGE W005197I
2
1
5
8
9
7
11
16
15
13
10
6
14
12
3
4
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 4010172 1 Stator, Twin
2 7517384 3 Screw
3 5811320 1 O-Ring
4 5432282 1 Holder, Magnet
5 4010189 1 Asm., Flywheel
6 7517431 1 Screw
7 7555907 1 Washer
8 7546909 1 Nut
9 4010348 1 Controller, Ignition
10 4010228 1 Solenoid, Starter
11 4010175 1 Coil, Ignition
12 7080471 1 Clip
13 4010173-42 1 Wire, Spark Plug
14 4010173-56 1 Wire, Spark Plug
15 7080483 2 Cable Tie
16 4020155 2 Cap, Spark Plug
