27. Using Universal Flex Removal Tool, remove Flex from Contact Support Block and
Motor (Fig. 23). Now lift Wire Block Assembly off the Cone and remove the Flex
from the Wire Block (Fig. 23).

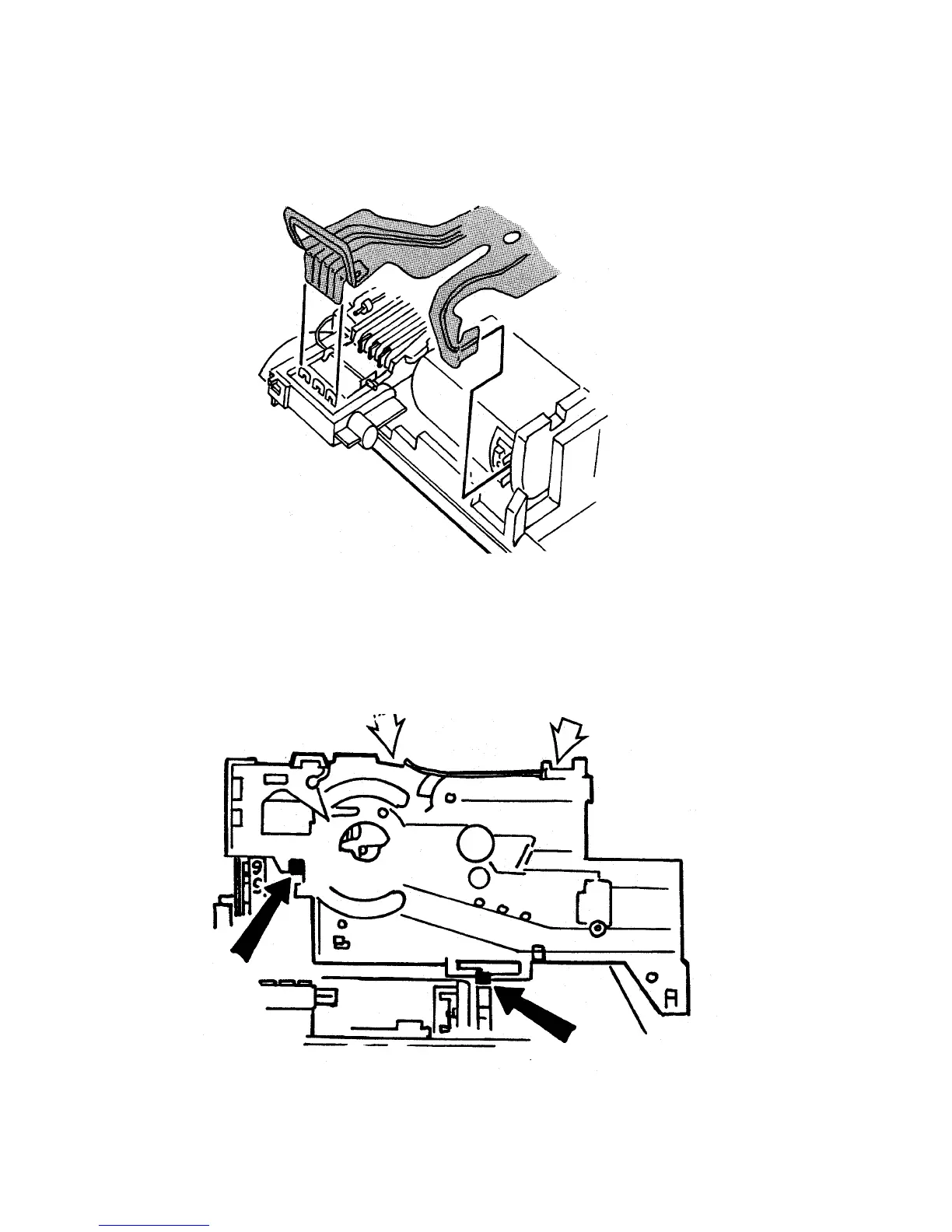

Fig. 23 Removing Flex from Contact Support Block, Motor and Wire Block
28. Remove the Base Block from the Cone by releasing the two locking tangs near
Motor and Counter Wheel (see Fig. 24), swinging bottom edge of Base Block out
and lifting it off the two shoulders at the top of the Cone.
Fig. 24 Removing Base Block from Cone
53
