15. Remove the Pack Spring by depressing it with your thumb and pulling it forward,
out of the Body (Fig. 15). (If the Camera has a Tripod Nut, it will now fall out.)

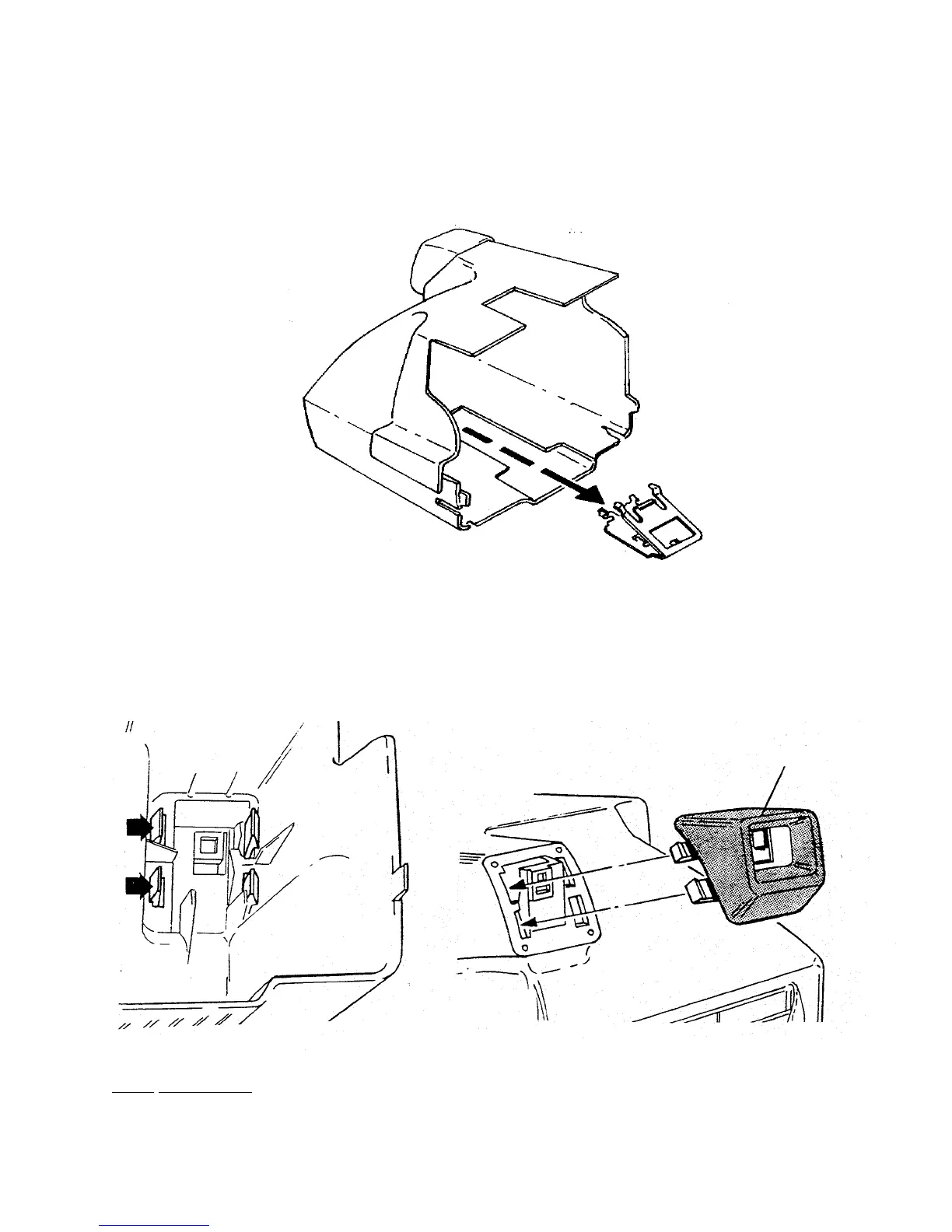

Fig. 15 Removing Pack Spring and if present, Tripod Nut
16. To Remove the Eyecup/Retainer (one unit), from inside the Body depress either pair
of the four tabs shown in Fig. 16 and remove the Eyecup/Retainer.
Fig. 16 Removing the Eye Cup/Retainer
Body Reassembly
Replace parts removed in Steps 14 - 16. (Pack Spring holds Tripod Nut in place.)
Eye Cup Retainer
48
