System Connections

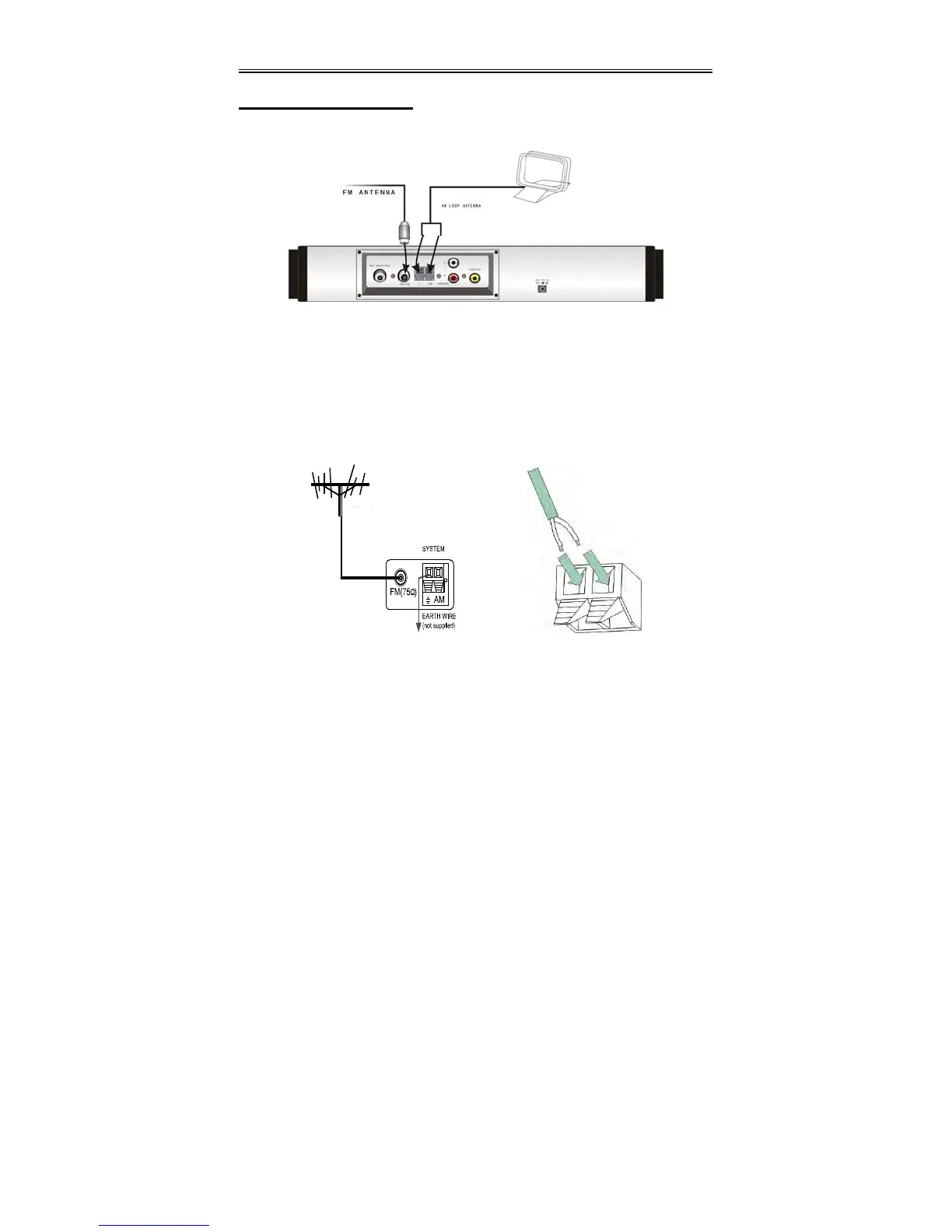

Connecting To Antenna
Connect the supplied AM/FM antennas to listen to the radio.
• In order to improve the signal, move AM loop antenna away from system and
other equipment.
• Extend FM antenna fully.
• Keep the FM antenna as horizontal as possible after connection.
• When connecting the supplied AM loop antenna, connect two black cords to AM
and ground jacks as shown below.
• If the FM reception is poor, use a 75Ω coaxial cable (not supplied) to connect
system to an outdoor FM antenna as above.
• If you connect the system with outdoor FM antenna, you should earth the system
in order to avoid lightning strike.
• Do not connect the earth wire to gas pipe to prevent gas explosion.
OUT DOOR
FM ANTENNA
(not supplied)
To Next Page
