1 – LCD;
2, 3 – control buttons;
4 – sound buzzer;
5 – red LED alarm;
6 – USB protective plug;
7 – eyelet for lanyard;
8 – battery;
9 – battery cover.

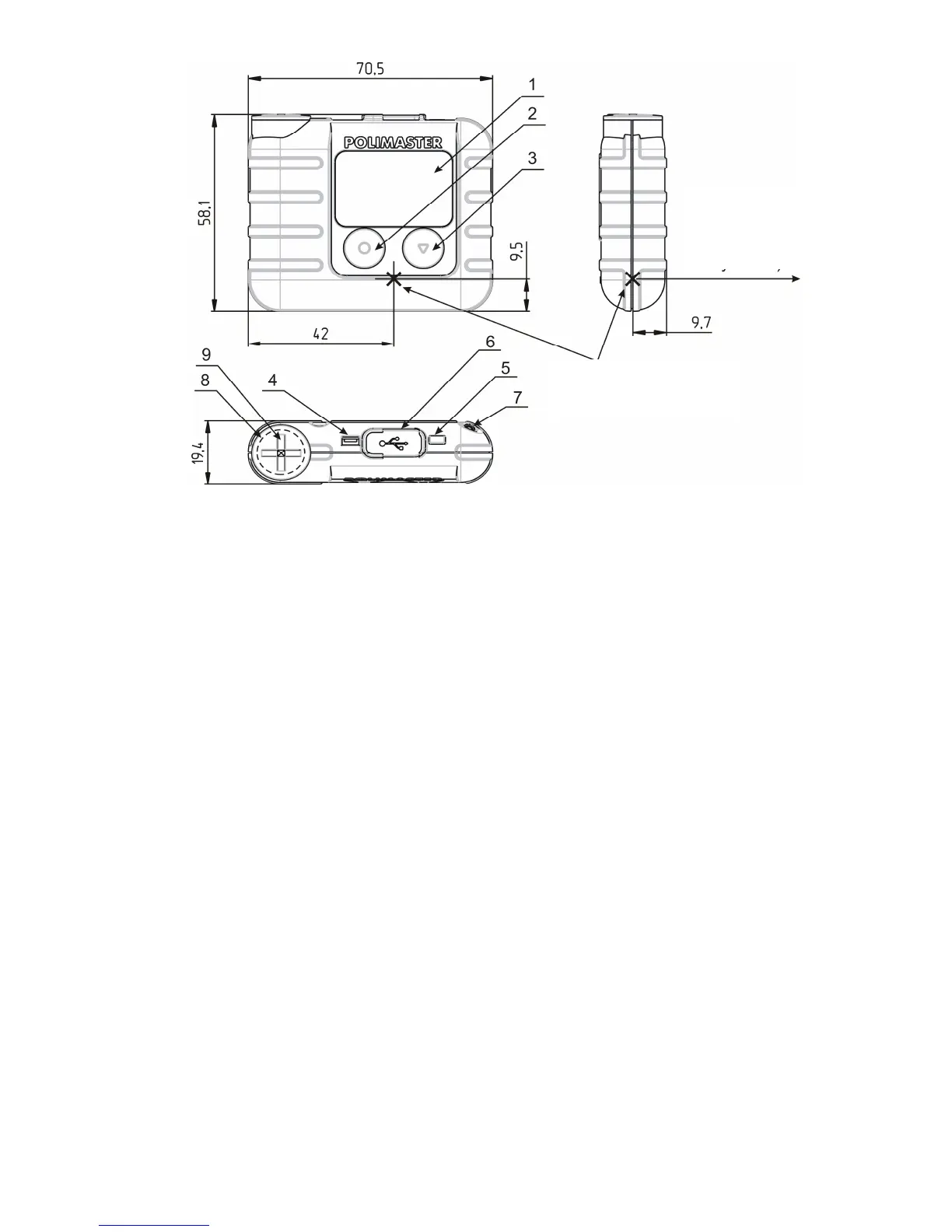

Figure 1.2 – Overall dimensions, geometrical center of the detector and direction of calibration
Scale direction (to
the radiation
source)
Detector
geometrical center
