GETTING FAMILIAR
POWER / VOLUME
This control toggle the
transceiver’s power on/off and
adjust the audio volume level.
ANTENNA
Connect the supplied
antenna here.
LED INDICATOR LIGHT
The indicator light turns red
when transmit, turns green
when receive.
It blinks red when the battery
capacity is low, and blinks
green when scanning.
MICROPHONE
Sound input.
SPEAKER
The internal speaker is loca-
ted here.
#T-R
Short press this key under
standby mode can shift the
VFO Mode and MR mode, long
press this key can exchange
of RX frequency and TX
frequency.
U/V
This key can be used to shift
the band A/B, and exited the
Function Menu.

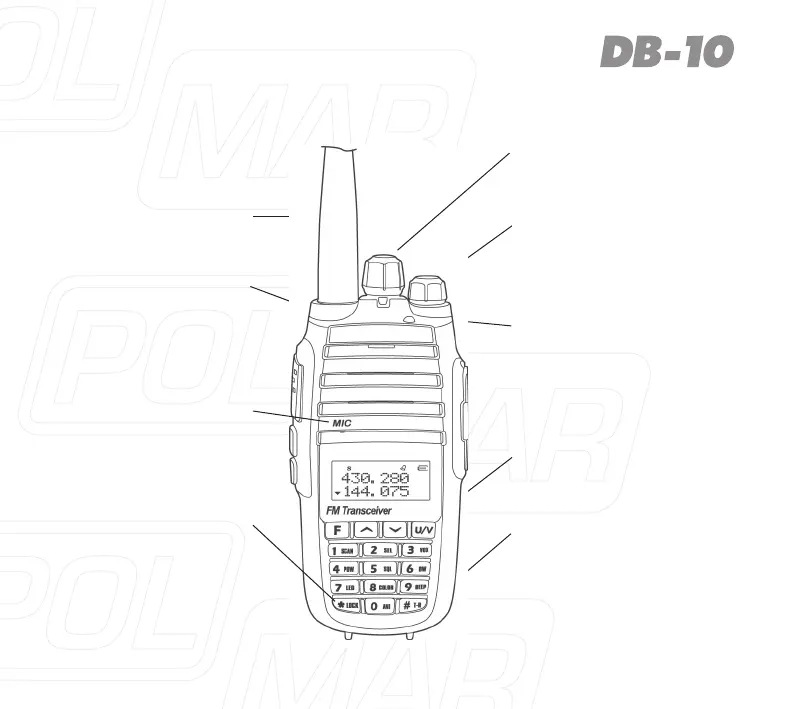

Pic. 7
CHANNEL KNOB
Using to adjusting the channel
and frequency.
LOCK
Long press this key can lock
or unlock the keypad under
standby mode.
