5. The user min value for the “Amplifier” submix has been set to -31dB to map the volume range
from the HDX codec 0 to 50 into the range of -31 to +20 on the fader of the “Amplifier” channel.

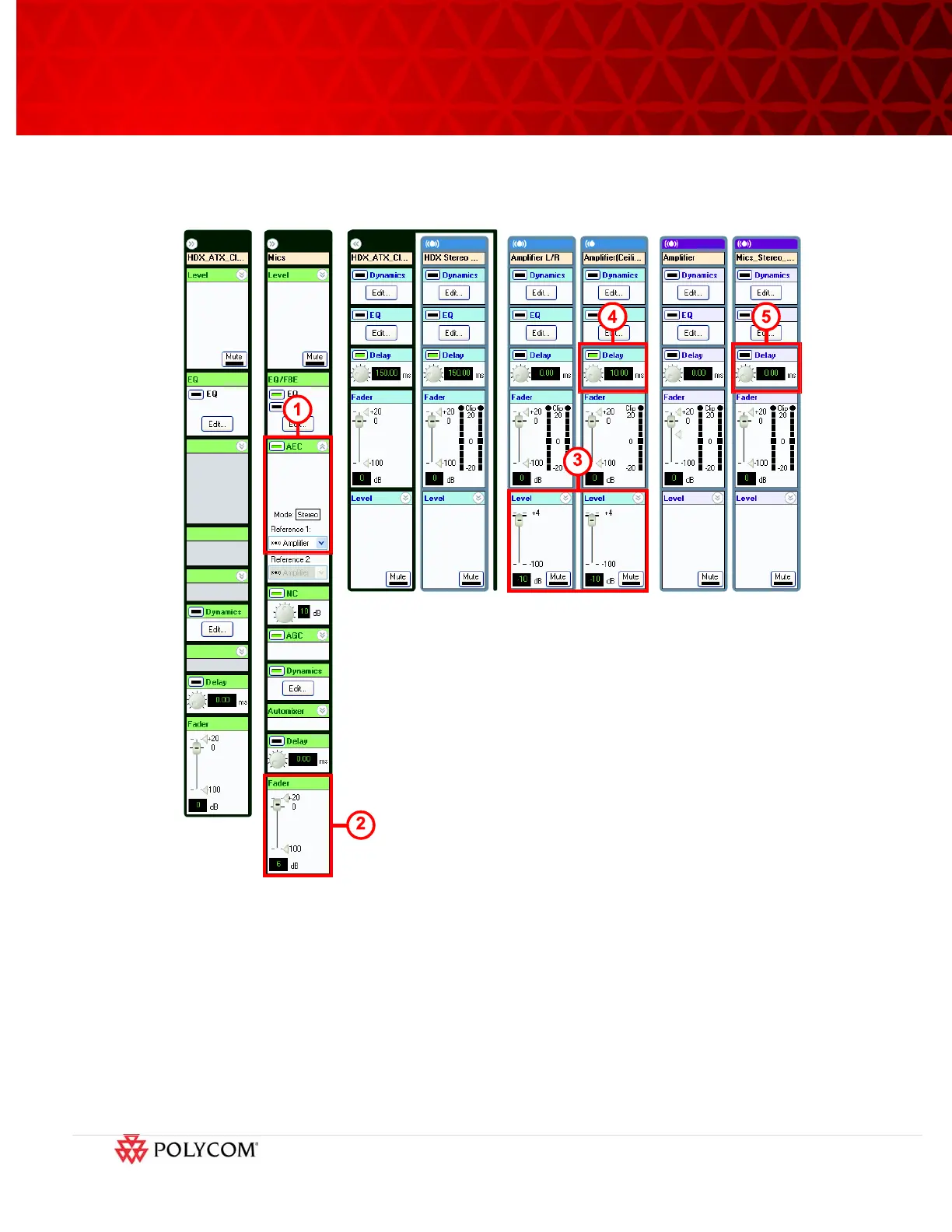

Figure 11. SoundStructure Channels page of the example configuration file.
5.4 Saving the configuration file settings
Once the audio settings have been adjusted to meet the application requirements, other settings such as
static IP address, system name, RS232 baud rate, etc. may be set for the system by using
SoundStructure Studio.
If there are other changes made to the configuration file, navigate to the preset page, and select the
‘Save Selected’ option to save any changes to the Power-On preset and, if working online, to save
