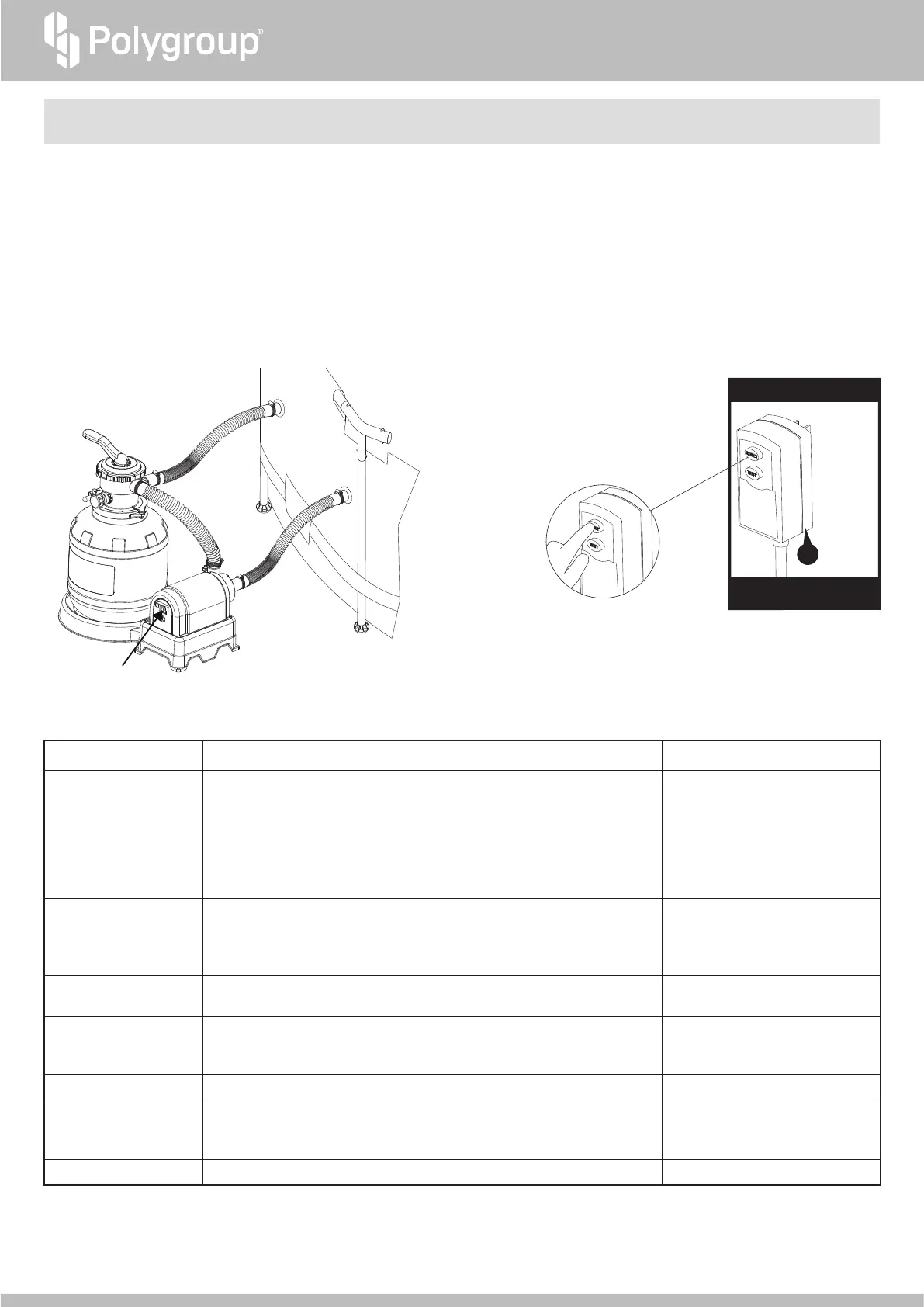

14
POWER SWITCH
Pool Outlet
Pool Inlet
USE OF PUMP
IMPORTANT: Do NOT
connect to a timer device!
Press
"RESET"
Button
To Start
Pump
Operation
How to use the GFCI plug
*Do not connect
to a timer device
4
Before using the Pump
IMPORTANT:
1. Make sure to press the pump power switch to OFF before plugging the GFCI Power Cord Set
4
into a power outlet. Do NOT connect the Set to a timer device.
2. Always PRESS DOWN the 6-Port Valve Handle
a
BEFORE switching handle positions.
3. Always BACKWASH the sand before filtering. This prevents fine sand from going through the pump and then to the pool, meanwhile washes off the dirt and debris
of the sand.
4. Make sure that the Hoses
r
t
are firmly secured to the fittings on the pump and the pool.
5. Fill the pool with water up to the FILL LINE. Do NOT dry run the filter pump.
6. FILTER PUMP ALONE WILL NOT PREVENT ALGAE FROM GROWING IN POOL WATER; THIS CAN ONLY BE DONE BY MAINTAINING PROPER CHLORINE
AND pH LEVELS AT ALL TIMES. For details, see POOL WATER CARE (p. 16).
FUNCTIONS OF 6-PORT VALVE
Water Flow DirectionValve Handle Position
WASTE
NULL
RECIRCULATE
CLOSED
DO NOT SWITCH
ON THE PUMP
FILTER3
BACKWASH1
RINSE2
Function
Reverses the water flow to wash the sand
Also prevents fine sand from ending up in your pool
ALWAYS remove the Blue Drain Outlet Cap
w
before using this setting,
and replace the cap when done.
* Backwash the sand when the pressure reading is 1-1.5 bar (14.5-21.8
psi) ABOVE the initial pressure OR at least once every 2 weeks.
Continue to backwash until the water from the drain outlet runs clean.
Levels out the sand bed after backwashing
ALWAYS remove the Blue Drain Outlet Cap
w
before using this setting,
and replace the cap when done.
Continue to rinse until the water from the drain outlet runs clean.
Normal filtration and vacuuming of the pool
Recirculates water without filtering
For winterizing and storage
Vacuums water directly to drain and lowers the pool water level
ALWAYS remove the Blue Drain Outlet Cap
w
before using this setting,
and replace the cap when done.
Shuts off the water flow between the sand filter system and the pool
DO NOT SWITCH ON THE PUMP
Pool → Pump → Sand (Forward)
→ Drain Outlet
Pool → Pump → Sand (Backward)
→ Drain Outlet
Pool → Pump → Sand (Forward)
→ Pool
Pool → Pump → Drain Outlet
Pool → Pump → Pool
Excess water flow
No water flow
DO NOT SWITCH ON THE PUMP
To Next Page
