Page 8 of 20
March 2024
PJN3 SERIES
RECIRCULATING FLUSH

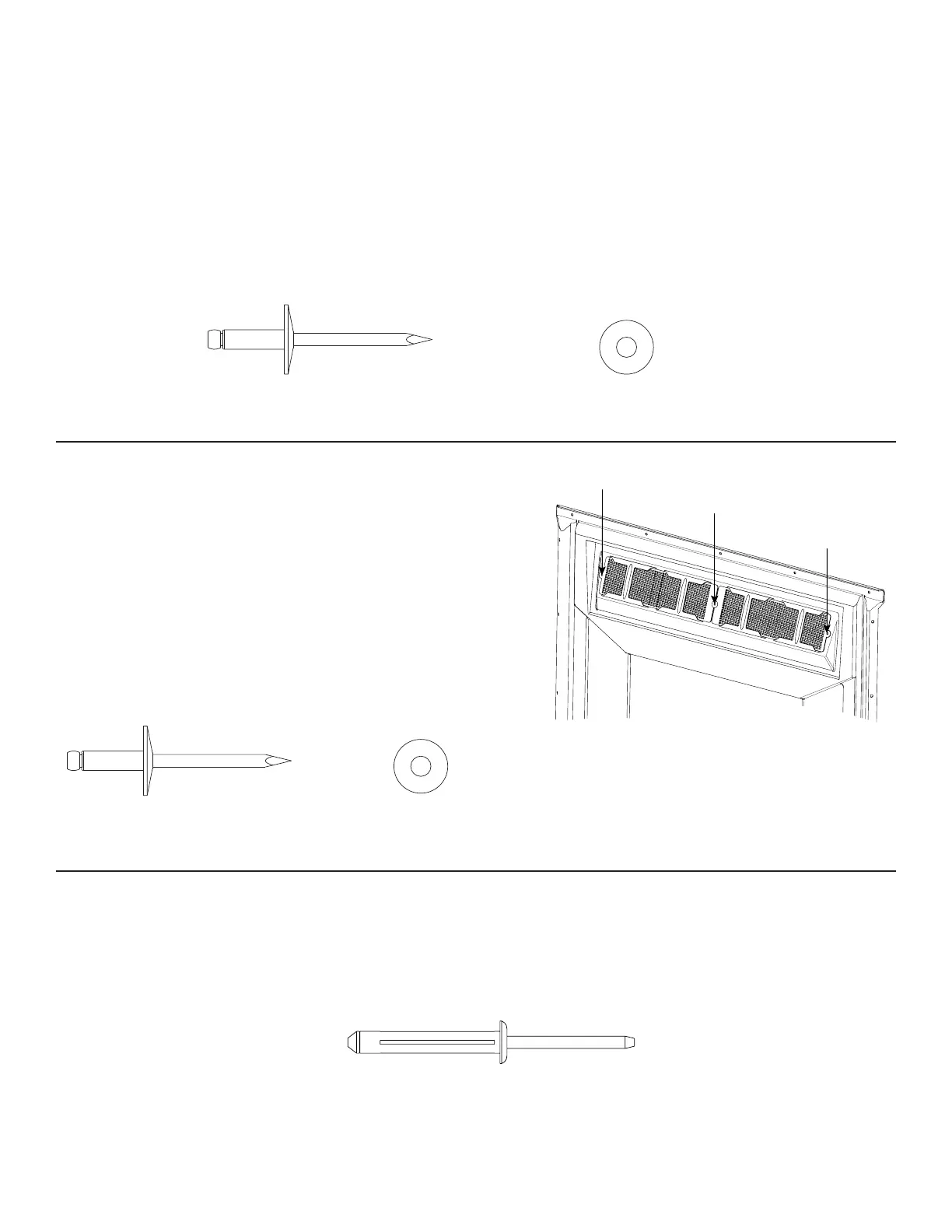

ROOF INSTALLATION:
Position the roof over the wall panels, make sure the hole for the tank ventilation tube is above the corresponding hole in the holding tank. (The front and three side panels
are supplied with predrilled holes at the top center of each panel. The roof is supplied with five predrilled holes on each of the four edges.) Start with the front of the unit.
Align the predrilled top center roof holes to the center holes of the wall panels and front assembly. From the outside of the restroom one person will rivet PC-000100 rivets
through each of the four top center holes, while another person inside the restroom puts PC-000106 back-up washers on the rivet stems. Next, holding the roof firmly down,
using the remaining predrilled holes in the roof, drill 13/64” holes through to the wall panels and front assembly. The person on the outside will again, rivet the PC-000100
rivets through the drilled holes while another person puts the PC-000106 back-up washers on the rivet stems.
VENTILATION STACK INSTALLATION:
Force the vent stack up through the 4” diameter hole in the roof. (This is intended to be a tight fit.) Slide the vent stack down and into the 4” diameter recessed hole in the
holding tank so that it rests on the round ledge of the hole in the tank. Drill a 13/64” hole through the boss and vent stack. Fasten the vent stack in place with a PC-000117
rivet.
STEP 8:
STEP 10:
ASSEMBLY INSTRUCTIONS
PC-000100 Rivet
9 used in this step
FLY SCREEN INSTALLATION:
(Each of the three sidewall panels has two vent screens. On the surface of each vent screen
there is a date stamp symbol. The symbol goes toward the center of the sidewall panel, facing
the inside.)
For each of the three sidewalls, insert one screen from each side of the vent slot and overlap
the center holes at the date stamp symbol (as shown in Figure 4). IMPORTANT - Make sure
both screens together are centered in the vent slots. Drill a 13/64” hole through the
center hole of the screen and into the sidewall. Rivet the screen in place from the outside using
a PC-000100 rivet with a PC-000106 back-up washer on the inside. Using the hole at each
end of the screen as a guide, drill 13/64” holes through the vent screens and into the sidewall
panels. Rivet the screens in place using PC-000100 rivets on the outside with PC-000106
back-up washers on the inside.
STEP 9:
Figure 7
PC-000106 Washer
9 used in this step
PC-000100 Rivet
20 used in this step
PC-000106 Washer
20 used in this step
PC-000117 Rivet
1 used in this step
