3-23
3 First Steps
Vibration
sensor
13. If required screw the isolation stud of the optional A-VIB-ACC1 vibration
sensor into the
10-32UNF-2B thread on the back of the scanning head.
14. Screw the vibration sensor on the isolation stud.
15. Connect up the vibration sensor to a
REF BNC jack on the front of the
front-end.

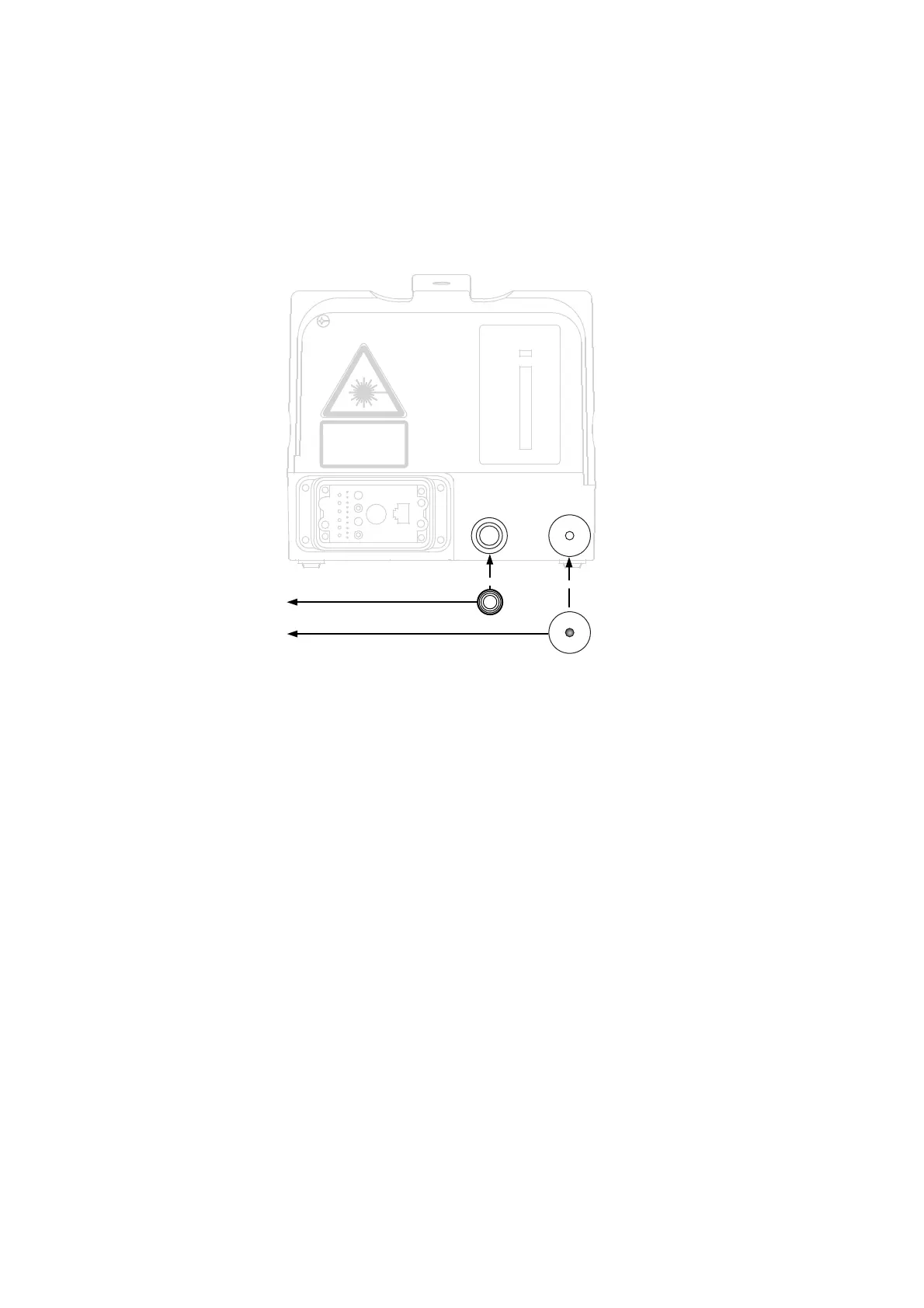

Figure 3.19: Cabling of the scanning head
OPTION
LASER
SIGNAL
PSV-500
SCANNING HEAD
Polytec
10-32
UNF-2B
EXTERNAL SCANNER
CONTROL (OPTIONAL)
REF
