PoolPak PCP Series - Two-Compressor Arrangement; Air Conditioning Options (OACC)

September 2020 13 PoolPak PCP Series – Indoor OMM
Dehumidifier Optional Arrangement.
Two-Compressor Arrangement
Standard PCP series dehumidifier has one compressor,
however two-compressor arrangement is available also. Note,
that all options and details, provided above, apply to both,
standard and two-compressor arrangement:
• Single Deck dehumidifier has same dimensions,
features and options as standard single-compressor
one, except for two compressor/refrigeration circuits
instead of one.

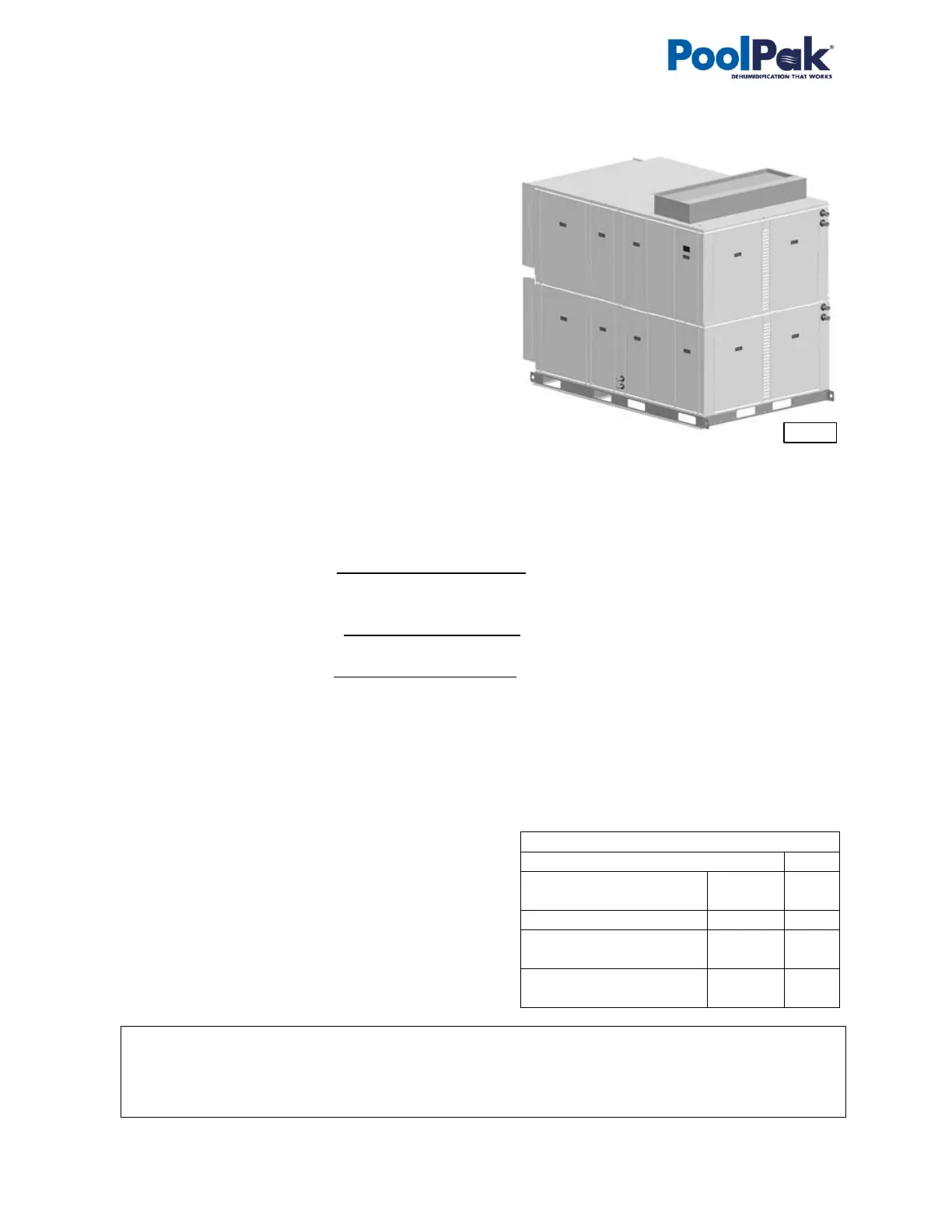

• “Double-Decker” dehumidifier is shown on Pic. C.3.
It is composed of two identical dehumidifiers, one
installed on top of another and controlled as a single
dehumidifier (each deck is equipped with one
compressor/refrigeration circuit).
Single and Two-Compressor Arrangement – Dehumidifier Model
Dehumidifier typical arrangement, total capacity, and number of compressors are reflected in its model (for
specific dehumidifier model refer to its Main Label – see Specific Data Info below):
• PCP3000 to PCP5000 models – single-deck single-compressor dehumidifier.
Two -compressor PCP series dehumidifier:
• PCP5500 and PCP6000 models - single-deck two-compressor dehumidifier (single deck equipped with two
compressors);
• PCP3030 to PCP5050 models - double-deck two-compressor dehumidifier, composed of two identical single-
deck single-compressor dehumidifiers (thus doubling the capacity).
Most often, “Double-Decker” comes as two horizontal dehumidifiers, one “stacked” on the top of another,
however it could also be composed of two dehumidifiers (horizontal OR vertical) installed side by side or
separately, still being controlled as one.
Air Conditioning Option - Outdoor Air Condensers (OACC)
Basic views of standard outdoor air condensers are shown on
Pic.C.4-C (below); standard combinations of the dehumidifier
and outdoor air condensers are shown in Table C.1.C
* Table C.1.C shows standard dehumidifier and
condenser combination; depending on number of factors,
dehumidifier may have different condenser provided with it -
refer to the dehumidifier’s submittal documentation for more
details.
Table C.1.C Dehumidifier-AC Combination*
Dehumidifier – Outdoor Condenser**
Fig.#
PCP0800 – PCP1200
PCP0808 – PCP1212
NC-B
1
PCP1400 – PCP3000
NC-Z-1
2
PCP3500 – PCP 5500
PCP1414 – PCP3030
NC-Z-2
3
PCP6000
PCP3535-PCP5050
NC-Z-4
-
Pic. C.3
Attention! Equipment Clearances!
Proper clearances should be maintained for adequate airflow and heat rejection! Generally, up to 36” side and
96” top clearances are required. For more information on clearances as well as equipment dimensions and other
details, refer to the submittal documentation.
