** Two-compressor dehumidifier would normally have paired-up two outdoor condensers of respective size
(one per compressor). For example, PCP0808 would have double-condenser, composed of two NC-B (see Pic.C.4.C,
Fig.1).
Air Conditioning Options - Fluid Coolers (OAFC).

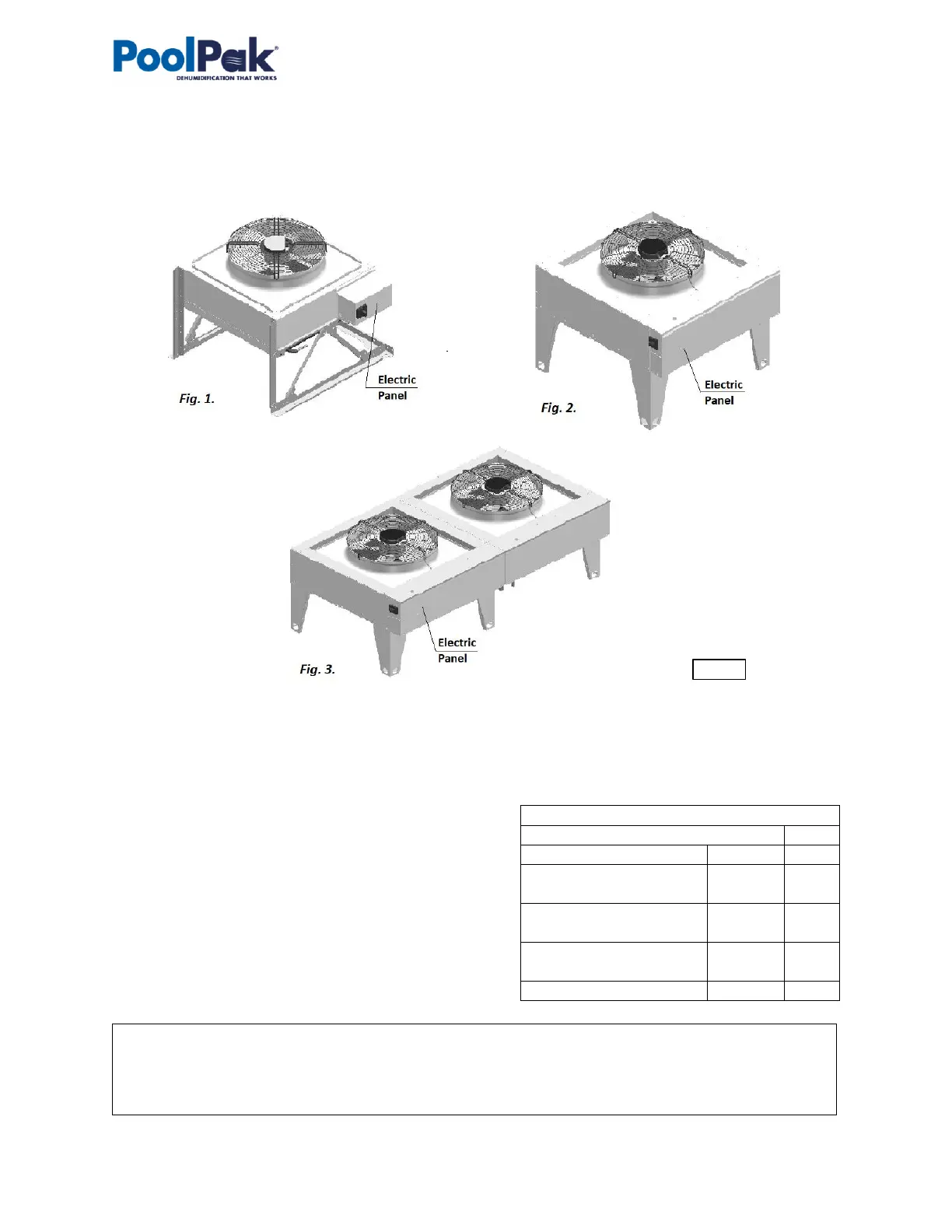

Basic views of standard fluid coolers are shown on Pic.C.4.F (below); standard combinations of the dehumidifier
and respective fluid coolers (based on their capacities) are shown in Table FC.1.
* Table FC.1 shows standard dehumidifier and cooler
combination; depending on number of factors, dehumidifier
may have different cooler provided with it - refer to the
dehumidifier’s submittal documentation for more details.
** The pump package is optional - the fluid cooler may
be provided without it.
Table FC.1. Dehumidifier-FC Combination*
Dehumidifier – Fluid Cooler**
Fig.#
PCP0800 – PCP1200
NG-Z-1
4
PCP1400 – PCP2600
PCP0808 – PCP1212
NG-V-0
5
PCP3000 – PCP4000,
PCP1414 – PCP1818
NG-V-11
6
PCP4500 – PCP5000,
PCP2626 – PCP4040
NG-V-12
7
PCP4545 – PCP5050
NG-V-22
8
Pic. C.4.C
Attention! Equipment Clearances!
Proper clearances should be maintained for adequate airflow and heat rejection! Generally, up to 36” side and
96” top clearances are required. For more information on clearances as well as equipment dimensions and other
details, refer to the submittal documentation.
