8
Wiring:
Power must be shut o at the circuit breaker before performing any wiring. Be sure to
follow local and NEC/CEC electrical codes. The system has been designed to easily
wire into typical in- ground pool systems. To provide safe operation, the unit must be
properly grounded and bonded.
Bonding:
A lug used for bonding is attached to the bottom of the Control Module. The Control
Module must be bonded with an 8 AWG copper wire to the pool bonding system.

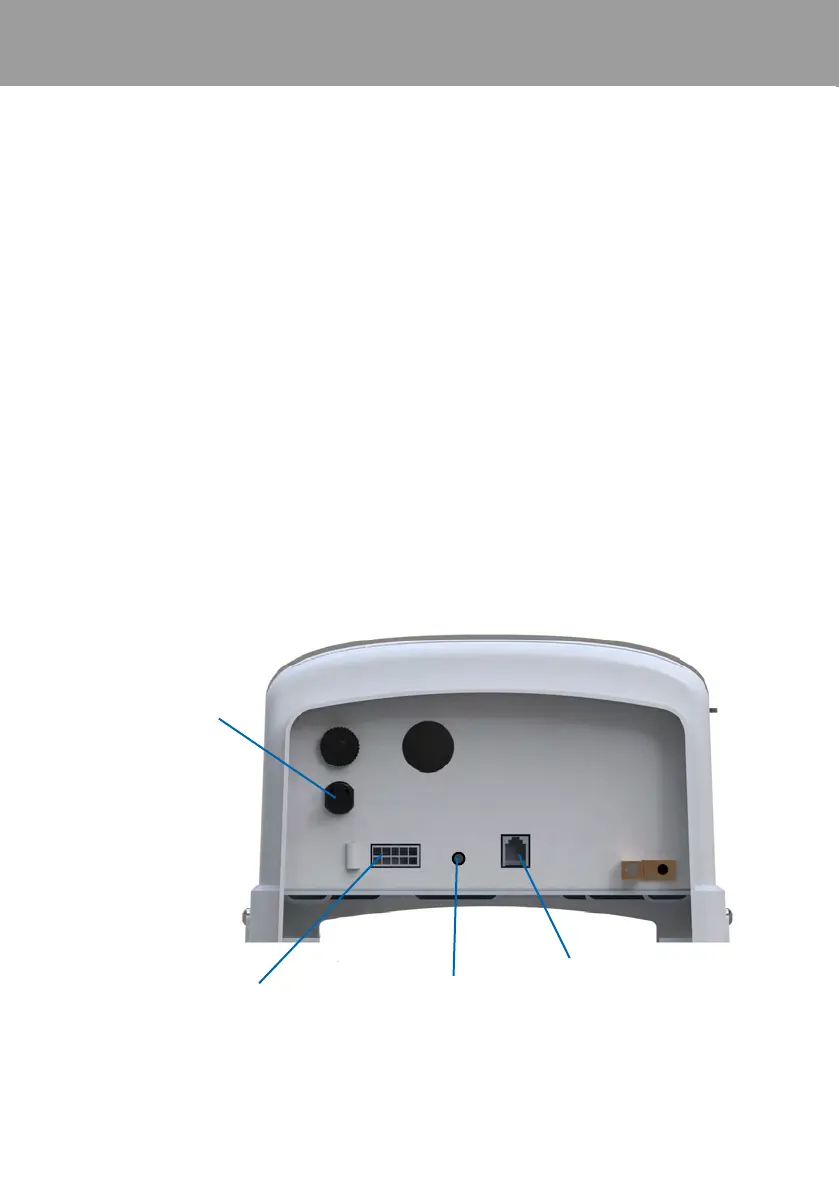

Electrolytic Cell and Flow Switch Connections:
The Cell and Flow Switch cables have easy plug-in connectors, which attach easily to
the Control Module. Refer to the diagram below for the location of these connections.
Install at a height of 1.60m and out of reach of children.
4. INSTALLATION
Power
Cord
Cell cable
limit switch
contact
ow switch
connector
