9
4. INSTALLATION
Wiring to Power Source:
The Control Module comes with an un-terminated Power Cord (AC Input) which is
typically connected to an external timer, which will turn the pump and Control Module
on and o together. Have the Control Module wired to the load side of the timer by a

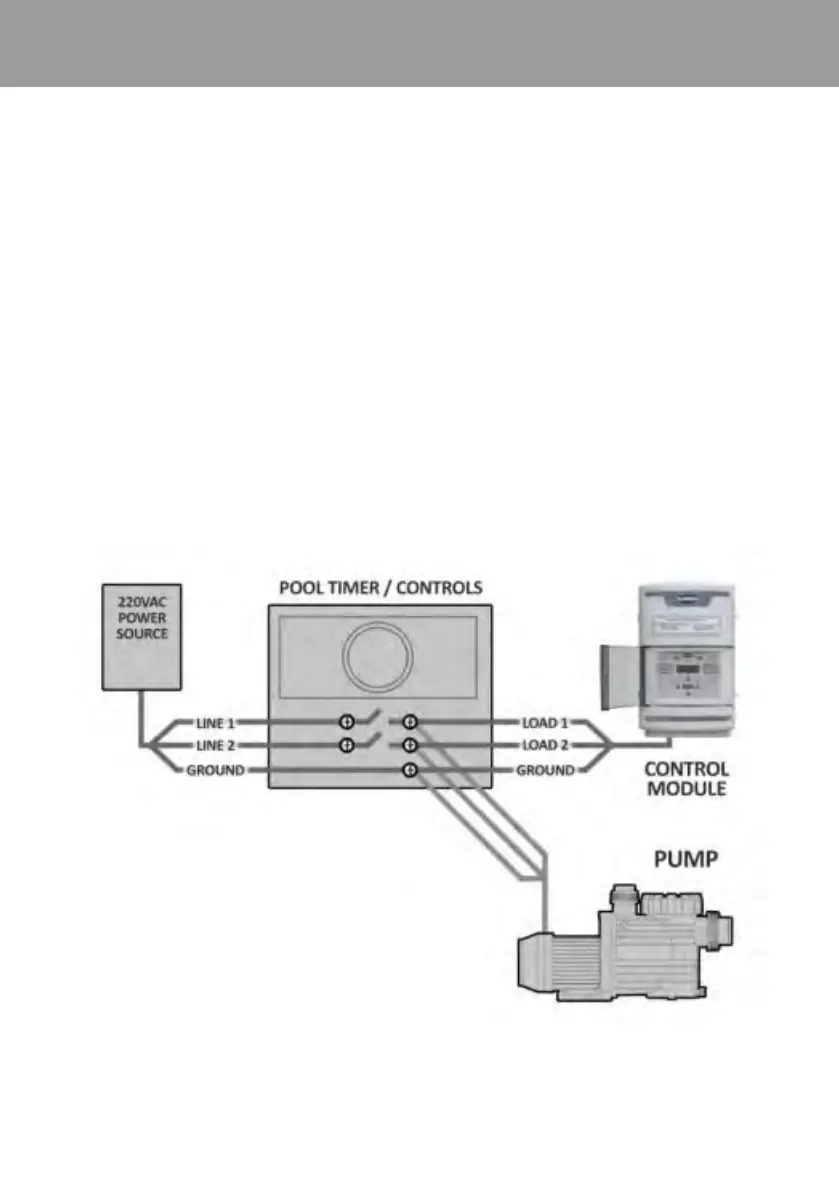

qualied person. See the following diagram for typical wiring. See voltage warning on
page 19.
The is shipped from the factory with a 240 VAC conguration. If 120VAC is needed,
move the internal jumpers as shown on page 19. If unsure, seek professional advice.
When used with variable-speed or other electronically controlled pumps, you may wish
to wire the Control Module directly to your power source. This will allow the pump to
determine when the Cell is energized or dormant by activation of the Flow Switch.
Always double-check the voltage of your power source. Connection to improper voltage
can: a) cause severe damage/harm, or b) cause lights and screen to power on without
system function.
