Pope 101PLT25FC - Assembly; Attaching the Upper Shaft with Engine to the Lower Bent Shaft Cutting Head; Attaching the Front Handle

Assembly
Attaching the Upper Shaft with Engine
to the Lower Bent Shaft Cutting Head
See Fig, 1, 2 and 3
Follow these steps to attach the two shafts together.
The lower bent shaft connects to the upper shaft with
engine by means of a coupler.
Loosen the knob on the coupler of the upper shaft 1.
(Fig. 1, Item 1).
Press the lever catch (Fig. 1, Item 2) and insert 2.
lower bent shaft into upper shaft with engine.
Ensure that the inner drive cable is seated by 3.
rotating cutting spool.
Ensure that the lug (Fig. 2, Item 6) is located in 4. the
hold in the lower shaft.
Retighten knob (Fig. 3)5.
To dismantle, use the steps above in reverse order.6.
Attaching the Front Handle
See Fig. 4, 5 and 6
Follow these steps to attach the front handle.
Loosen the wing nut on the fastening screw on the 1.
handle (Fig. 4, Item 1).
Remove the wing nut and the washer from the 2.
handle (Fig, 4, Item 2).
Remove the fastening screw from the handle (Fig. 3.
4, Item 3).
Push the front handle onto the upper shaft (Fig. 5).4.
Replace the fastening screw on the handle.5.
Replace the wing nut and the washer on the handle.6.
Tighten the wing nut (Fig. 6).7.

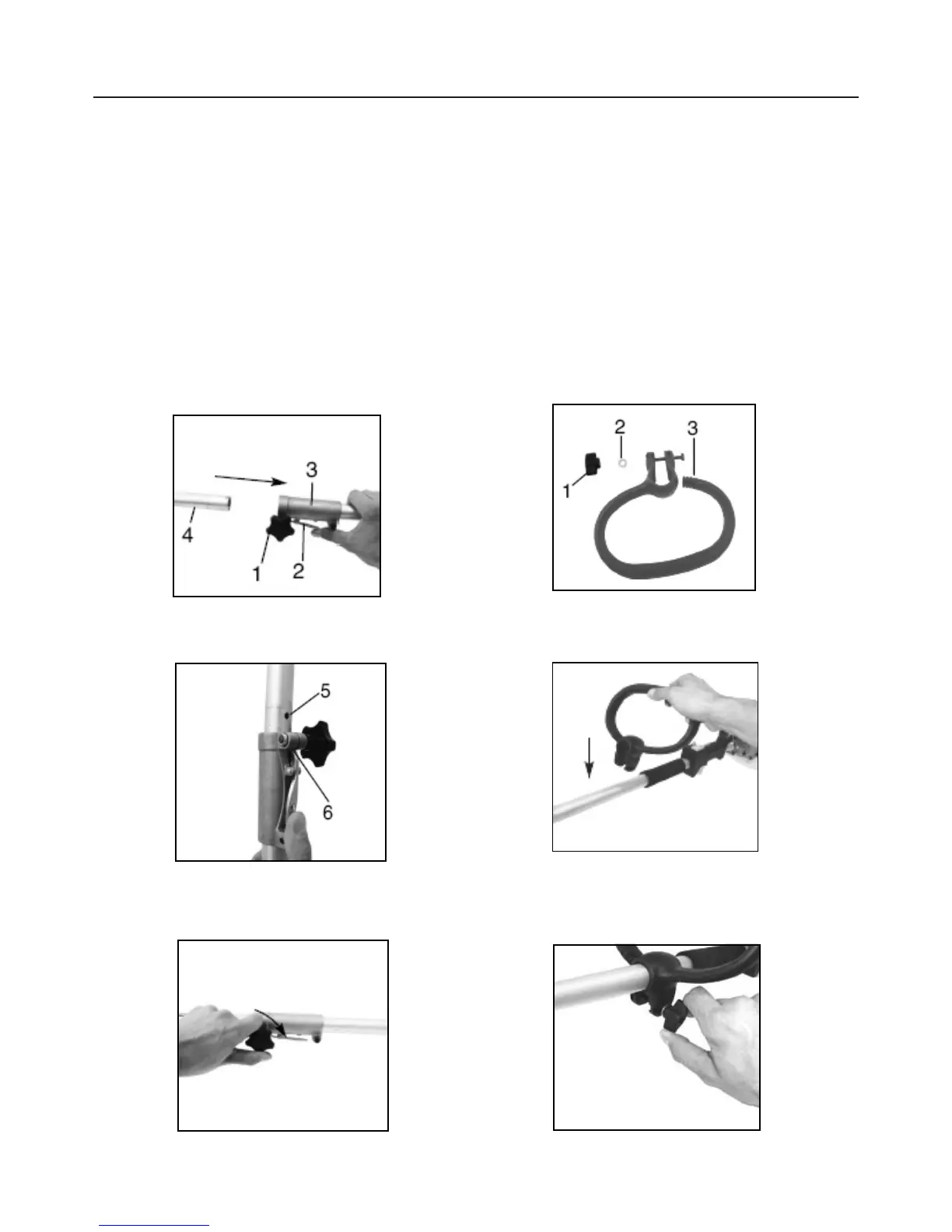

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
