Assembly

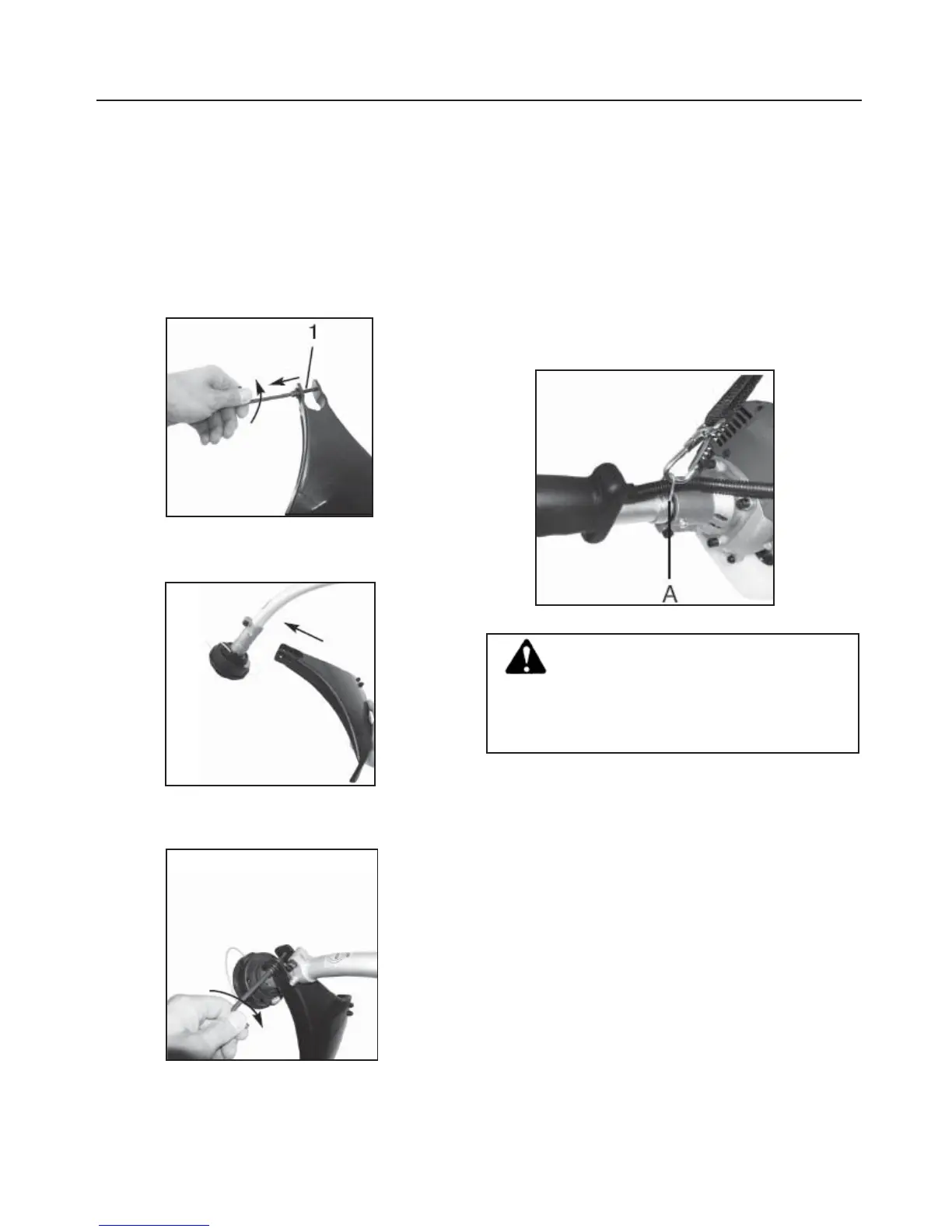

Attaching the Grass Defl ector Shield
See Figs. 7, 8 and 9
Follow these steps to attach the Grass Defl ector
Shield.
Using the Allen Key provided, loosen the 1.
fastening screw on the guard hood (Fig 7,
Item 1) and remove.
2.
Attach the grass shield to the base of the lower 3.
shaft (Fig. 8).
Screw the grass shield tightly in position with 4.
fastening screw (Fig. 9).
Fitting the Carry Strap
See Fig. 10
Follow these steps to fi t the carry strap.
The carry strap is intended to help you work safely and
ergonomically with your trimmer.
Hook the carry strap into the fastening eyelet (A).1.
Ensure the hook is securely fastened at the right 2.
operating height before attempting any work.
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Check that all moving parts operate smoothly
before you start your trimmer. Check that all
screws are securely fastened.
WARNING:
10
