Engine – Cayenne V8
Page 1.33
Cayenne Turbo Oil Pump
The Cayenne Turbo has an additional pressure oil line for turbocharger
lubrication. A turbocharger suction pump (-4-) is integrated in the main
oil pump for suctioning off the lubricating oil.
The control valve is fitted on the oil pump in such a way that it can be accessed
from the outside.
n
V

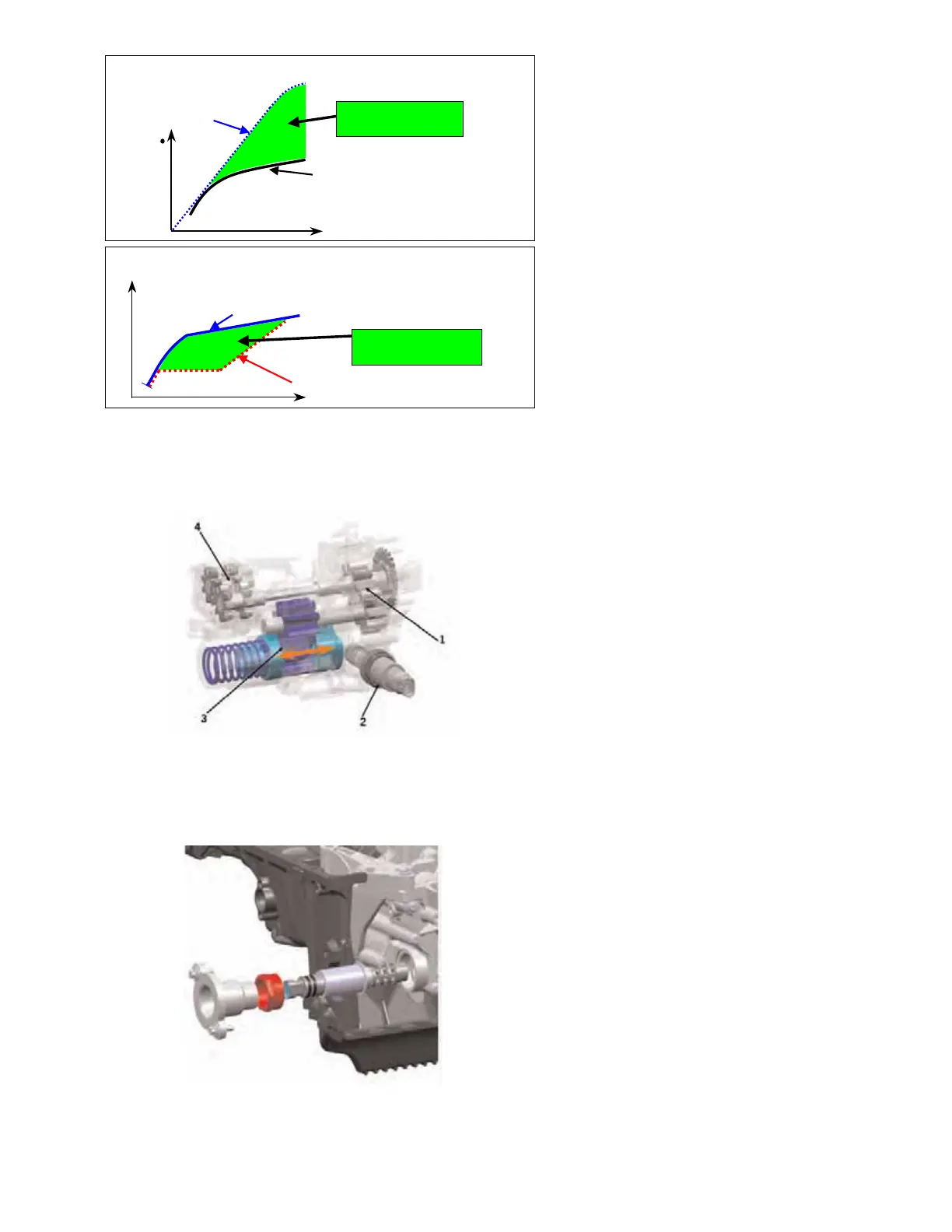

Reduction o f friction losses by variable oil flow
Engine oil displacement
= Delivery rating of oil flow regulating pump
Delivery rating of a
constant pump
Reduced friction losses
by controlled oil flow
Reduction o f friction losses by variable oil press ure
n
p_oil
Reduced friction losses
by pressure control
Pressure curve due to engine demand
Conventional pressure curve
due to delivery rating w/o pressure regulation
1 - Intake stage
2 - Control valve
3 - Variable pressure stage
4 - Turbocharger suction pump
